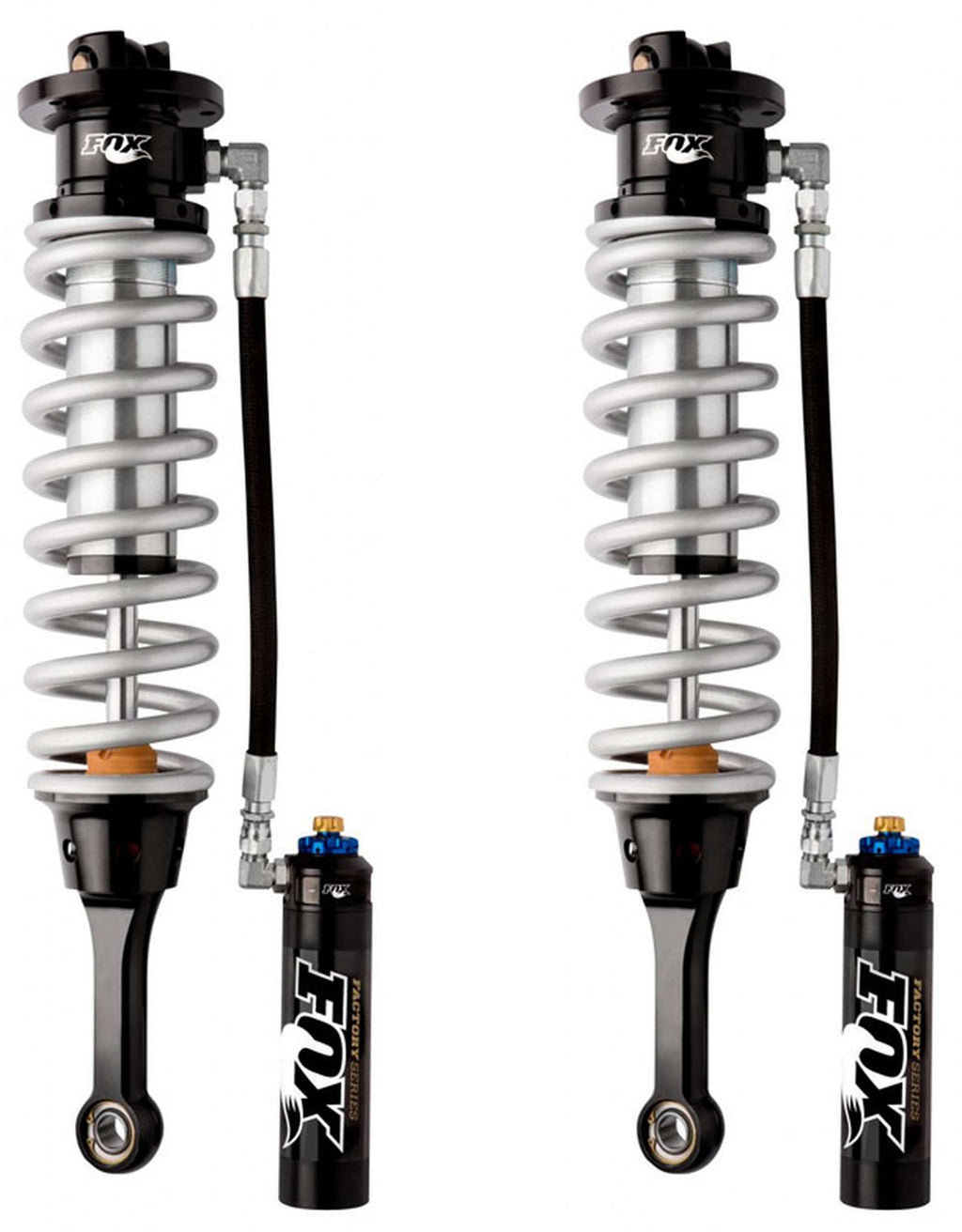

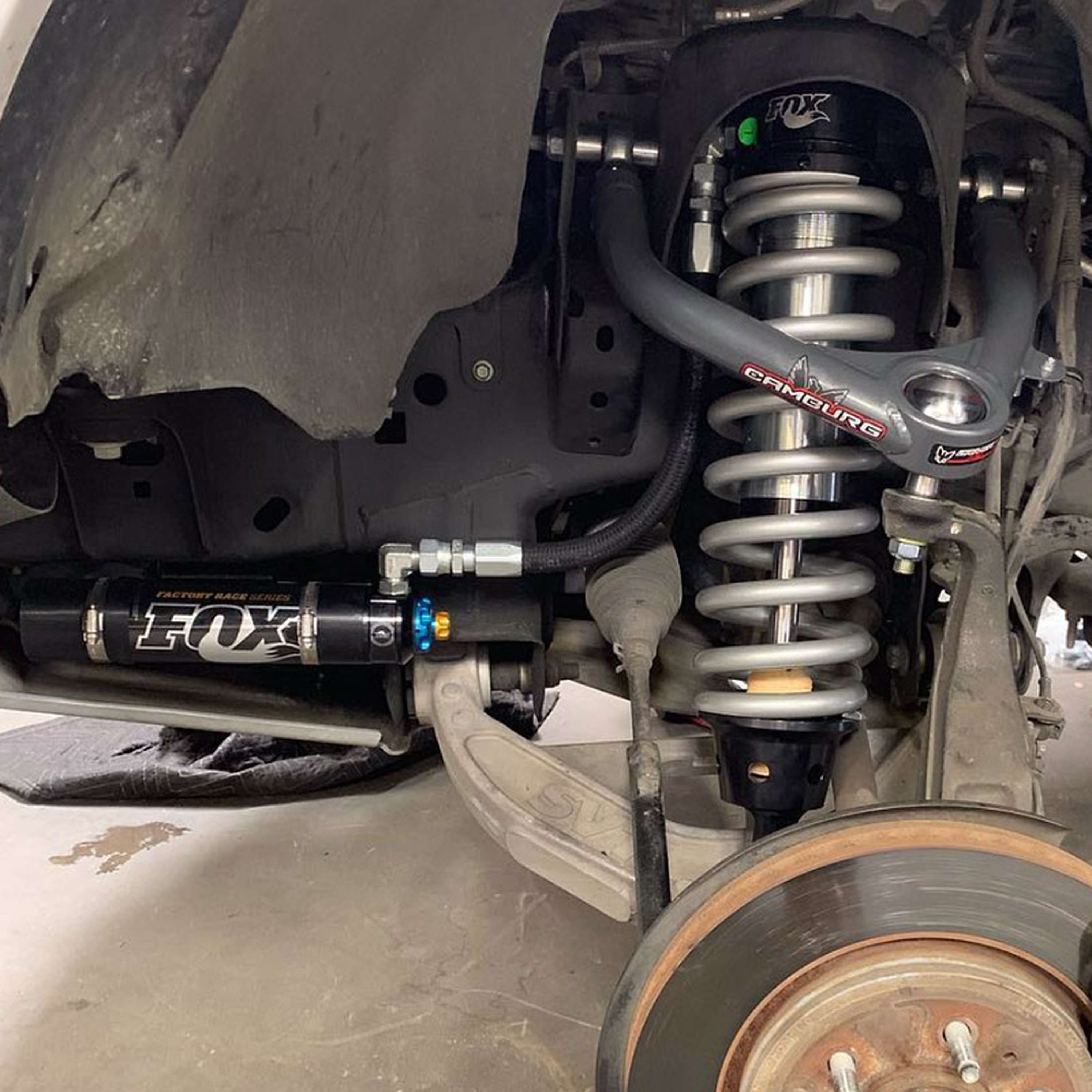

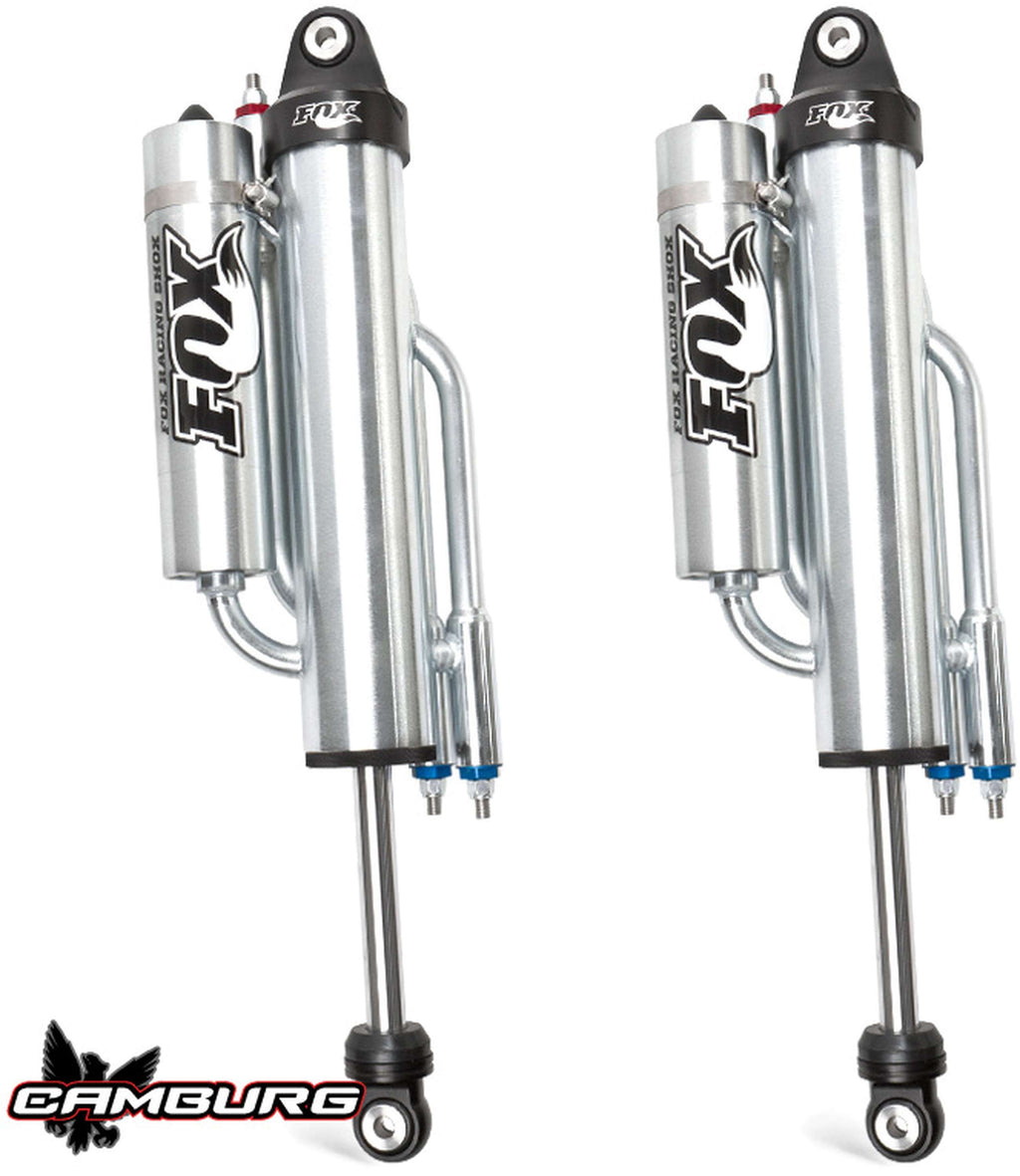

FOX's 3.0 Factory Series Coil-over Internal Bypass shocks are designed for racing and off-road driving. They have increased oil capacity and provide 60% more damping area compared to stock shocks. Made of heavy-duty steel with anodized billet aluminum components, these shocks offer a plush ride for normal off-road conditions and can ramp up damping force for extreme use. They are easily installed on factory mounts and come with an adjustable coil spring for preload and ride height. The shocks have large 2.5 inch remote reservoirs with -10 hose for improved cooling. The Dual Speed Compression (DSC) adjuster allows for precise tuning with twelve low-speed and ten high-speed compression levels. These shocks utilize components from FOX's race-winning Trophy Truck shocks, including Eibach springs, stainless steel shock shafts, PTFE-lined spherical bearings, racing oil, and high-temp Viton seals. In the rear, the SVT Raptor is equipped with FOX's FACTORY Series 3.0 Bypass shocks, which have three independently tunable bypass zones for complete ride control on any terrain. These shocks also feature 2.5 inch diameter Piggyback reservoirs, lined spherical bearings, racing oil, and Viton seals for exceptional performance and durability. Pairing these shocks with aftermarket leaf springs and bump stop kits further enhances the SVT Raptor's off-road capabilities. FOX's upper arms for the SVT Raptor are made with US 4130 chromoly tubing and heat-treated stainless steel hardware. They feature FK 1.50" uni-balls for increased adjustment, less flex, and precise travel. These upper arms improve wheel travel, correct camber and caster, and eliminate weak factory joints. They are made in the USA. Please note that these upper arms will not fit OEM stock wheels; a 1.25" uniball version is available for that purpose. With 0-2" of lift, these upper arms increase wheel travel and improve handling.

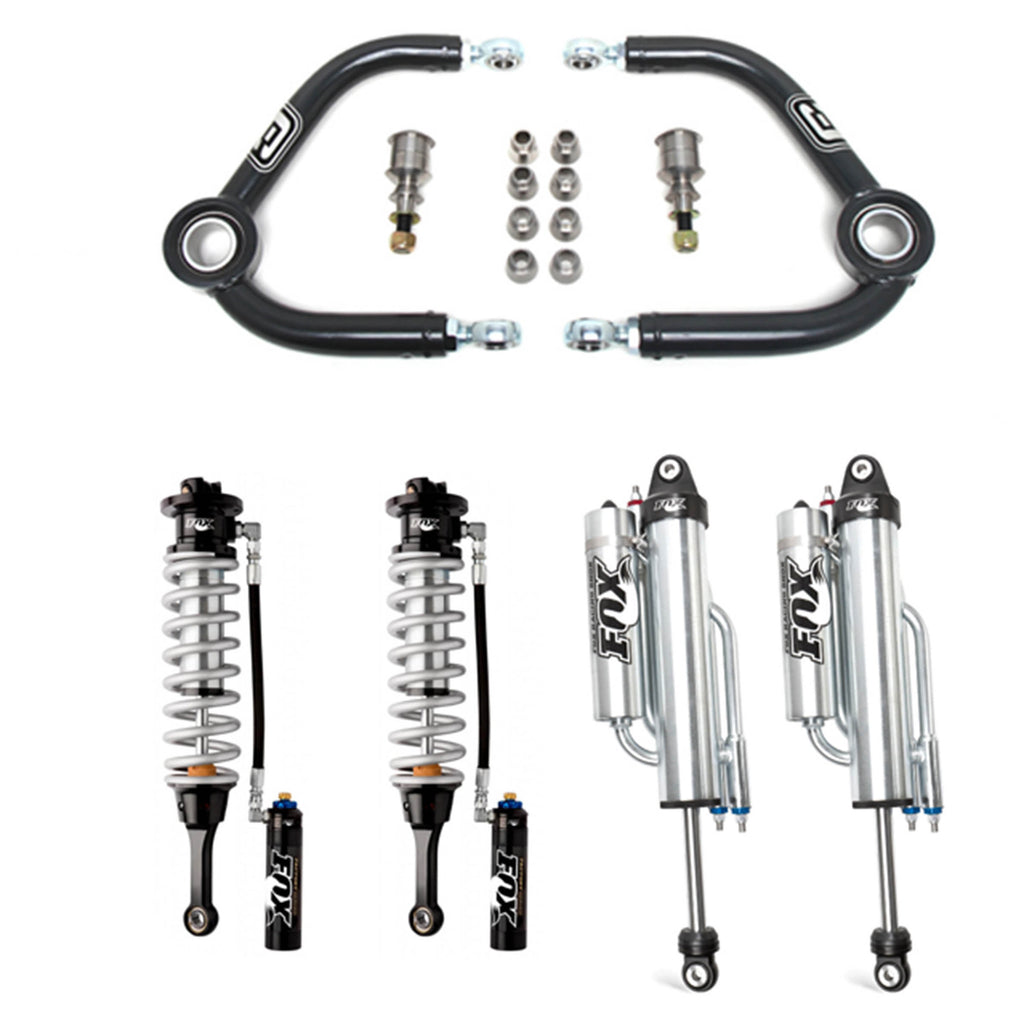

Camburg Ford Raptor 10-14 FOX 3.0 Factory DSC Kit
GJCN_CAM-110097-U
$8,198.90 USD
Description
Specifications:
| Description_ASC | [B@6a16bd87 |
| Description_DEF | [B@7f755207 |
| Description_DES | [B@74983ab7 |
| Description_EXT | [B@1614c6d2 |
| Description_FAB | [B@4931ab12 |
| Description_FAB | [B@1c812d59 |
| Description_FAB | [B@29f9e1fc |
| Description_INV | [B@19eb9047 |
| Description_KSW | [B@5d46c153 |
| Description_LAB | [B@48b8d447 |
| Description_MKT | [B@2ea83aad |
| Description_SHO | [B@6b84fe97 |
| Description_TLE | [B@23e6ed |
| Description_TTP | [B@e370042 |
| Description_TTP | [B@61253e7b |
| Description_TTP | [B@2d19148e |
| Description_TTP | [B@32929b4e |
| Description_TTP | [B@491b84e |
| Description_TTP | [B@4c8f8841 |
| Bushings Included | Yes |
| Coil Spring Color | Black |
| Coil Spring End 1 Type | Open |
| Coil Spring End 2 Type | Open |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 0 |
| Grade Type | Performance |
| Maximum Lift | 2 |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Spring Color | Silver |
| Spring Material | Spring Steel |
| Strut(s) Included | Yes |
| Bushing Color | Black |
| Coil Spring Material | Spring Steel |
| Control Arm Color | Black |

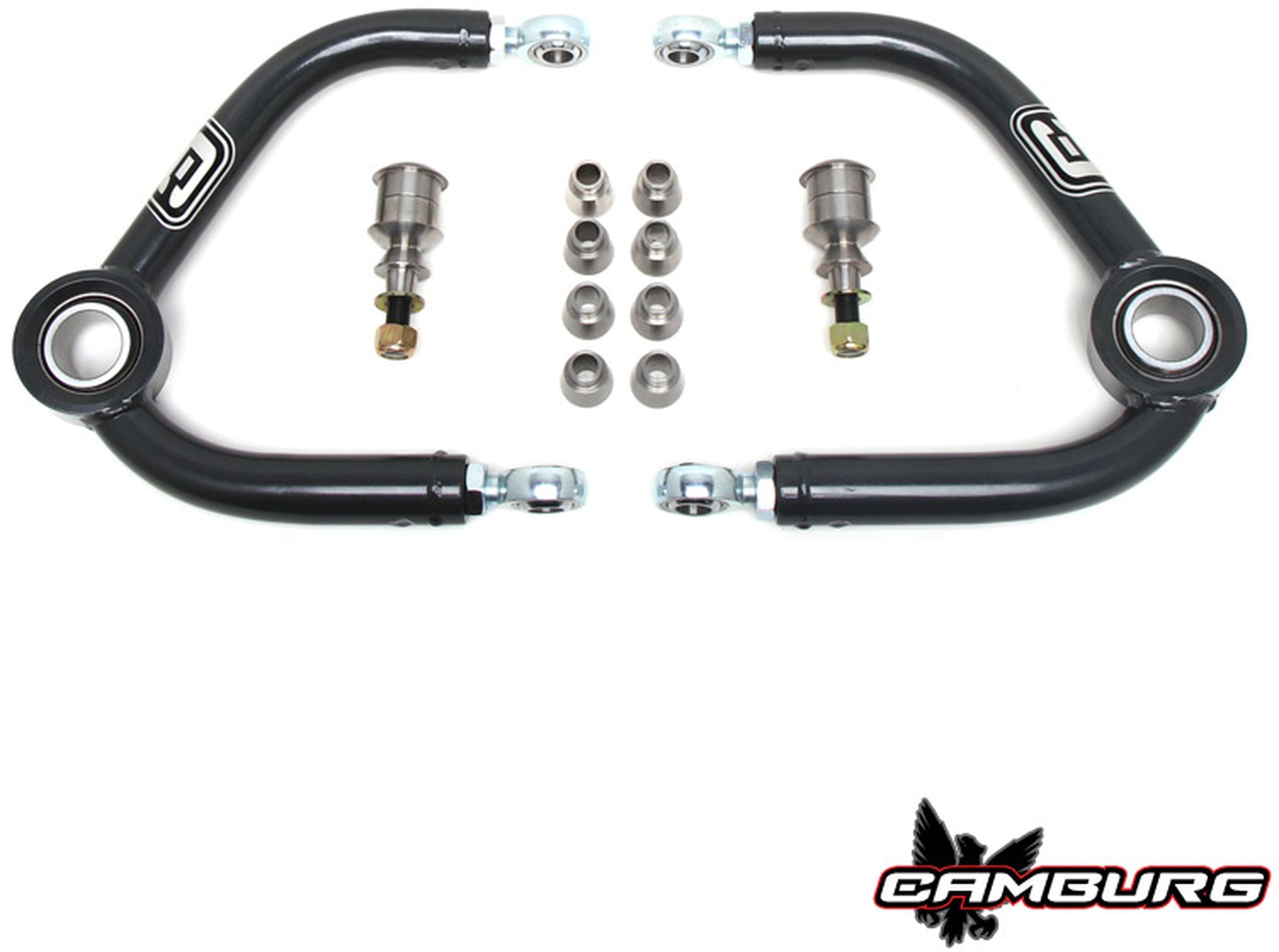

| Control Arm Type | Tubular |
| Dust Cover Caps Included | No |
| Front Shock Type | 3.0 Factory Series Coilover Internal Bypass |
| Front Springs Included | Yes |
| Hardware Included | Yes |
| Joint Type | Uniball |
| Lift | 2 |
| Load Rate | N/A |
| Prop 65 Y/N | No |
| Rear Shock Type | 3.0 Factory Series 3.0 Bypass |
| Rear Shocks Included | Yes |
| Rear Springs Included | No |
| Shock Brand | FOX |
| Spring Load | N/A |
| Spring Rate | N/A |
| Title | Camburg Engineering 2010-2014 Ford F-150 SVT Raptor Lift Kit CAM-110097-U |
