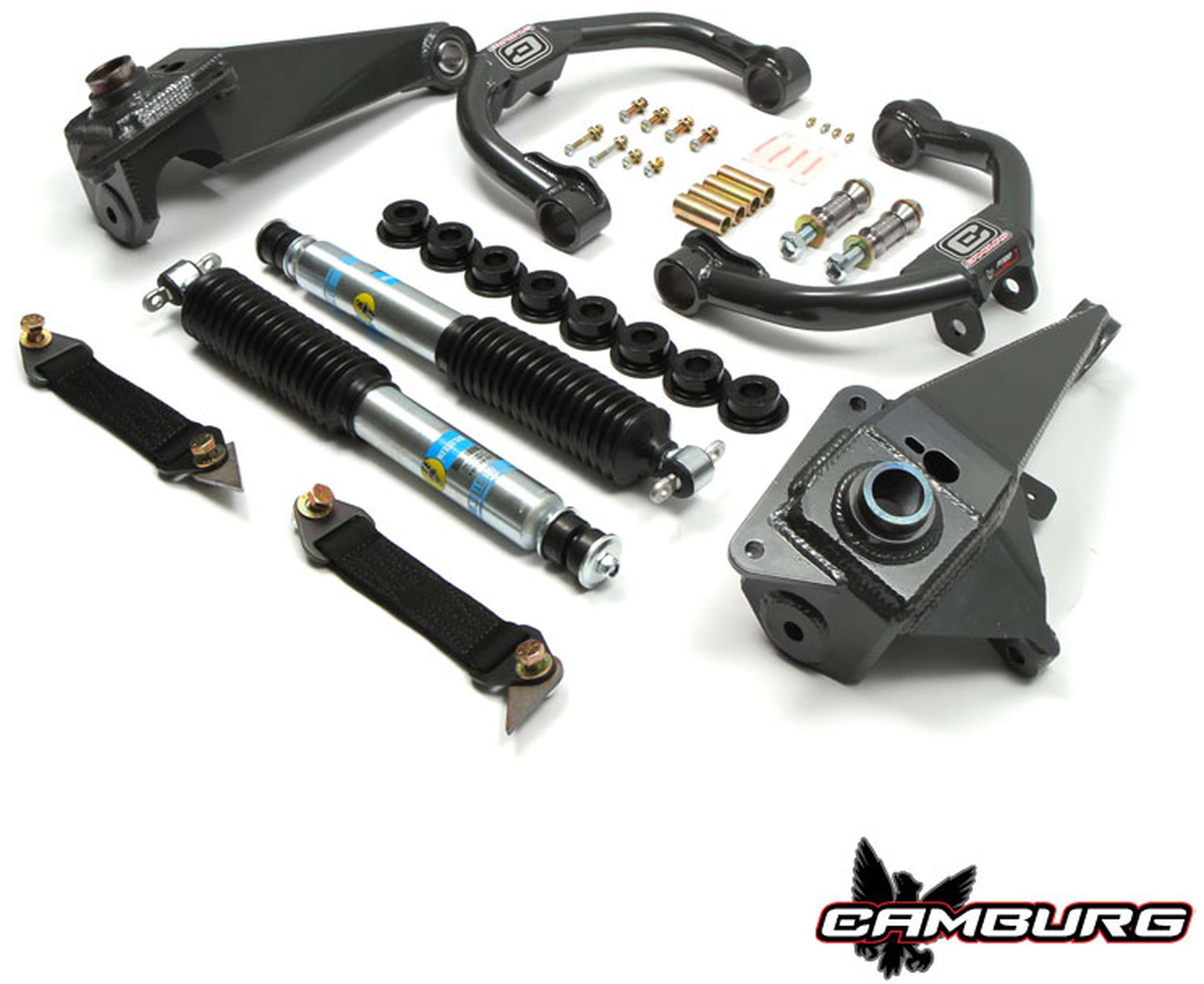

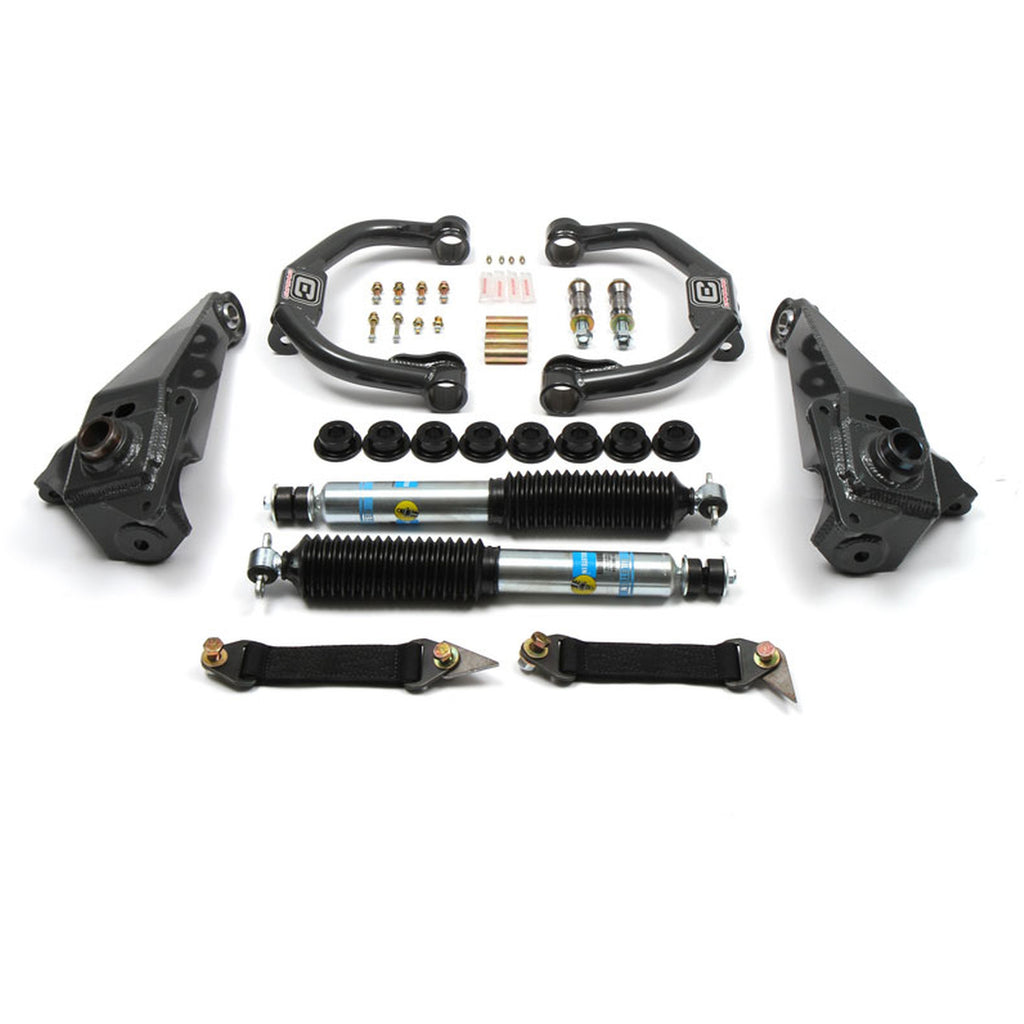

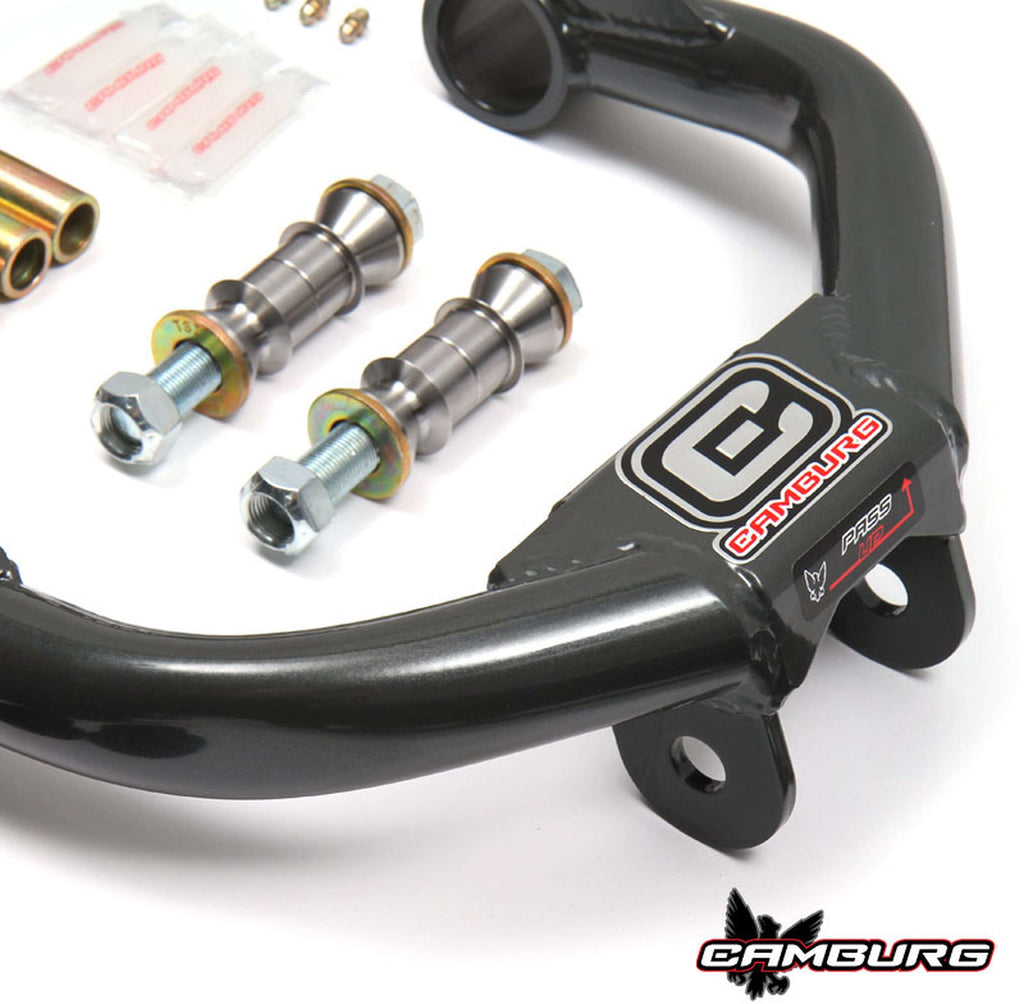

Our 6.0 kit for the RWD Ford Rangers set the bar years ago as the best performance kit available. The kit uses our 3" lift fabricated race spindles with a massive 1" vertical uniball that replaces the weak upper ball-joint that is prone to fail. This allows for 10" of useable wheel travel. The upper arms are made from 1.50" x.120 wall 4130 chromoly tubing and double shears the uniball. We use Bilstein 5100 series shocks for added control and are valved for this kit. By adjusting the torsion bars you can setup the front end with 4-6" of lift. Track width is  increased 1.5" per side giving you a wider stance for better stability and added wheel travel. This is why Fiberglass front fenders are highly recommended. We now include our weld-on upper frame gusset reinforcement kit. This kit fits RWD Rangers with torsion bars only. For coil spring trucks use our Ranger XLT 5.5 kits.** This also fits RWD 1995-2005 Explorers and 2001-2006 SportTrac’s with 11.25" brake rotors. Call for more info. 4-6" of lift 8" of wheel travel 1.5" wider per side Made in the USA Must re-use the factory OEM spindle snouts/pins. Aftermarket versions will not work Fiberglass front fenders required to run 33" tires.
Camburg Ford Ranger Edge 2wd 01-12 Entry Level 6.0 Kit
GJCN_CAM-110008
$2,707.99 USD
Description
Specifications:
| Bushings Included | Yes |
| Strut(s) Included | No |
| Coil Spring Color | Black |
| Coil Spring End 1 Type | Open |
| Coil Spring End 2 Type | Open |
| Coils Quantity Front | 0 |
| Coils Quantity Rear | 0 |
| Grade Type | Performance |
| Maximum Lift | 6 |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Spring Material | Spring Steel |
| Bushing Color | Black |
| Title | Camburg Engineering 2WD 01'-12' Ford Ranger Edge/Sport Bilstein 5100 Lift Kit (Single Shock) CAM-110008 |
| Coil Spring Material | Spring Steel |
| Control Arm Color | Black |
| Control Arm Type | Tubular |
| Front Shock Type | 5100 Series |
| Front Springs Included | No |
| Hardware Included | Yes |
| Joint Type | Uniball |
| Lift | 6 |
| Load Rate | N/A |
| Prop 65 Y/N | No |
| Rear Shock Type | 5100 Series |
| Rear Shocks Included | Yes |
| Rear Springs Included | No |
| Shock Brand | Bilstein |
| Shock Type | 5100 Series |
| Spring Load | N/A |
| Spring Rate | N/A |
| Description_ASC | [B@12249a01 |
| Description_DEF | [B@71afe663 |
| Description_DES | [B@6f639349 |
| Description_EXT | [B@35d9fe99 |
| Description_FAB | [B@31b9eb1 |
| Description_FAB | [B@d09fc4f |
| Description_FAB | [B@7e03cf7c |
| Description_INV | [B@4d4db13 |
| Description_KSW | [B@5be5332e |
| Description_LAB | [B@19cc5799 |
| Description_MKT | [B@79d413f3 |
| Description_SHO | [B@5bfa4399 |
| Description_TLE | [B@29f4678b |
| Description_TTP | [B@527f9db3 |
| Description_TTP | [B@b6d5784 |
| Description_TTP | [B@2823bfb |
| Description_TTP | [B@840cc1f |
| Description_TTP | [B@267c5aa1 |
| Description_TTP | [B@47cce89d |
