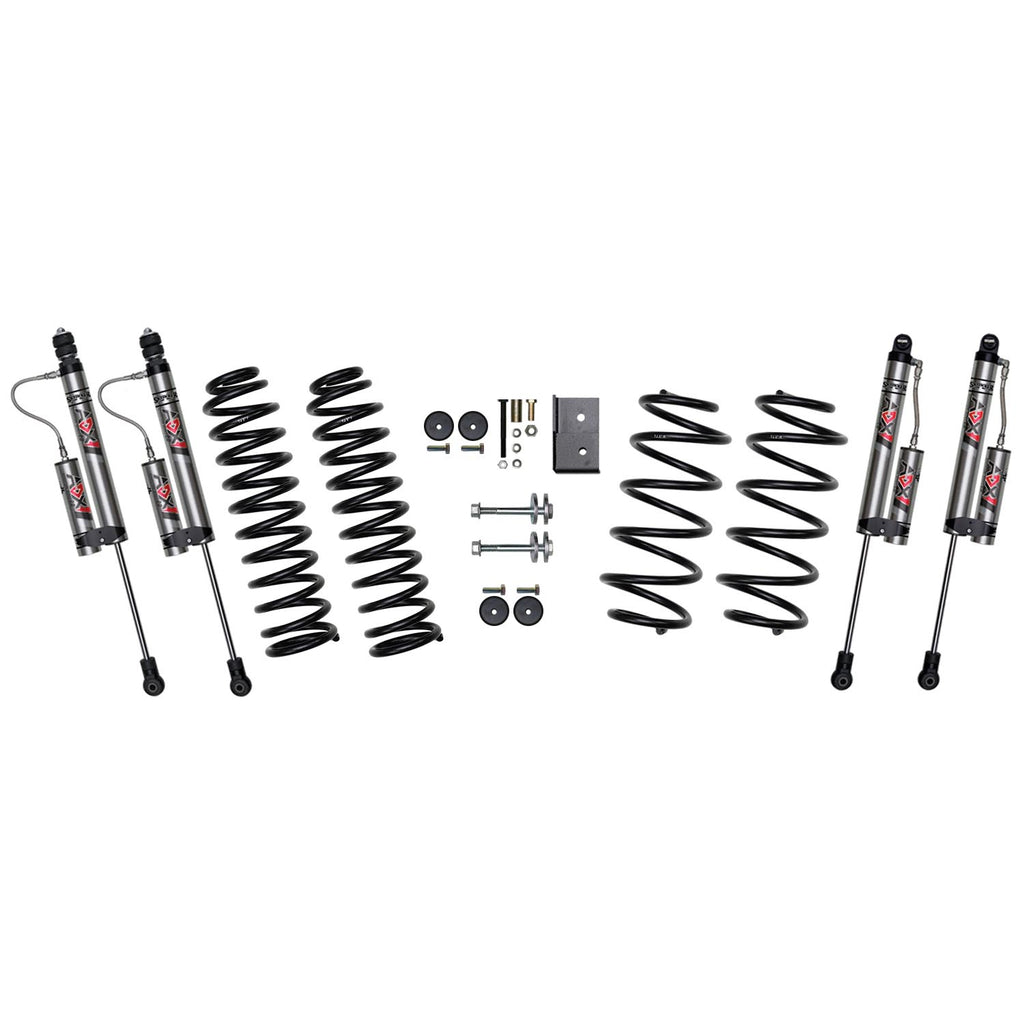

3 Inch Suspension Lift System With ADX 2.0 Remote Reservoir Shocks 97-06 Jeep Wrangler TJ Skyjacker

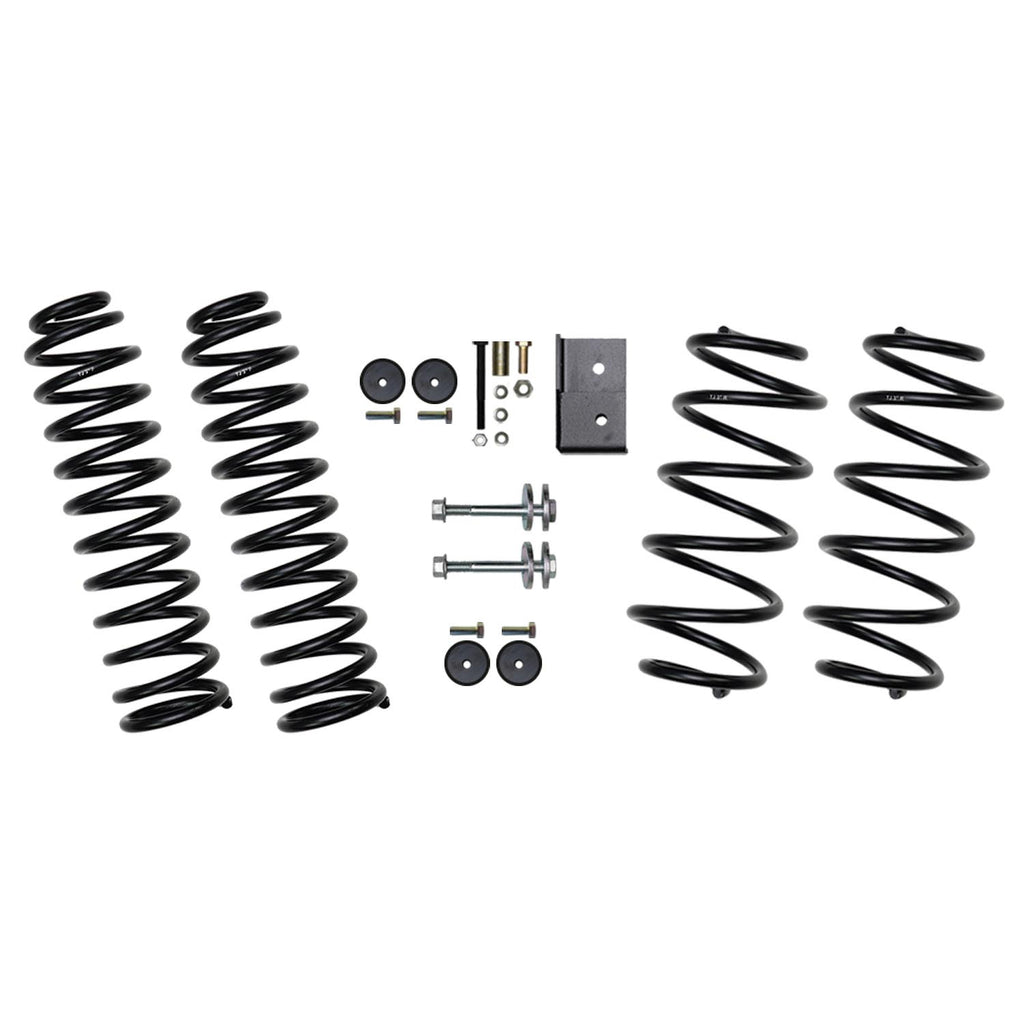

On the Wrangler TJ, coil springs and shocks are primary determining factors in ride quality and suspension performance. Skyjacker's legendary Softride technology engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life of the spring.

The process starts with hot wound 5160 material, a presetting process and advanced method of shot peening. Compressing the spring completely down to where the coils touch (solid height) is preset. This takes any fatigue or stress off the spring and eliminates sagging.

Each coil spring is blasted (shot peen) with hard steel pellets at very high velocities. Shot peening compresses the surface of the steel thereby increasing the tensile strength of the spring.

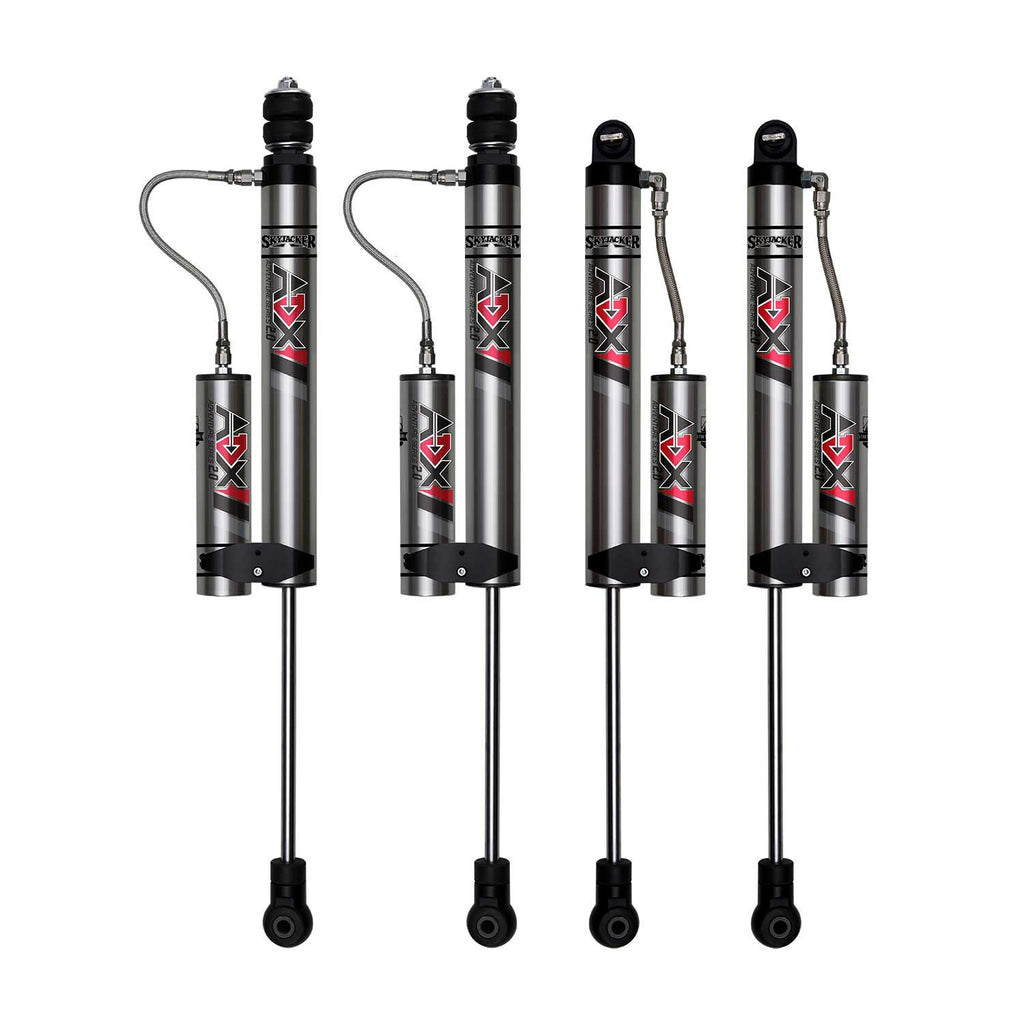

Shocks key role is to optimize your suspension by keeping your tires in contact with the terrain. Skyjacker's ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks deliver modern technology in the design with an innovative off-road race-inspired full-displaced valving system.

From Higher Speeds to a Crawl, Skyjacker's ADX 2.0 Works The external remote reservoir separates the nitrogen gas from the oil with an Internal Floating Piston (IFP). The majority of the reservoir contains pressurized nitrogen gas. The IFP prevents the gas and oil from mixing or foaming (cavitation).

Front\Rear Bump Stop Spacers bolt in between the upper frame and OEM bump stops. Correct bump keeps the suspension travel safely in check.

Rear Track Bar Lower Axle Mount Bracket mounts directly to the rear axle housing to correct the track bar angle. This re-centers the rear axle and improves suspension handling. The track bar bracket creates better handling and a lower roll center. Lower roll center means less side-to-side sway.

Eccentric alignment cam bolts correct caster and pinion angles (front lower axle and rear upper front). Works with OEM Electronic Stability Control (ESC) System. Comes complete with Bushings and High-Grade Mounting Hardware.
Features:

• 3 Inch Suspension Lift System With ADX 2.0 Remote Reservoir Shocks 97-06 Jeep Wrangler TJ
• Clears 32's with Ample Room for Off-Road Action.
• 32's Improve Your Off-Road Stance and Gain Ground Clearance.
• Softride Technology's High Standards Deliver High Quality.
• Softride Technology Enhances Spring Performance Proven Performance Spring Life, Comfort and Control.
• Yields More Lift in the Front for a More Level Stance.
• Long-Lasting Spring Life. Max Wheel Travel. Premium Ride.
• ADX 2.0 Reacts Quicker to Improve Handling and Stability.
• ADX 2.0 Aluminum Monotube Provides Better Heat Dissipation.
• ADX 2.0 Teflon Banded Piston's True Reaction Adds Stability.
• IFP Technology Provides Quickest Shock Reaction Time Ever.
• Aggressive Look. Impressive Performance. Great Ride.
