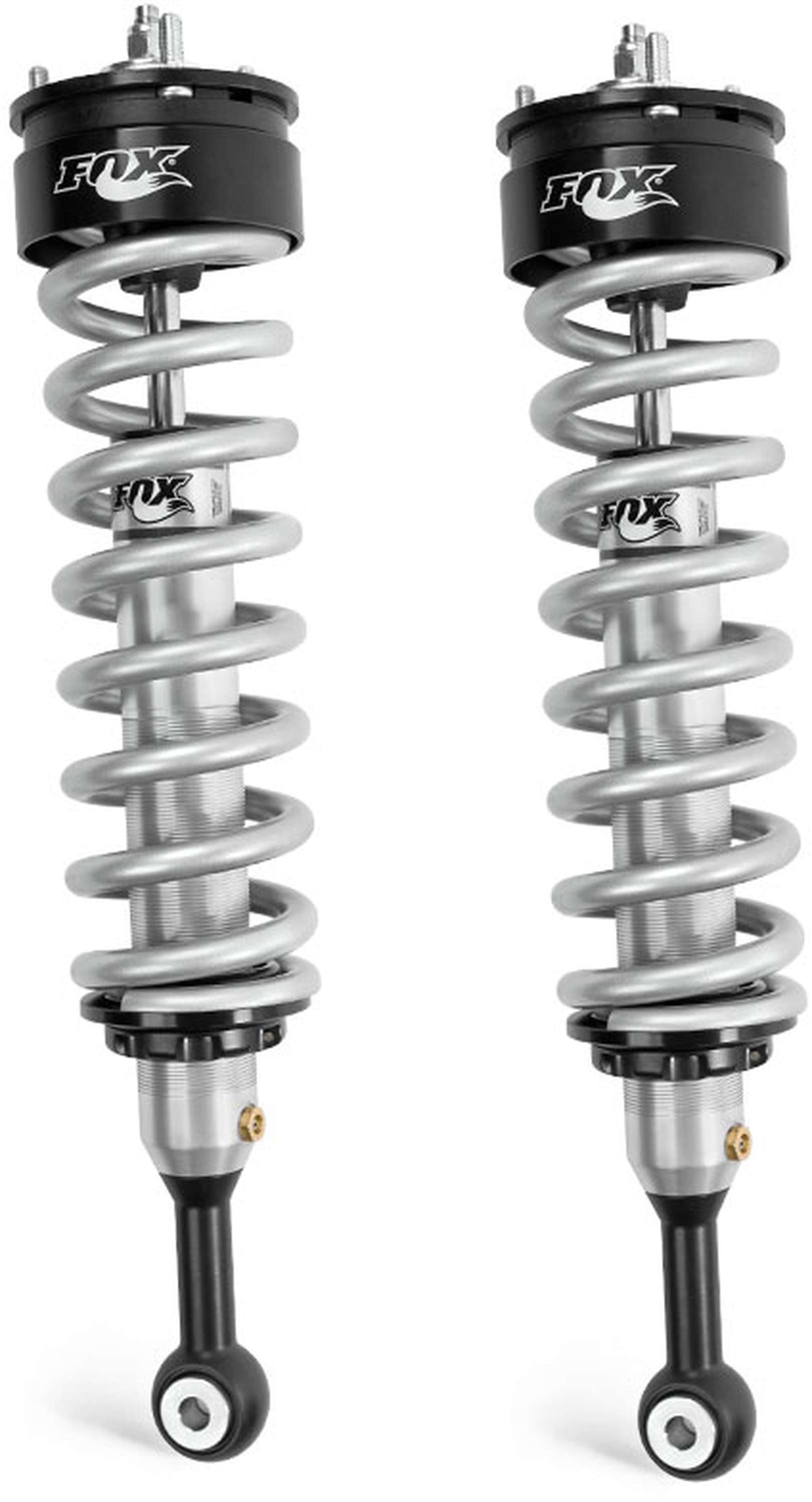

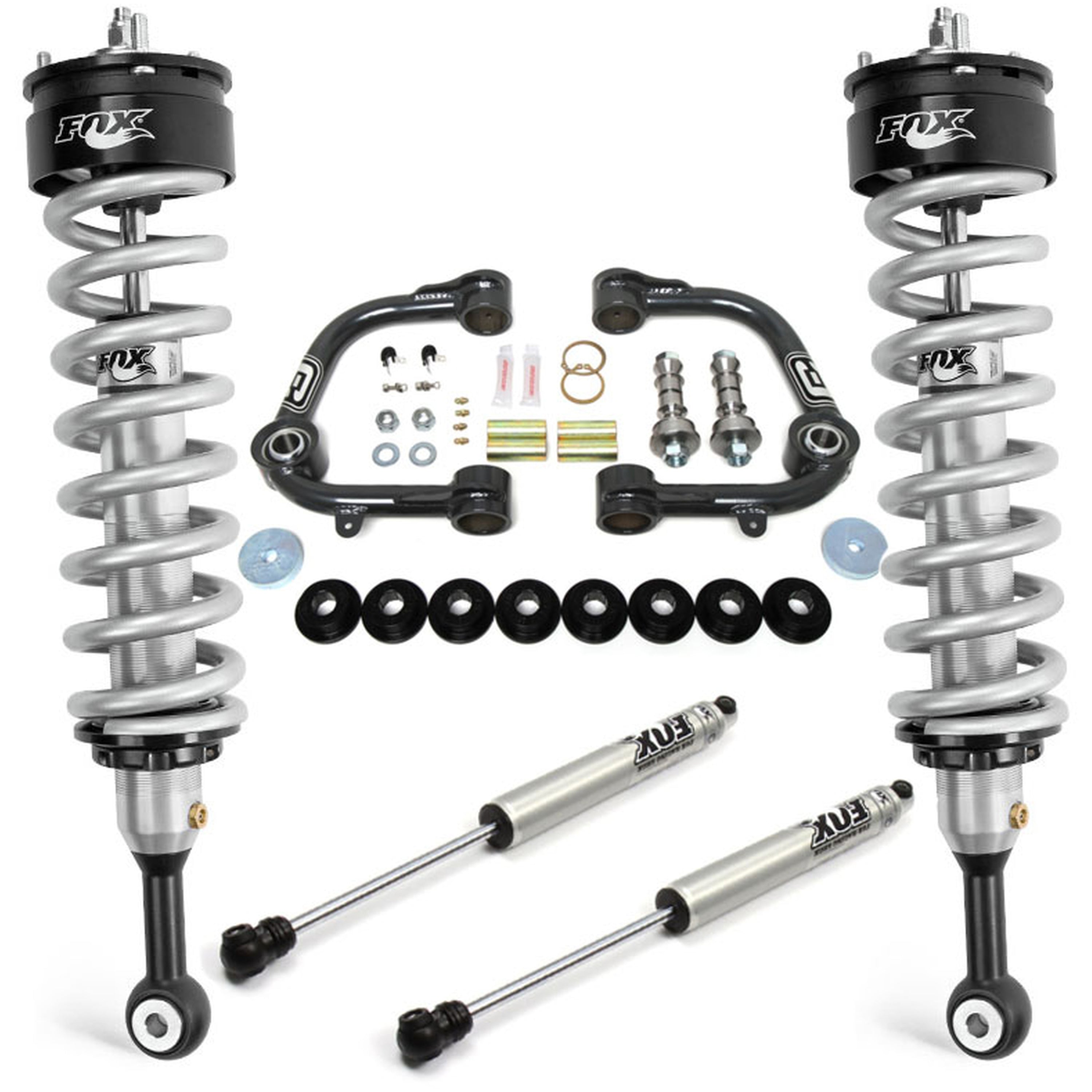

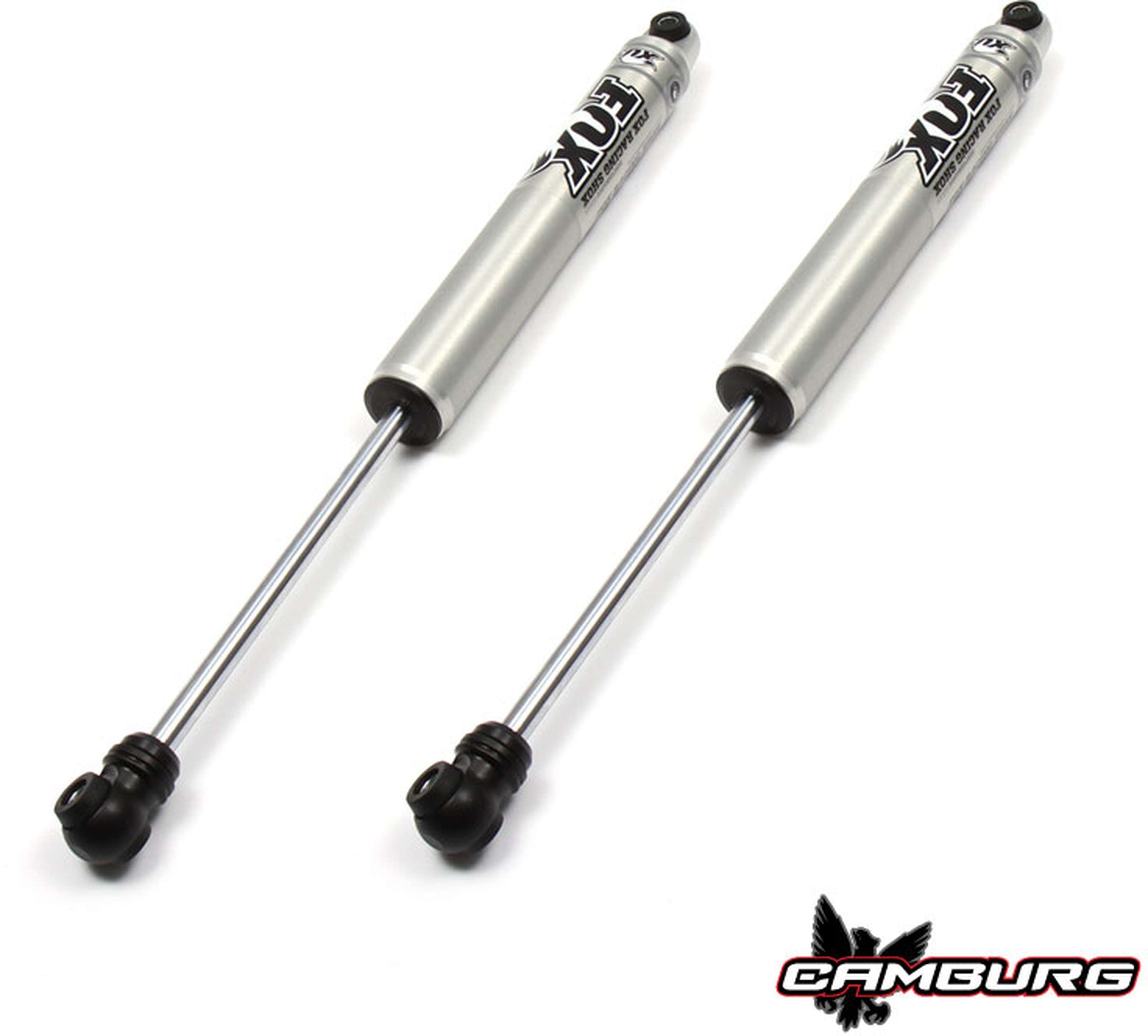

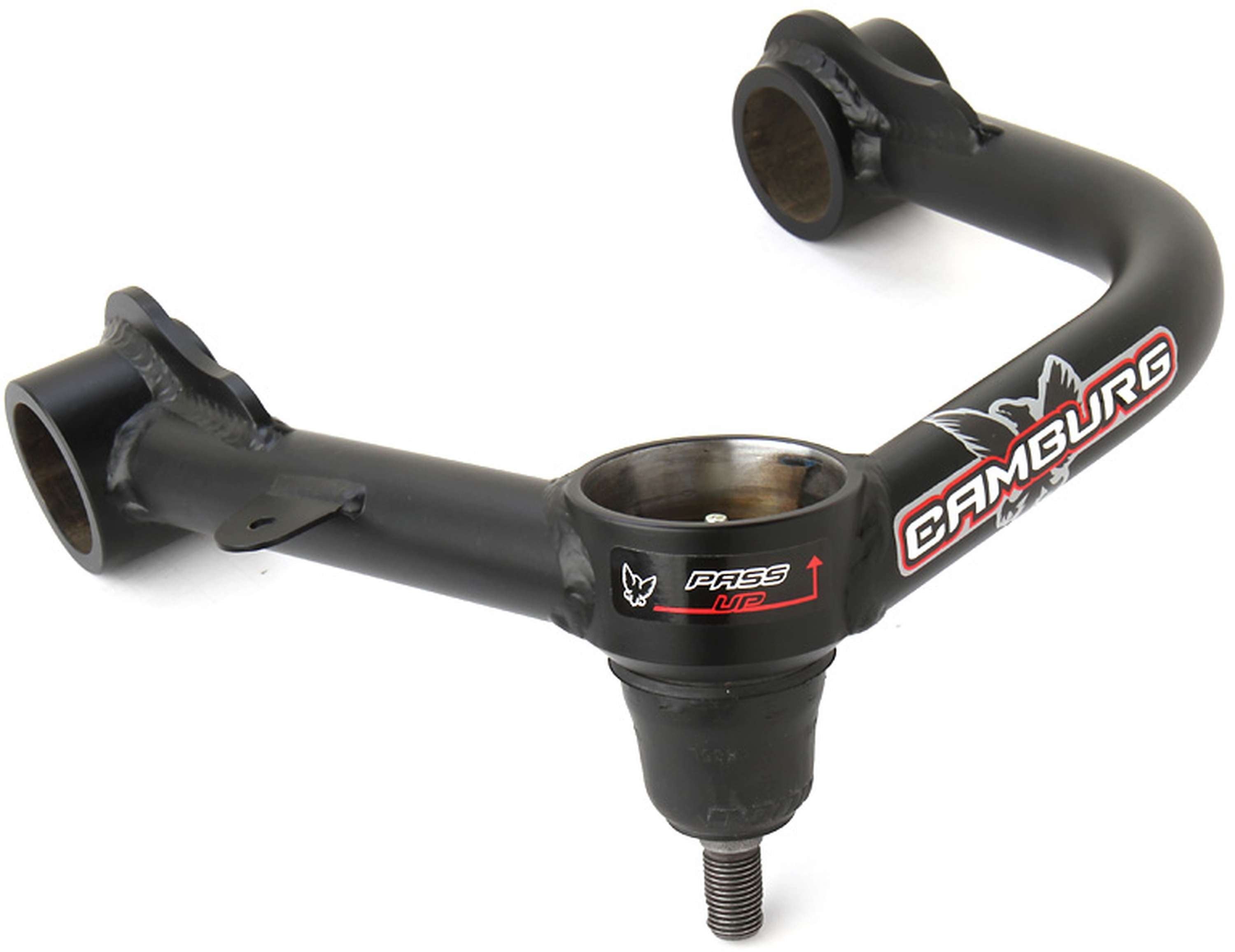

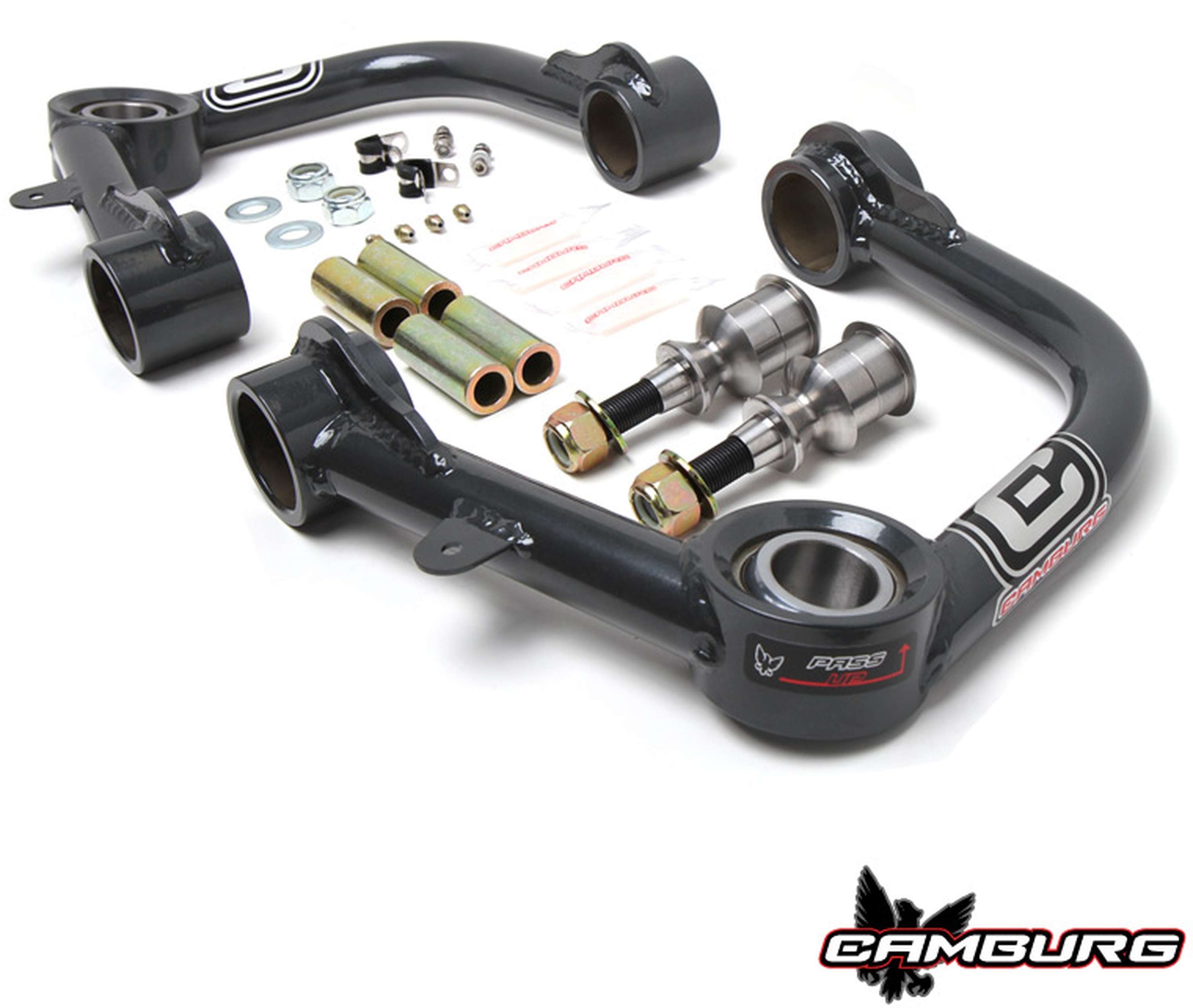

Our Camburg FOX 2.0 Trail Series kit is a suspension system for Toyota 4-Runner. It includes FOX 2.0 Performance Series IFP Coilovers for 0-2 inches of lift and increased wheel travel. The shocks have a smooth-bore, clear coated, zinc plated, honed seamless alloy body, black anodized 6061-T6 billet aluminum components, and a 5/8" hard chrome plated heat treated alloy steel shaft. They also have an internal reservoir design to separate shock oil from high-pressure nitrogen. The kit also includes upper arms to address limitations of stock arms, with options for tubular uniball or tubular X-joint arms. These arms increase wheel travel, improve strength, and correct geometry for better alignment and handling. In the rear, the kit includes FOX 2.0 Performance Series shocks with a larger aluminum shock body for better performance offroad and a firmer ride. For X-Reas equipped models, the short hydraulic hoses connecting to the OEM shocks need to be removed and drained. Depending on various factors like wheel size, tire size, lift amount, etc., trimming of plastic inner fenders and modification of the body mount behind the front tires may be required to prevent tire rubbing.
Trail Series Performance Lift Kit w/ FOX 2.00"
GJCN_CAM-310120-U
$2,798.80 USD
Description
Specifications:
| Description_ASC | [B@6dcd4362 |
| Description_DEF | [B@49a64527 |
| Description_DES | [B@790d3e7 |
| Description_EXT | [B@59b08c78 |
| Description_FAB | [B@5e61127f |
| Description_FAB | [B@2595fbe9 |
| Description_FAB | [B@241b0b57 |
| Description_INV | [B@799590e0 |
| Description_KSW | [B@2fb18747 |
| Description_LAB | [B@25f16beb |
| Description_MKT | [B@594c8db1 |
| Description_SHO | [B@c8b04e8 |
| Description_TLE | [B@2f232181 |
| Bushings Included | Yes |
| Coil Spring Color | Silver |
| Coil Spring End 1 Type | Open |
| Coil Spring End 2 Type | Open |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 0 |
| Grade Type | Performance |
| Maximum Lift | 2 |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Spring Color | Silver |
| Spring Material | Spring Steel |
| Strut(s) Included | Yes |
| Bushing Color | Black |
| Coil Spring Material | Spring Steel |
| Control Arm Color | Black |
| Control Arm Joint Cover Included | No |
| Control Arm Type | Tubular |
| Dust Cover Caps Included | No |
| Front Shock Type | 2.0 Performance Series IFP Coilovers |
| Front Springs Included | Yes |
| Hardware Included | Yes |
| Joint Type | Uniball |
| Lift | 2 |
| Load Rate | N/A |
| Prop 65 Y/N | No |
| Rear Shock Type | 2.0 |
| Rear Shocks Included | Yes |
| Rear Springs Included | No |
| Shock Brand | FOX |
| Spring Load | N/A |
| Spring Rate | N/A |
| Title | Camburg Engineering 2010-2024 4Runner | 2010-2014 FJ Cruiser FOX 2.0 Performance Lift Kit CAM-310120-U |
