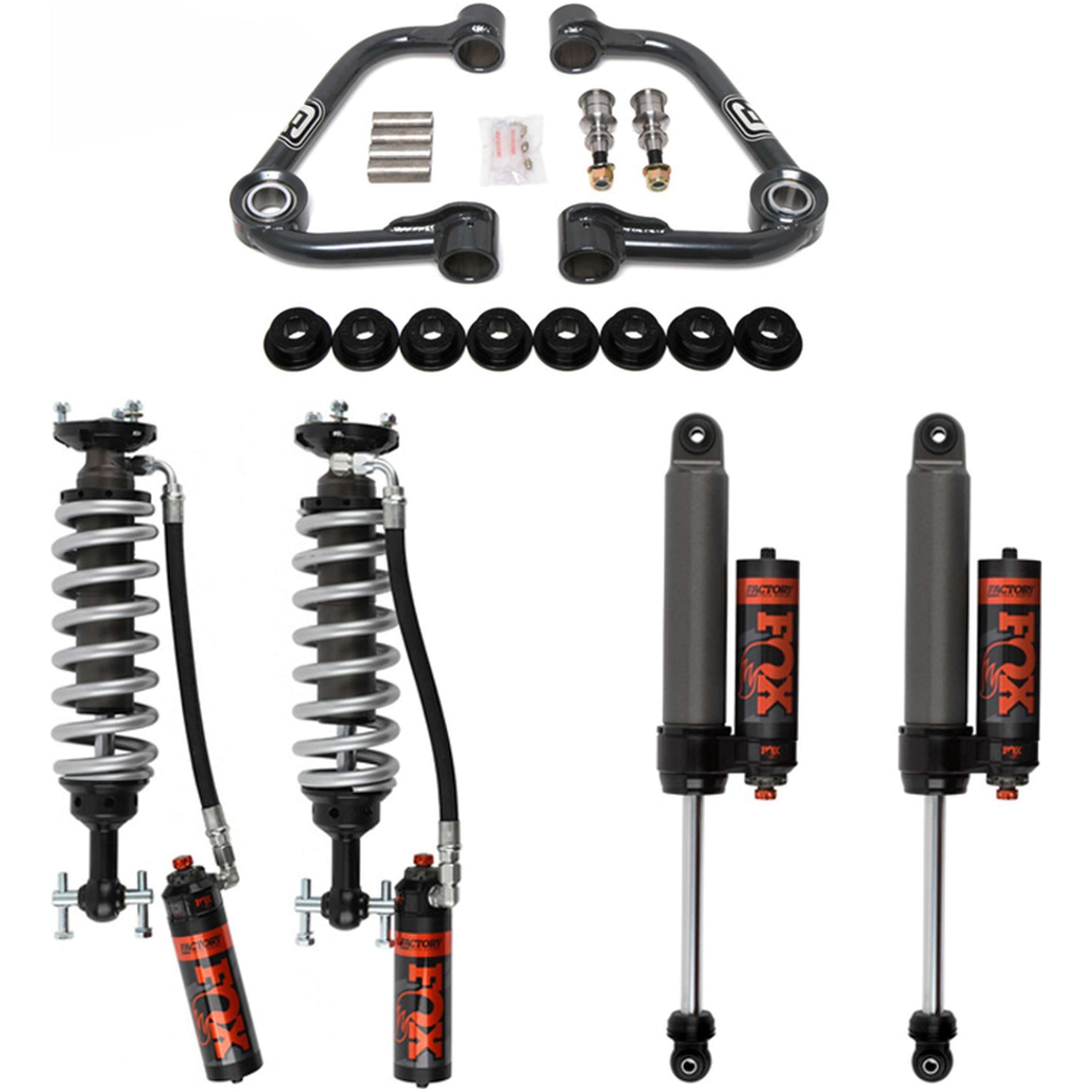

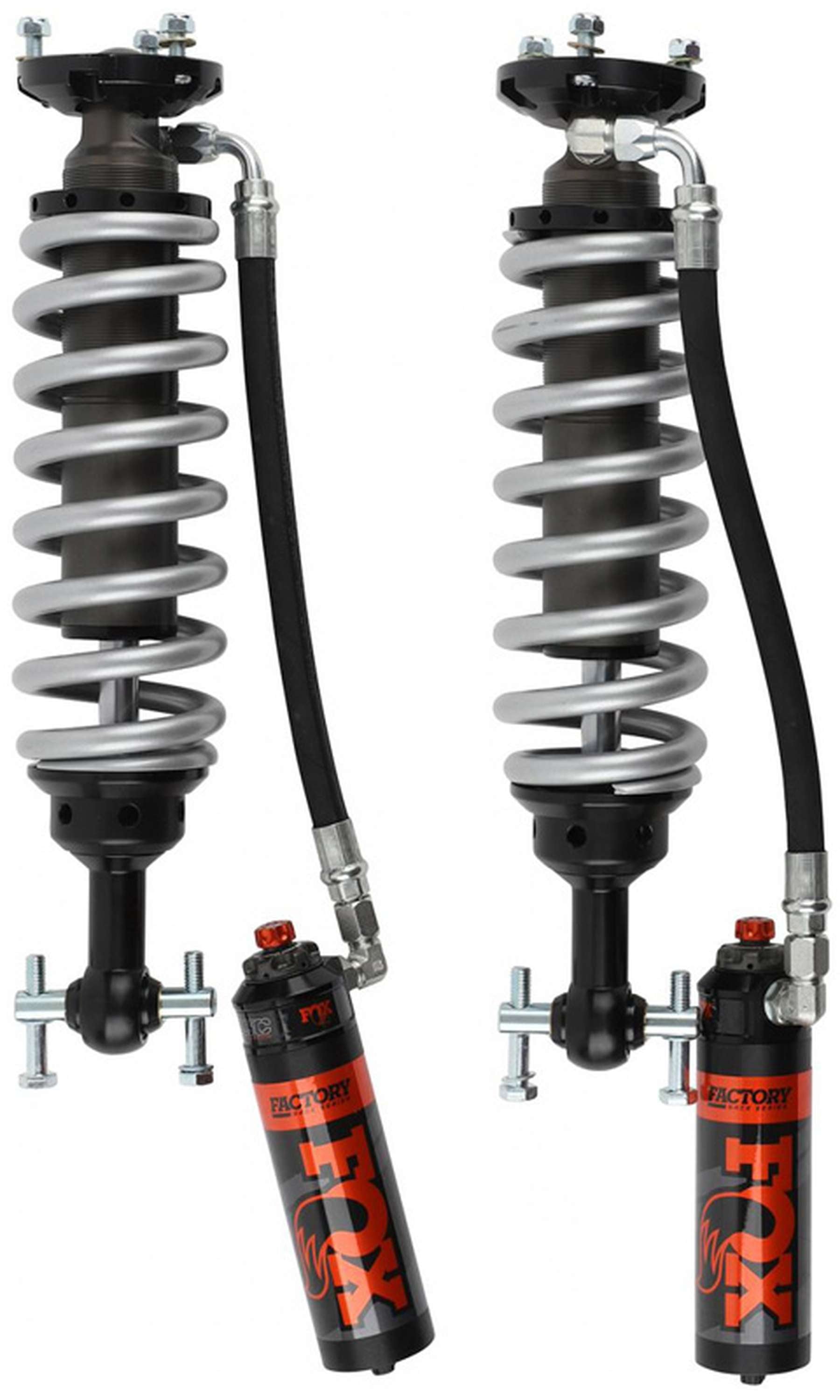

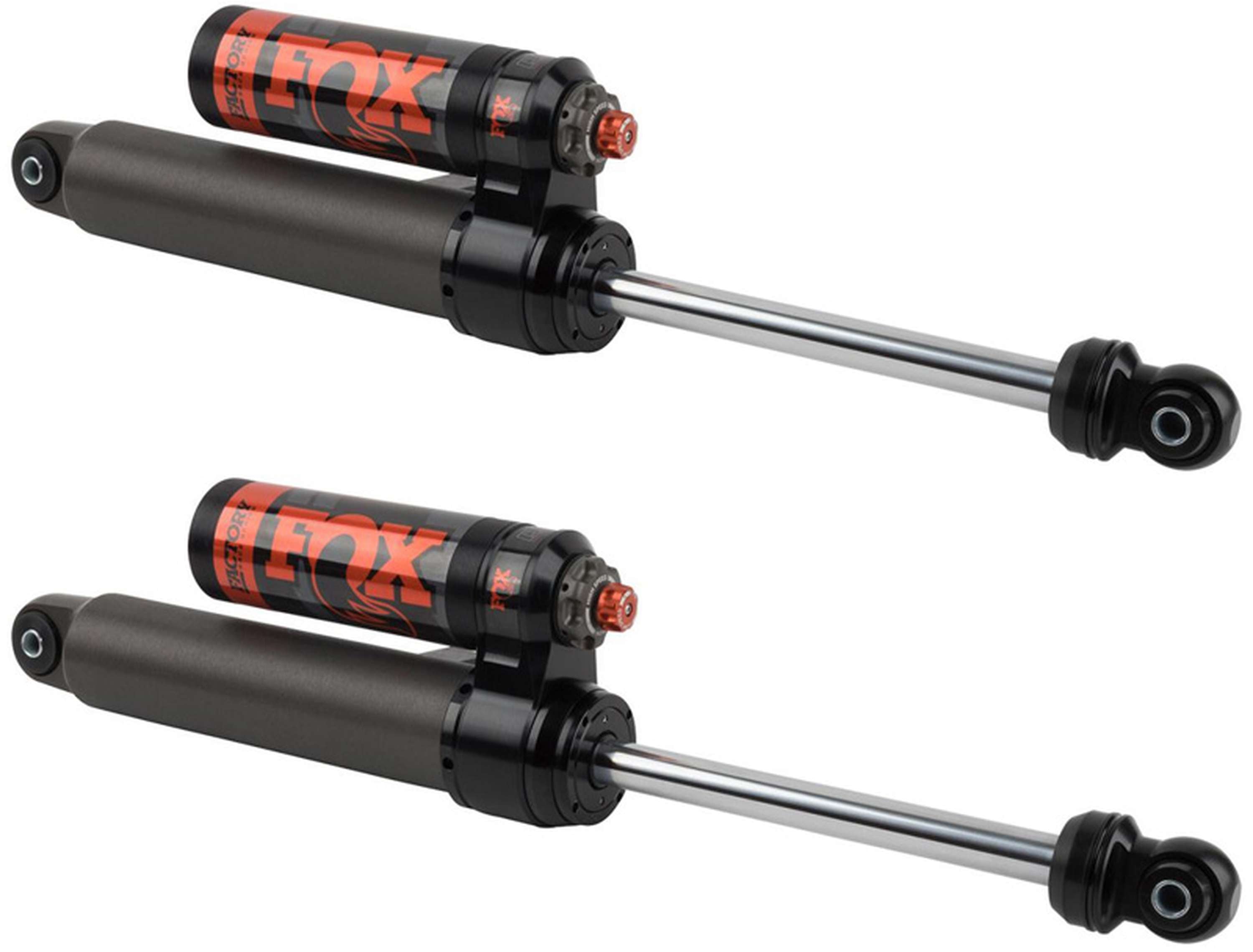

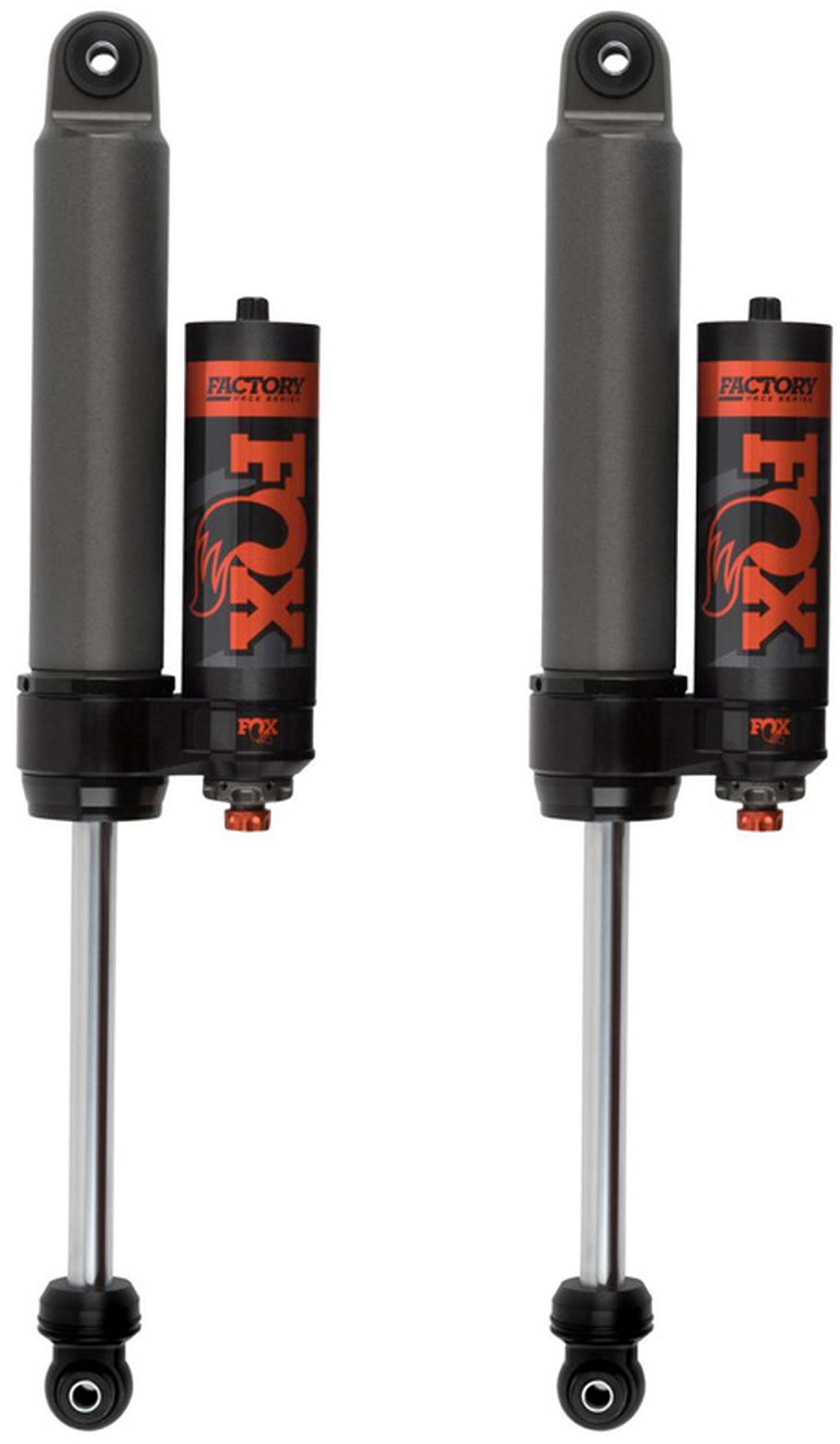

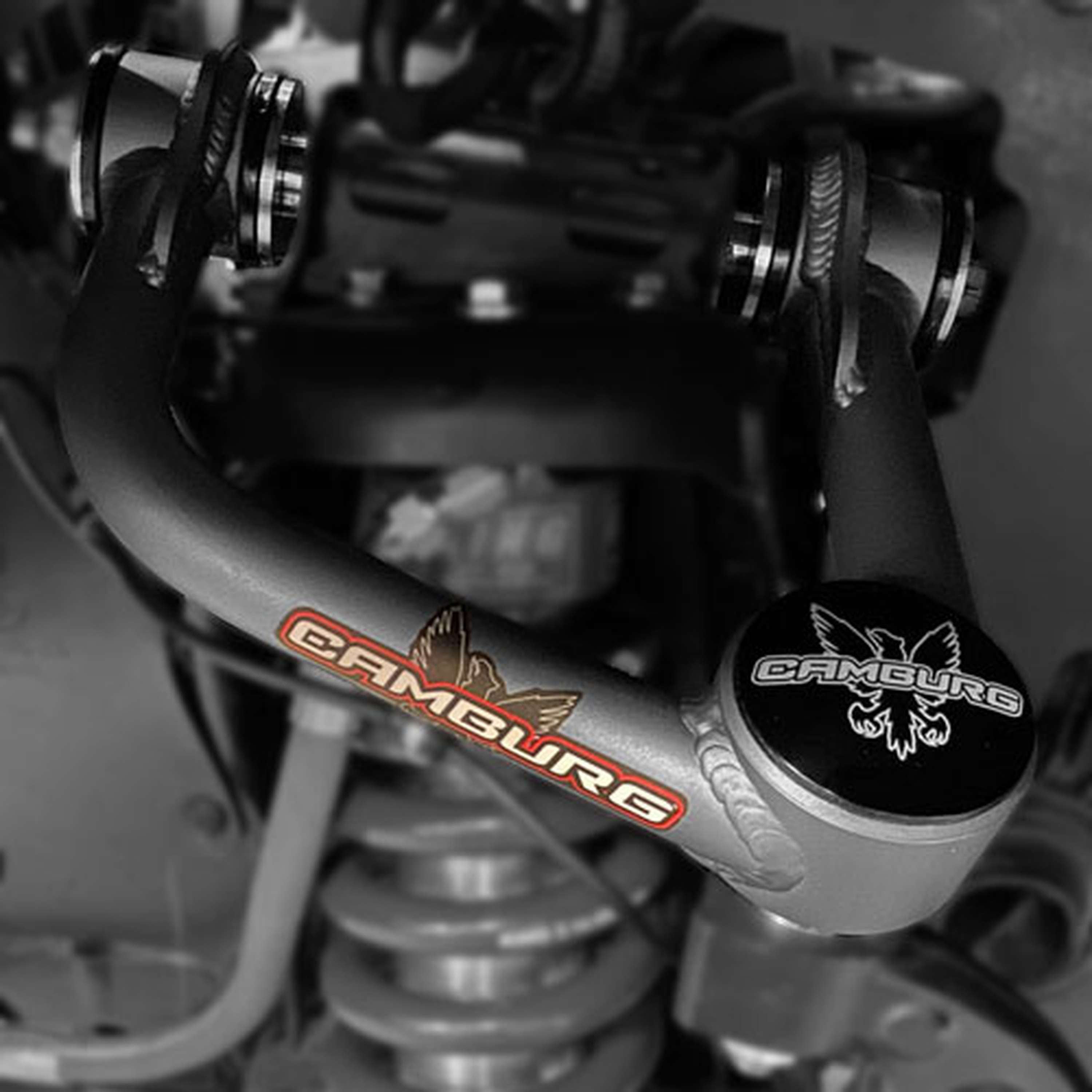

The Camburg FOX 2.5 Performance Elite DSC Series kit is a high-performance suspension system for the Ford Ranger. It includes FOX's 2.5 series shocks and uniball upper arms. These coil-over kits provide improved ride quality and the ability to lift your vehicle for off-road use. The shocks have a 2.5" diameter body for increased oil capacity and are fully rebuildable and revalveable. The remote external reservoirs help lower operating temperatures, and the Dual Speed Compression (DSC) adjuster allows for precise tuning with twelve low-speed and ten high-speed compression levels. The integrated coil spring is adjustable for preload and ride height. The upper arms are designed to increase wheel travel, improve geometry, and enhance driving characteristics. In the rear, the kit includes FOX's 2.5 Performance Elite DSC remote reservoir shocks for increased control and damping. These shocks are compatible with stock or Deaver leaf springs. Tremor models will see a lift of 1-1.5". The kit is made in the USA and is compatible with US model trucks only.
Performance Lift Kit w/ FOX 2.50" Factory Elite DSC
GJCN_CAM-110189-UC
$5,094.90 USD
Description
Specifications:
| Description_ASC | [B@134c10d8 |
| Description_DEF | [B@44da443a |
| Description_DES | [B@4545f1a3 |
| Description_EXT | [B@76550877 |
| Description_FAB | [B@56c1cb5 |
| Description_FAB | [B@138163b6 |
| Description_FAB | [B@79a3508c |
| Description_INV | [B@276bf97f |
| Description_KSW | [B@4207d093 |
| Description_LAB | [B@5a0397b6 |
| Description_MKT | [B@39479b4a |
| Description_SHO | [B@411f2d1c |
| Description_TLE | [B@3de0eee4 |
| Bushings Included | Yes |
| Coil Spring Color | Silver |
| Coil Spring End 1 Type | Open |
| Coil Spring End 2 Type | Open |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 0 |
| Grade Type | Performance |
| Maximum Lift | 1.5 |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Spring Color | Silver |
| Spring Material | Spring Steel |
| Strut(s) Included | Yes |
| Bushing Color | Black |
| Coil Spring Material | Spring Steel |
| Control Arm Color | Black |
| Control Arm Type | Tubular |
| Dust Cover Caps Included | Yes |
| Front Shock Type | 2.5 Performance Elite DSC Series Coilovers |
| Front Springs Included | Yes |
| Hardware Included | Yes |
| Joint Type | Uniball |
| Lift | 1.5 |
| Load Rate | N/A |
| Prop 65 Y/N | No |
| Rear Shock Type | 2.5 Performance Elite DSC Series Remote Res. |
| Rear Shocks Included | Yes |
| Rear Springs Included | No |
| Shock Brand | FOX |
| Spring Load | N/A |
| Spring Rate | N/A |
| Title | Camburg Engineering 2WD/4WD 2019-2023 Ford Ranger FOX 2.5 Elite DSC Lift Kit CAM-110189-UC |
