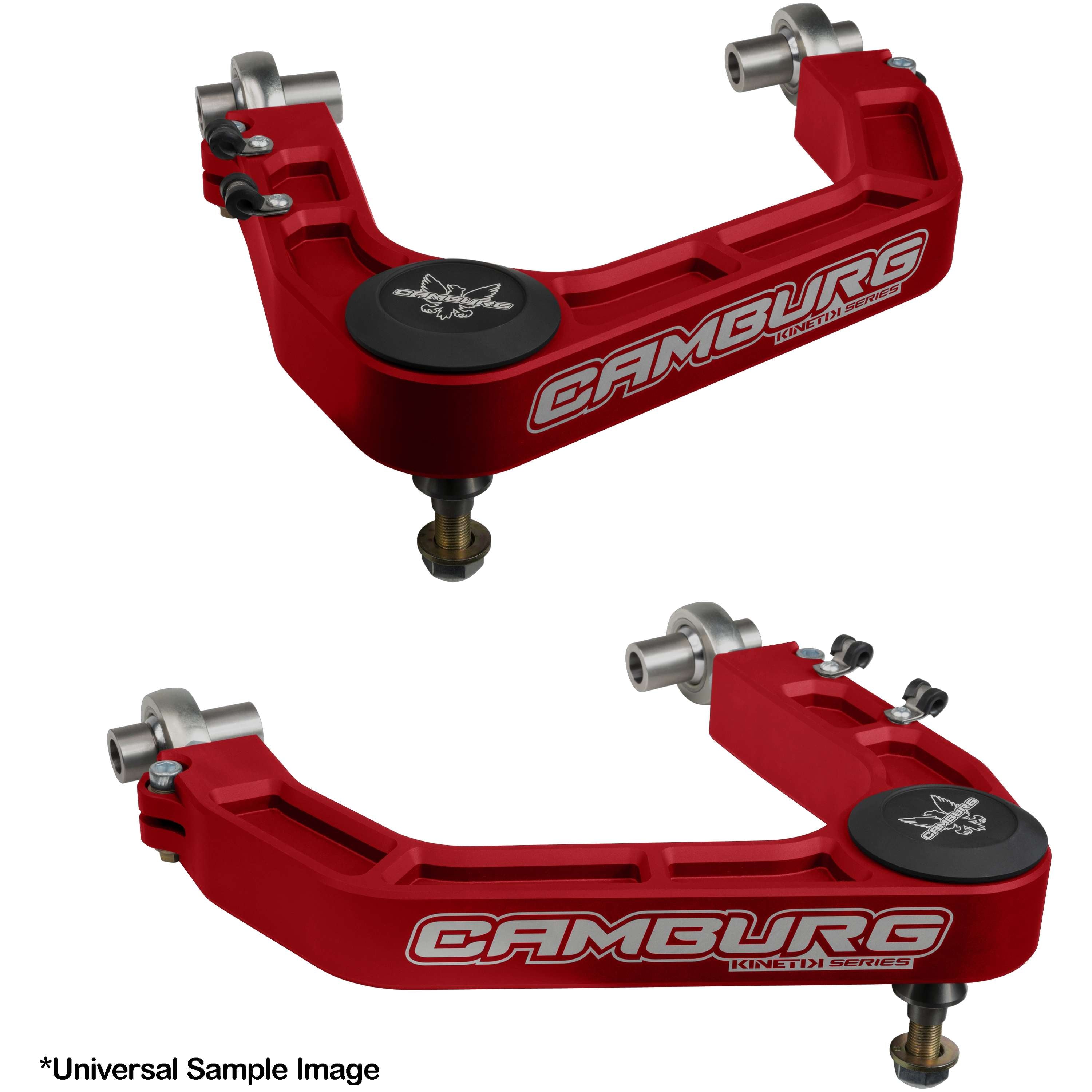

Introducing the Camburg KINETIK Series billet upper control arms for 2021-2024 Ford F-150's. These arms are meticulously designed and crafted from aerospace quality 6061 billet aluminum, providing superior strength and durability. They feature a larger FK 1.25" uniball with a PTFE liner for increased strength and misalignment, allowing for maximum wheel travel. The uniball is securely adapted to the spindle/knuckle using model-specific spacers made from heat-treated stainless steel. The arms also utilize FK 7/8" chromoly heim joints for additional camber and caster adjustment, eliminating flexing and deflection under hard use. The arms come with AN/Mil-spec hardware, including a single pinch bolt and secondary jam nut for secure installation. The new V2 design increases usable wheel travel, corrects camber and caster, and eliminates weak factory ball-joints. These arms are compatible with 1-3" of lift and are not compatible with vehicles equipped with Continuously Controlled Damping (CCD) adaptive suspension or adaptive headlamps with a position sensor attached to the OEM upper control arm.
KINETIK V2 Performance Billet Uniball Upper Arms (RED)
GJCN_CAM-110211-RED
Sale price
$1,799.00 USD
Regular price
$2,844.40 USD
Description
Specifications:
| Description_ASC | [B@235fc77c |
| Description_DEF | [B@56fe87f5 |
| Description_DES | [B@3e729273 |
| Description_EXT | [B@43ec28bd |
| Description_FAB | [B@1ed5639b |
| Description_FAB | [B@3c368e9b |
| Description_FAB | [B@167d6264 |
| Description_INV | [B@34f619d6 |
| Description_KSW | [B@18a7d68 |
| Description_LAB | [B@9406994 |
| Description_MKT | [B@7453549a |
| Description_SHO | [B@706fdb6f |
| Description_TLE | [B@225c9937 |
| Description_TTP | [B@28da4821 |
| Description_TTP | [B@46433e24 |
| Description_TTP | [B@48792120 |
| Adjustable | Yes |
| Grease Fitting Included | No |
| Mounting Hardware Included | Yes |
| Pre-Assembled | Yes |
| Pre-Greased | No |
| Reinforced | No |
| Suspension Grade Type | Performance |
| Ball Joint Included | Yes |
| Bushing Material | 4130 Chromoly |
| Bushings Included | Yes |
| Control Arm Color | Red |
| Control Arm Construction | CNC Machined |
| Control Arm Material | 6061-T6 Billet Aluminum |
| Grade Type | Performance |
| Hardware Included | Yes |
| Prop 65 Y/N | No |
| Set | Yes |
| Suspension Type | Performance |
| Title | Camburg Engineering 2WD/4WD 2021-2024 Ford F-150 Excludes Raptor Red KINETIK Series Control Arm Kit CAM-110211-RED |
| Ball Joint Cover Included | Yes |
| Ball Joint Type | Uniball |
| Attachments Included | No |
