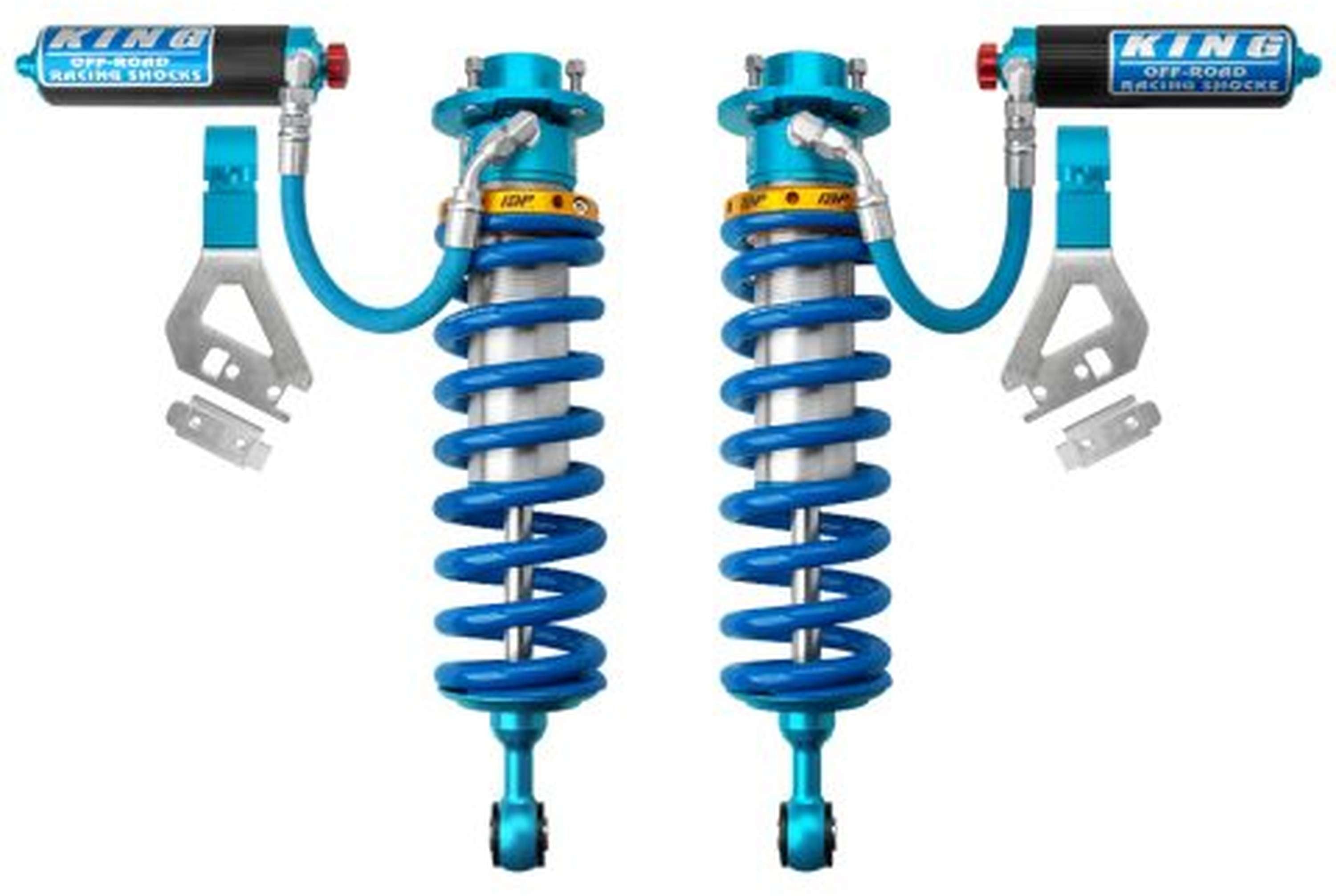

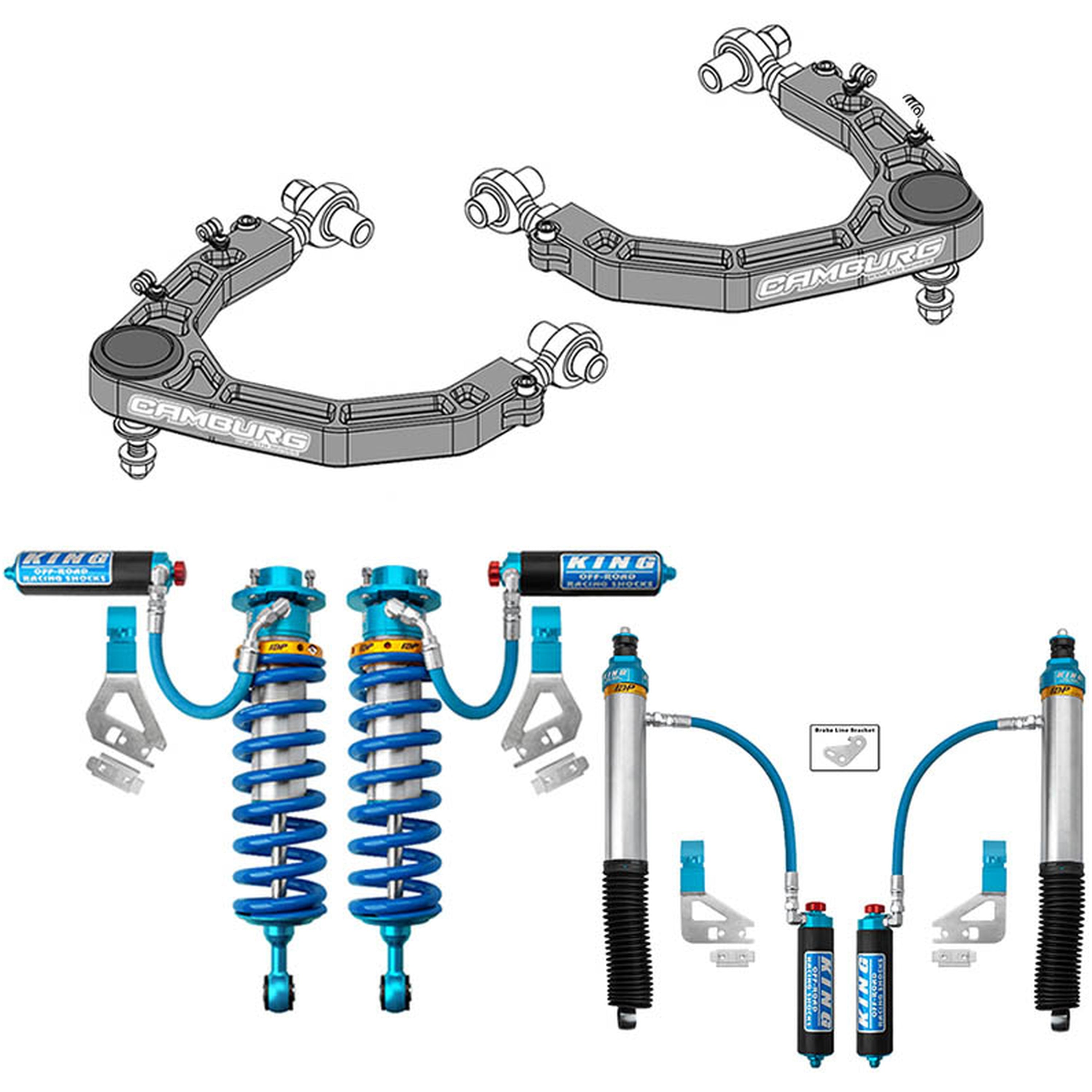

Our King 3.0 IBP performance kit for the ’22-24 Toyota Tundra’s takes our King 2.5 kit to the next level. We utilize Kings’s 3.0 IBP series front coilovers with compression adjusters. This uses King’s patented internal bypass design which offers damping progression as they are position sensitive. You have considerably more bottoming control with a plush ride. This combination of parts not only improves the ride and handling on-road but more so off-road with the larger diameter shocks and external reservoirs. With our upper arms these shocks increase wheel travel. These also have King’s finned aluminum reservoirs that aid in lowering shock temps under hard use. After lifting your truck, the stock upper arms become the limiting factor and hold back your suspensions performance. Our upper arms address these issues and more. You can choose between our tubular and billet uniball arms depending on your budget and type of use. We’re able to increase wheel travel with a part that is considerably stronger and will last longer under extreme conditions. We also engineered the arms with more caster and changed the camber curve to correct geometry so the vehicle aligns correctly and improves driving characteristics and handling both on and off-road. For more info on all our arms, check out their individual product pages to help make your choice. In the rear we go with a pair of King’s 3.0 IBP remote res. shocks. This uses King’s patented internal bypass design which offers damping progression as they are position sensitive. You have considerably more bottoming control with a plush ride. They have a substantial increased oil capacity due to their size and have a lot more control and damping. The compression adjuster allows you to tune the shock softer and firmer depending on what you’re looking for and how you’re the truck. Since they are longer in length they increase rear wheel travel and articulation.
KINETIK Performance Lift Kit w/ King IBP 3.00"
GJCN_CAM-310227-K
$7,568.00 USD
Description
Specifications:
| Description_ASC | [B@3b359b35 |
| Description_DEF | [B@6e91dcdb |
| Description_DES | [B@63f6b1cf |
| Description_EXT | [B@63bc341a |
| Description_FAB | [B@7447e76b |
| Description_FAB | [B@14509a3c |
| Description_FAB | [B@427e29b0 |
| Description_INV | [B@40e0d901 |
| Description_KSW | [B@bd702c9 |
| Description_LAB | [B@1bc6e8f5 |
| Description_MKT | [B@28467194 |
| Description_SHO | [B@6ea89d4c |
| Description_TLE | [B@5d5a1b1a |
| Bushings Included | Yes |
| Coil Spring End 1 Type | Open |
| Coil Spring End 2 Type | Open |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 0 |
| Grade Type | Performance |
| Maximum Lift | 3 |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Spring Color | Blue |
| Spring Material | Spring Steel |
| Strut(s) Included | Yes |
| Bushing Color | Unfinished |
| Coil Spring Color | Blue |
| Coil Spring Material | Spring Steel |
| Control Arm Color | Gray |
| Control Arm Type | CNC Machined |
| Front Shock Type | 3.0 IBP Performance |
| Front Springs Included | Yes |
| Hardware Included | Yes |
| Joint Type | Uniball |
| Lift | 3 |
| Load Rate | N/A |
| Prop 65 Y/N | No |
| Rear Shock Type | 3.0 IBP Performance |
| Rear Shocks Included | Yes |
| Rear Springs Included | No |
| Shock Brand | King |
| Shock Type | 3.0 IBP Performance |
| Spring Load | N/A |
| Spring Rate | N/A |
| Title | Camburg Engineering 2WD/4WD 2022-2024 Toyota Tundra King 3.0 IBP KINETIK Series Lift Kit CAM-310227-K |
