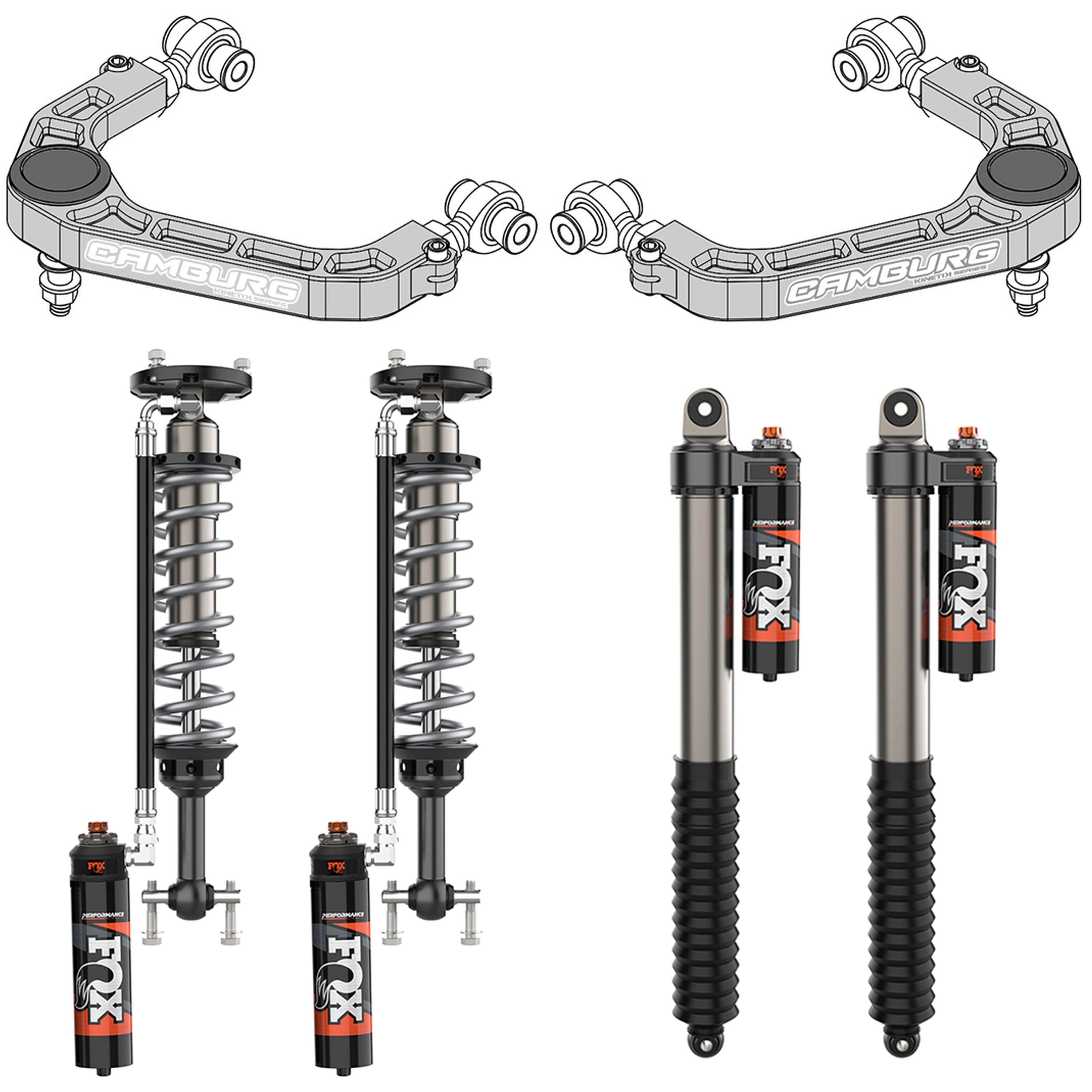

Our FOX 2.5 Performance Elite DSC kit is the ultimate mid travel kit for your Ford F-150. We utilize FOX’s 2.5 Performance Elite series front coilovers with their DSC compression adjusters. The remote external reservoirs increase the oil capacity for lower operating temperatures and the Dual Speed Compression (DSC) adjuster gives remarkable versatility and precise tuning. A simple twist of either two adjuster knobs allows twelve separate low-speed and ten high-speed compression levels. This combination of parts not only improves the ride and handling on-road but more so off-road with the larger diameter shocks and external reservoirs. After lifting your truck, the stock upper arms become the limiting factor and hold back your suspensions performance. Our upper arms address these issues and more. You can choose between our tubular and billet uniball arms depending on your budget and type of use. We’re able to increase wheel travel with a part that is considerably stronger and will last longer under extreme conditions. We also engineered the arms with more caster and changed the camber curve to correct geometry so the vehicle aligns correctly and improves driving characteristics and handling both on and off-road. For more info on all our arms, check out their individual product pages to help make your choice. In the rear we go with a pair of FOX’s 2.5 Performance Elite Series DSC piggyback. shocks. They have a substantial increased oil capacity due to their size and have a lot more control and damping. These also have FOX’s Dual Speed Compression (DSC) adjusters for low and high speed compression to really dial the ride in. Since they are longer in length they increase rear wheel travel and articulation. These are designed to be used with stock leaf springs, shackles or Deaver leaf springs for maximum useable wheel travel and performance.
KINETIK Performance Lift Kit w/ FOX 2.50"
GJCN_CAM-110283-K
$5,880.90 USD
Description
Specifications:
| Description_ASC | [B@2842a78e |
| Description_DEF | [B@171e3f93 |
| Description_DES | [B@36ba05f2 |
| Description_EXT | [B@ba43b1c |
| Description_FAB | [B@36e79331 |
| Description_FAB | [B@5063d0d9 |
| Description_FAB | [B@3690dab2 |
| Description_INV | [B@1cc67ba7 |
| Description_KSW | [B@16b21d15 |
| Description_LAB | [B@5819e202 |
| Description_MKT | [B@68ece6f9 |
| Description_SHO | [B@47d8a300 |
| Description_TLE | [B@4104545b |
| Bushings Included | Yes |
| Coil Spring Color | Silver |
| Coil Spring End 1 Type | Open |
| Coil Spring End 2 Type | Open |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 0 |
| Grade Type | Performance |
| Maximum Lift | 2 |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Spring Color | Silver |
| Spring Material | Spring Steel |
| Strut(s) Included | Yes |
| Bushing Color | Unfinished |
| Coil Spring Material | Spring Steel |

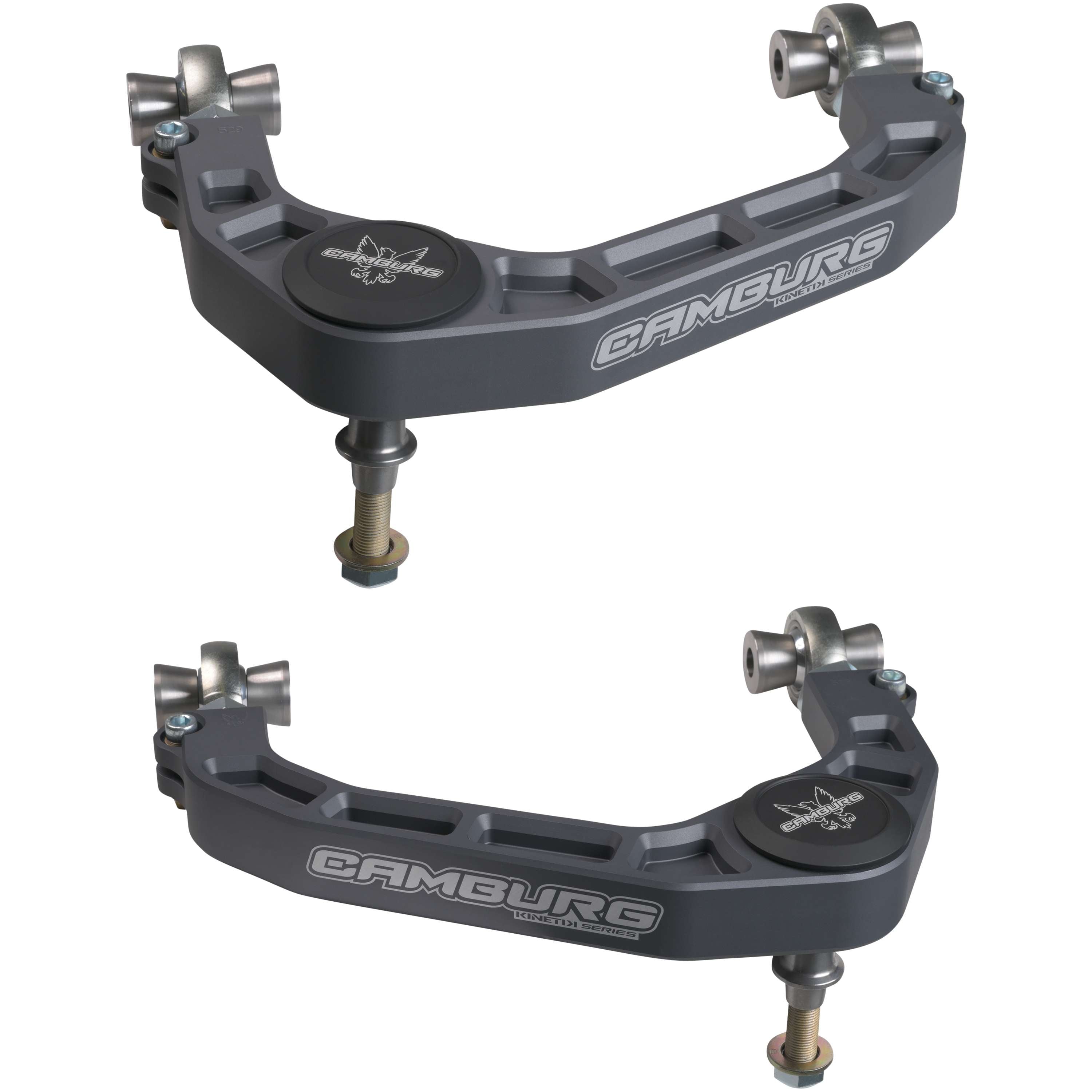

| Control Arm Color | Gray |
| Control Arm Type | CNC Machined |

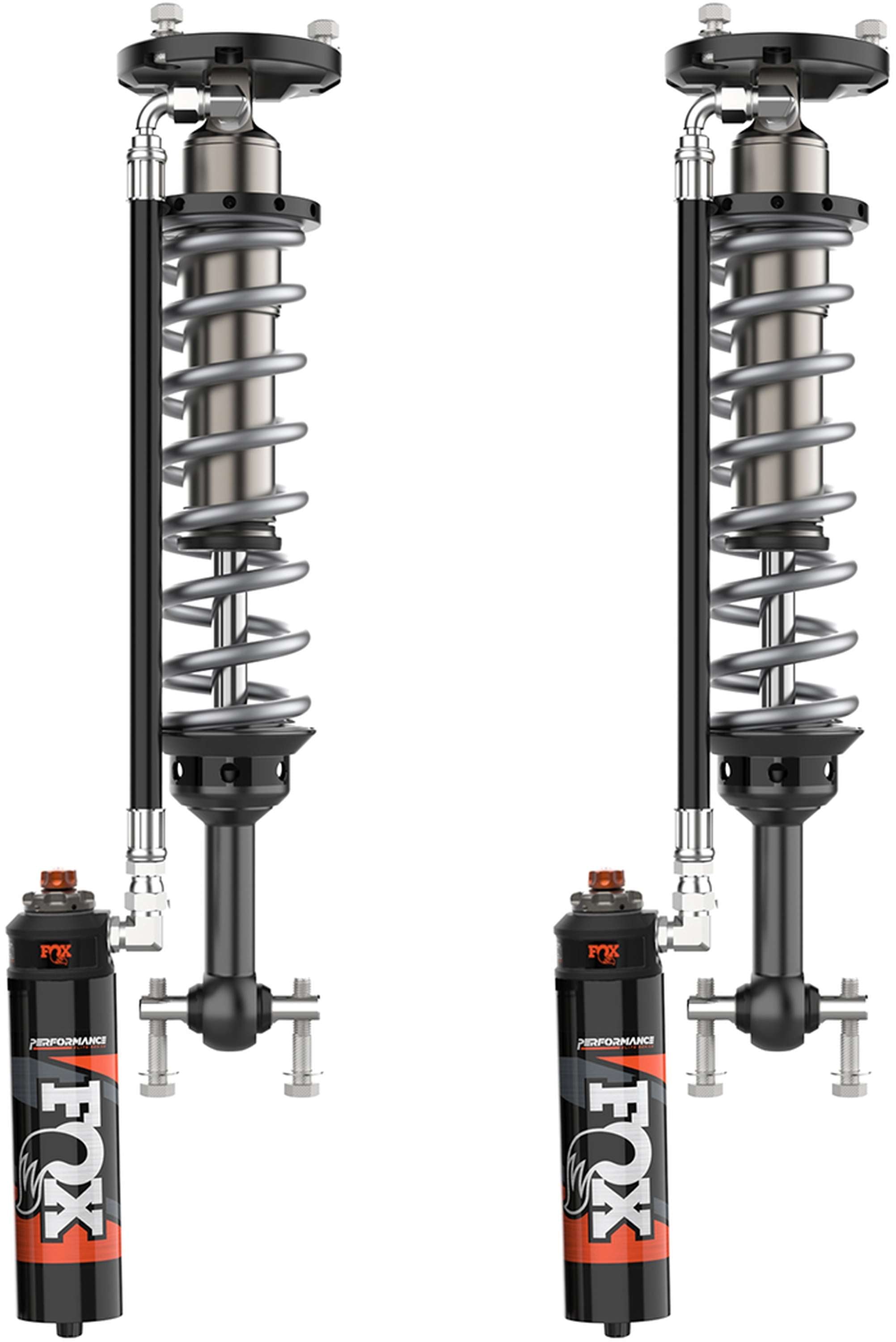

| Front Shock Type | 2.5 Performance Elite DSC Series |
| Front Springs Included | Yes |
| Hardware Included | Yes |
| Joint Type | Uniball |
| Lift | 2 |
| Load Rate | N/A |
| Prop 65 Y/N | No |

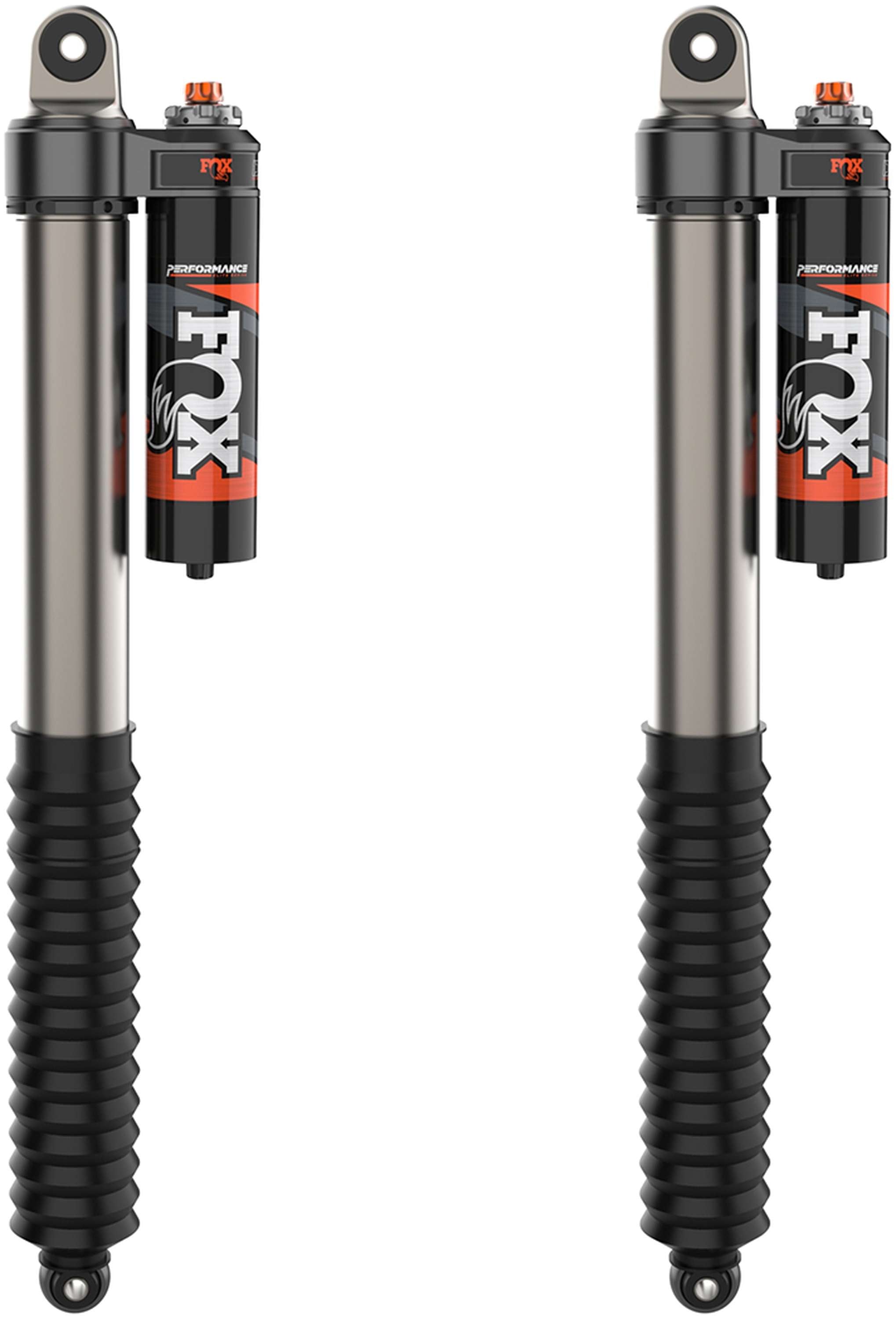

| Rear Shock Type | 2.5 Performance Elite DSC Series |
| Rear Shocks Included | Yes |
| Rear Springs Included | No |
| Shock Brand | FOX |
| Shock Type | 2.5 Performance Elite DSC Series |
| Spring Load | N/A |
| Spring Rate | N/A |
| Title | Camburg Engineering 2WD 2015-2020 Ford F-150 Excludes Raptor FOX 2.5 Elite DSC KINETIK Series Lift Kit CAM-110283-K |
