Fuel Tank System 255 LPH 1982-1991 Blazer / Jimmy / Suburban Sniper EFI

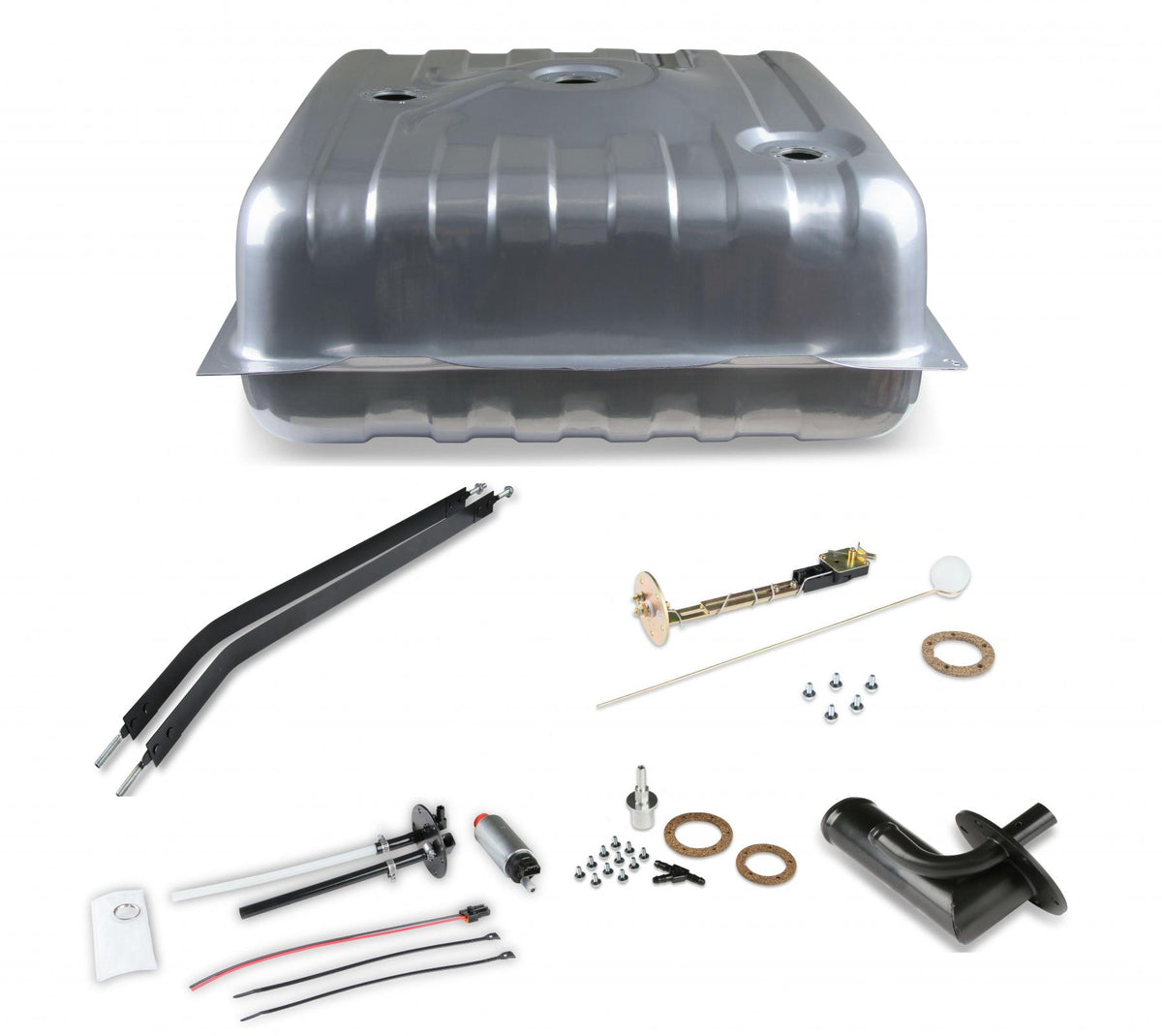

Fuel tank is a direct fit for your application with no body modifications necessary. The kit includes the tank, a 255 lph fuel pump, fuel level sender, New tank straps, and the filler elbow housing.

The tank is powder coated for corrosion resistance and great looks. The 255 LPH fuel pump supports up to 550 EFI (at 60 PSI at 13.5 Volts / 10.4 AMP Draw).

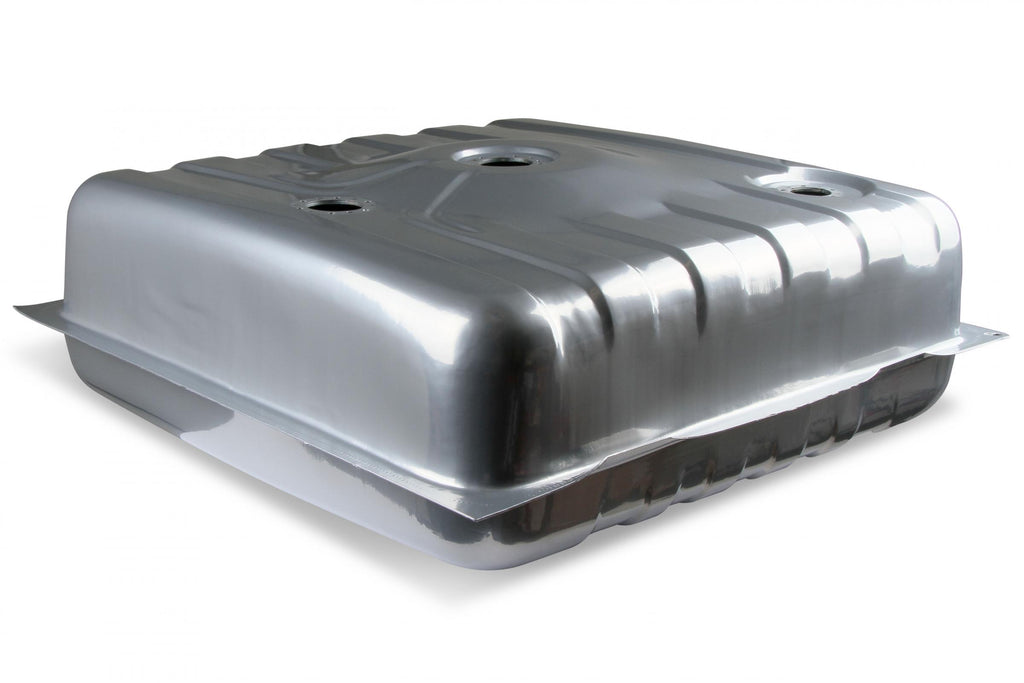

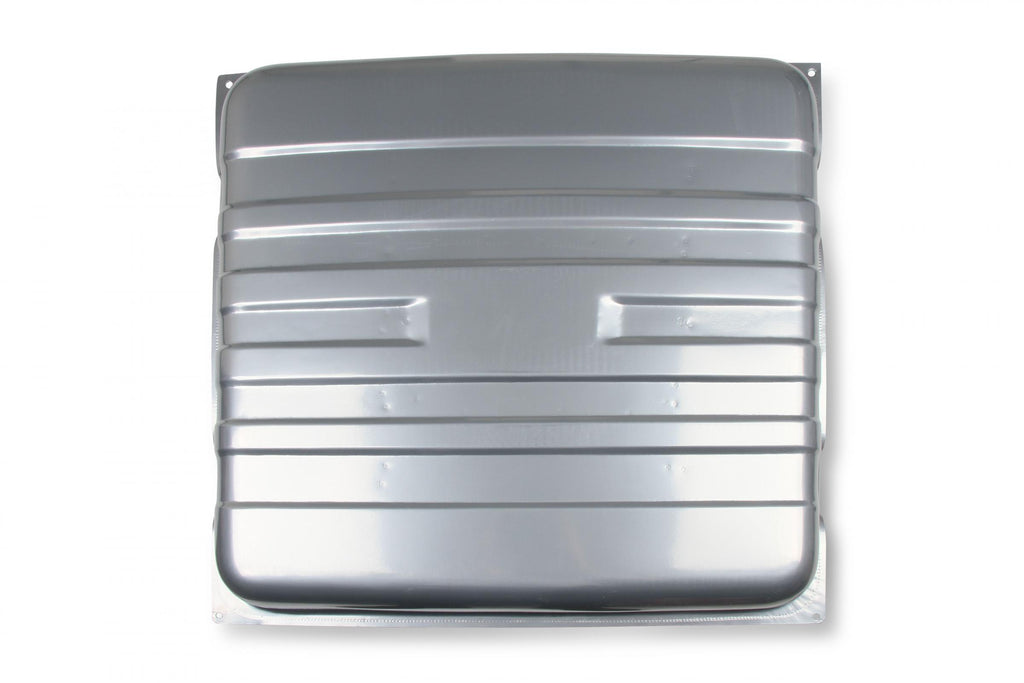

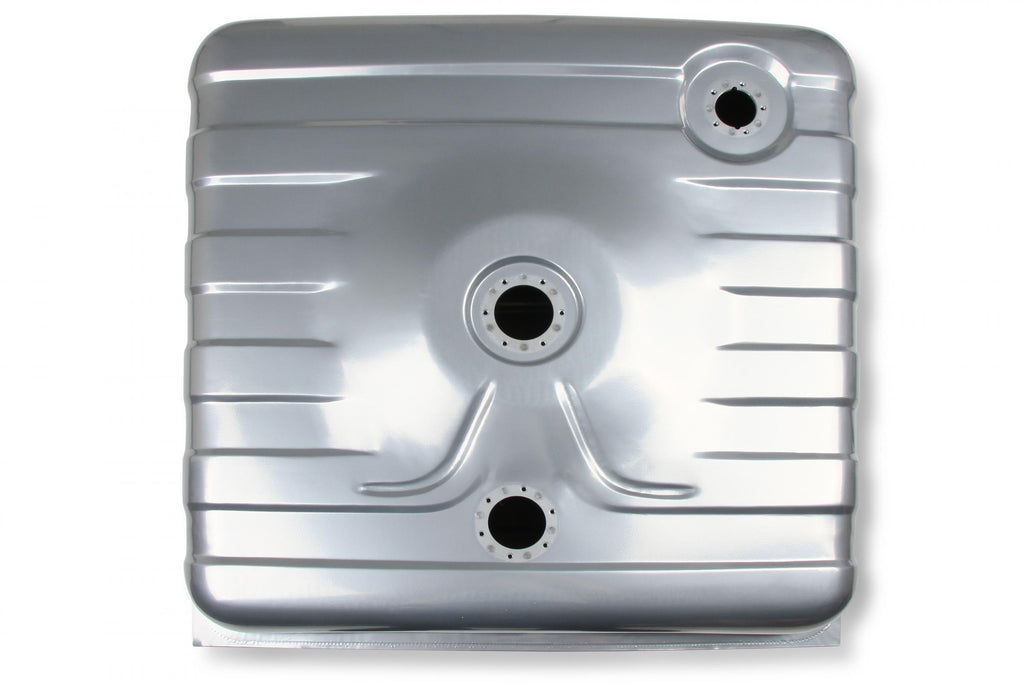

• Tanks are galvanized steel then powder coated silver for total corrosion protection.

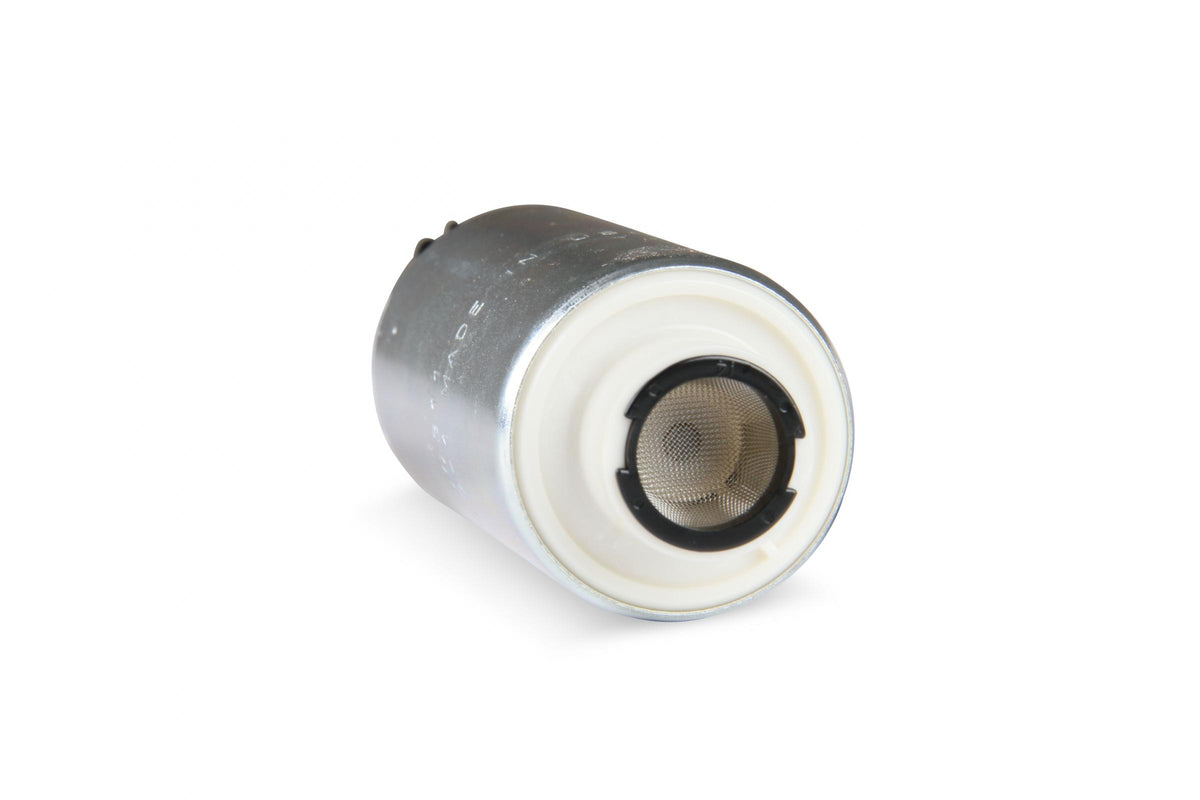

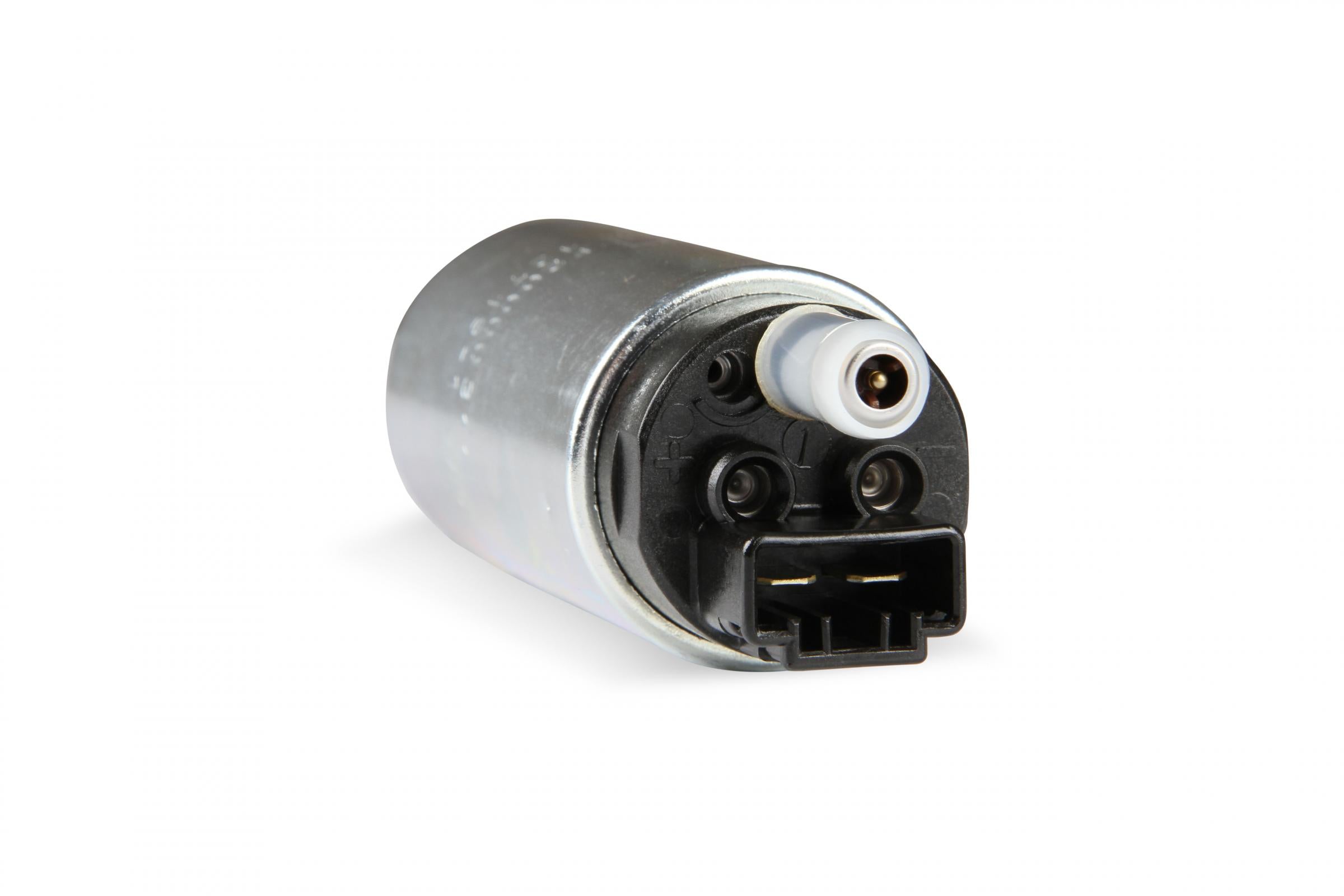

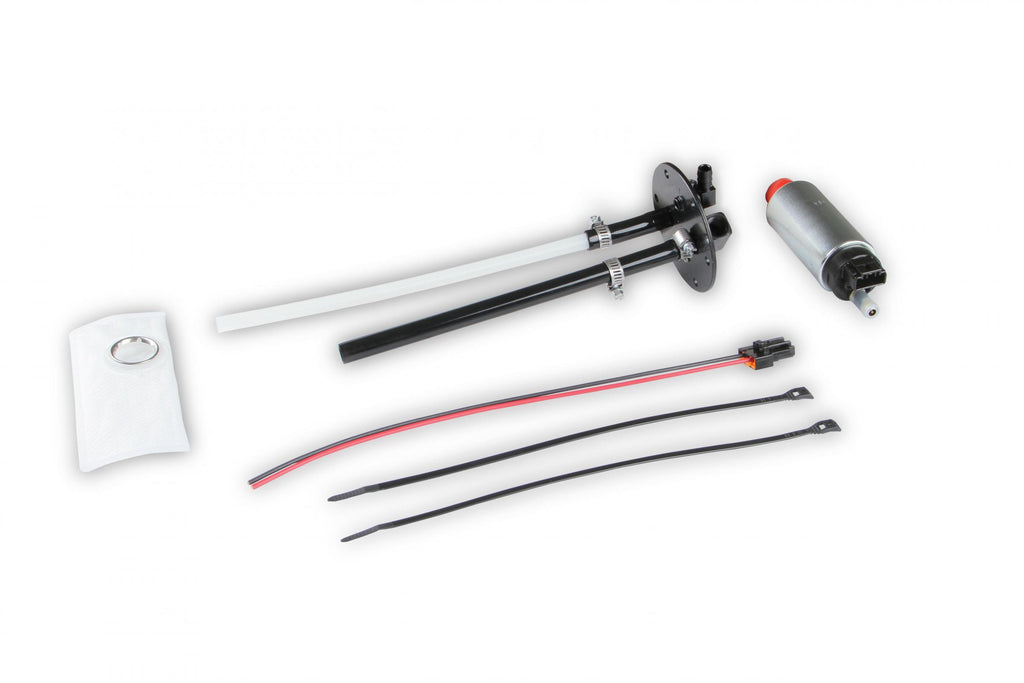

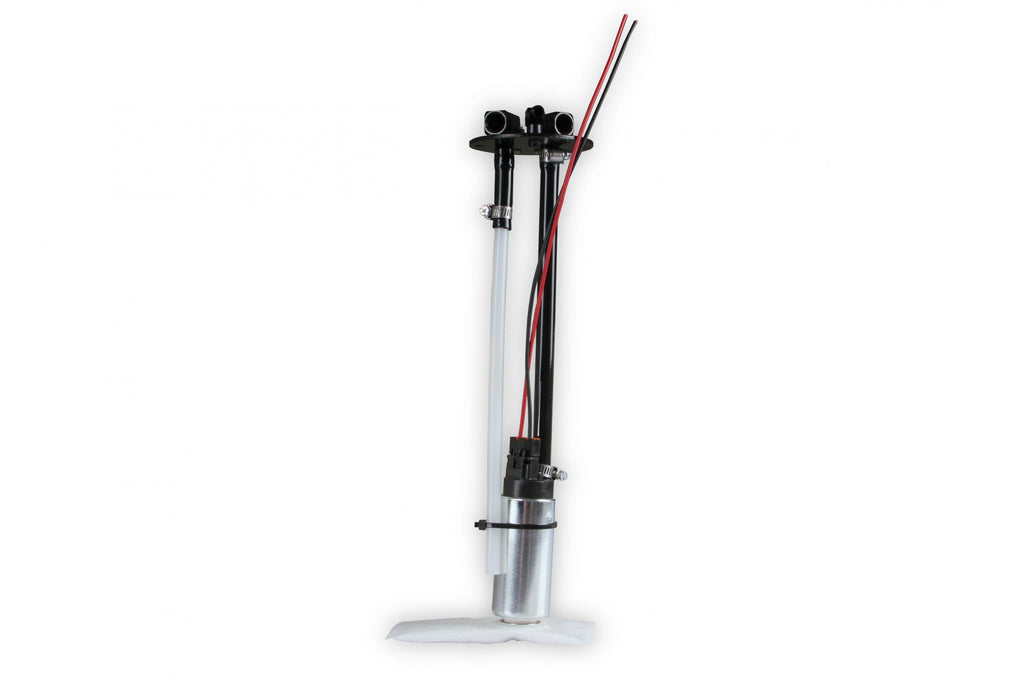

• 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness.

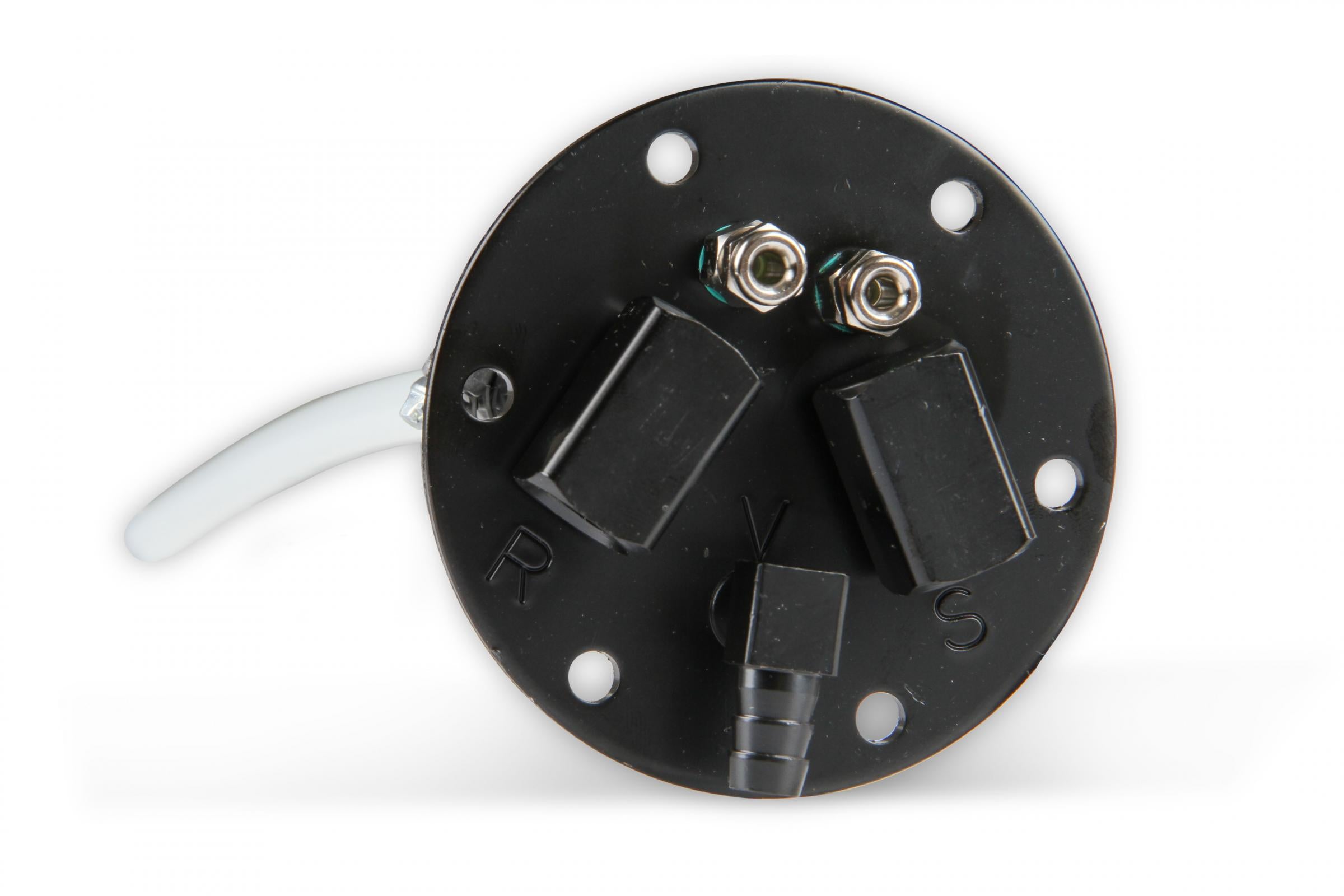

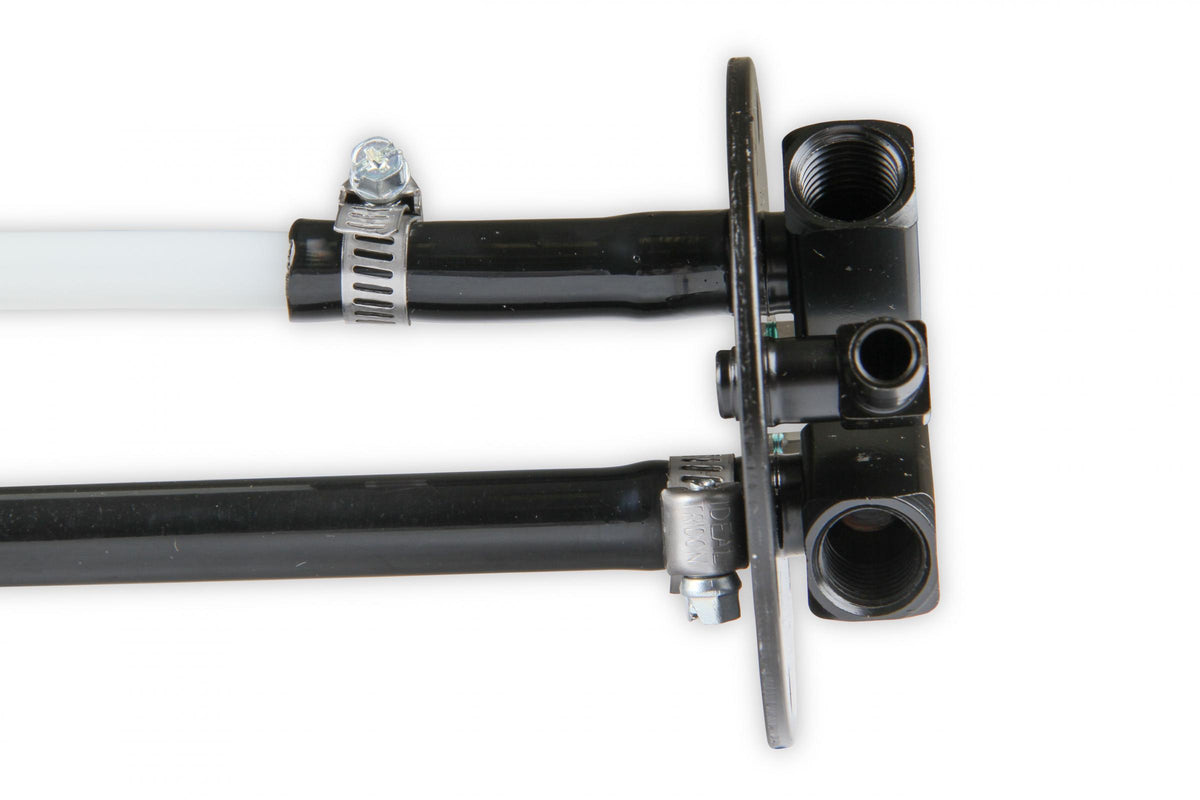

• Sender has 1/4 inch NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting.

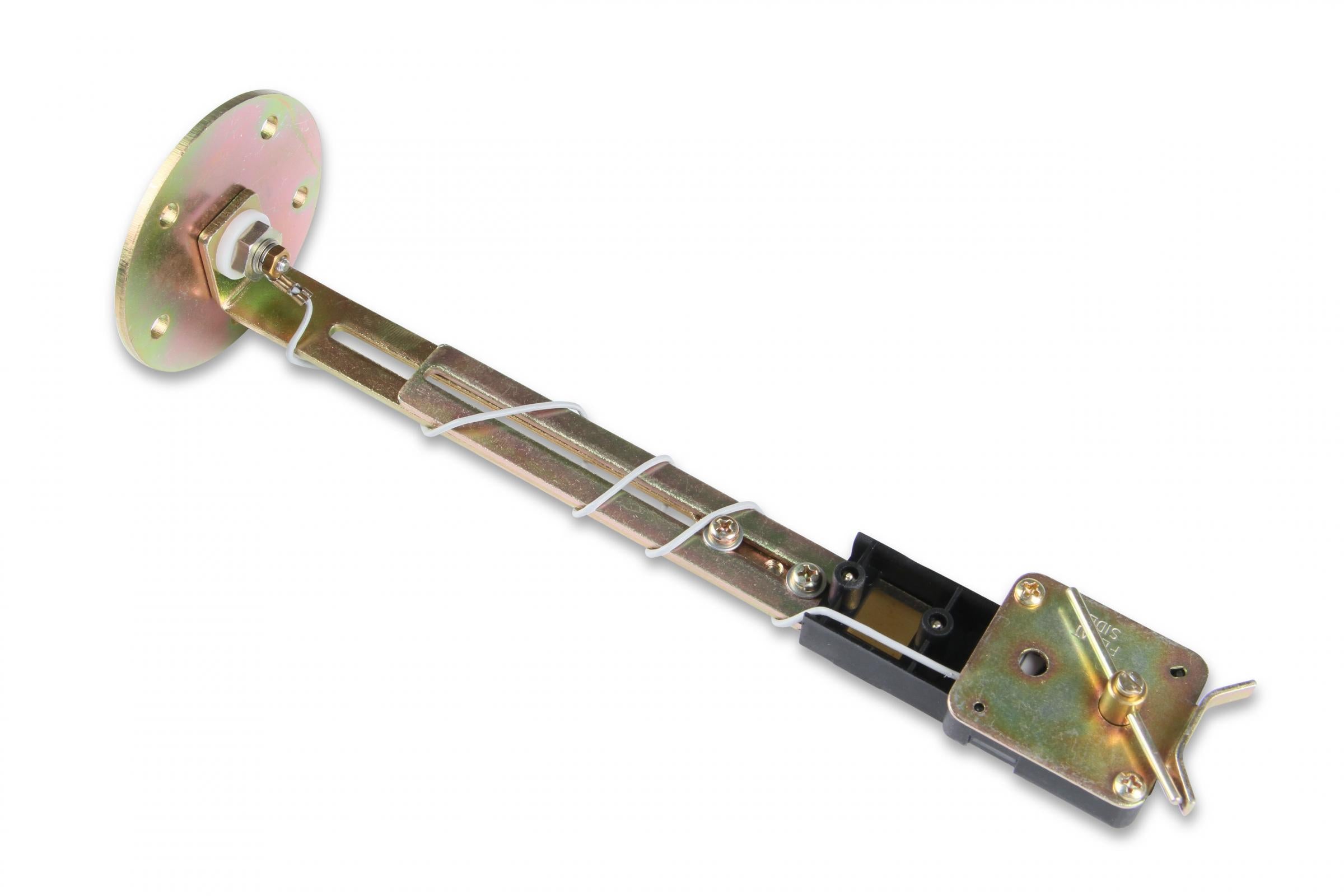

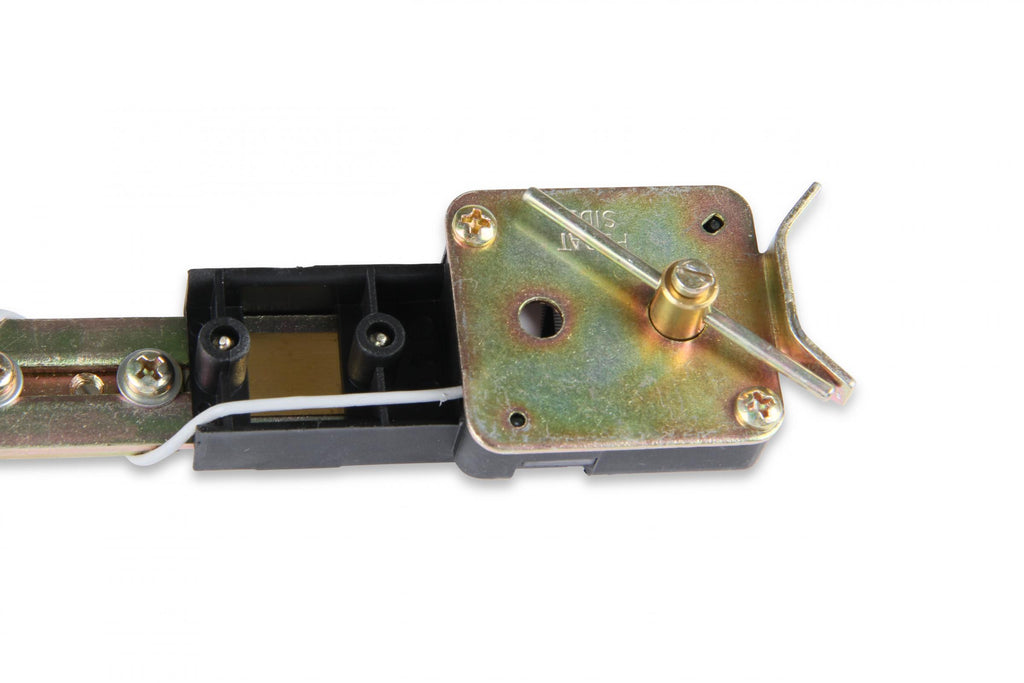

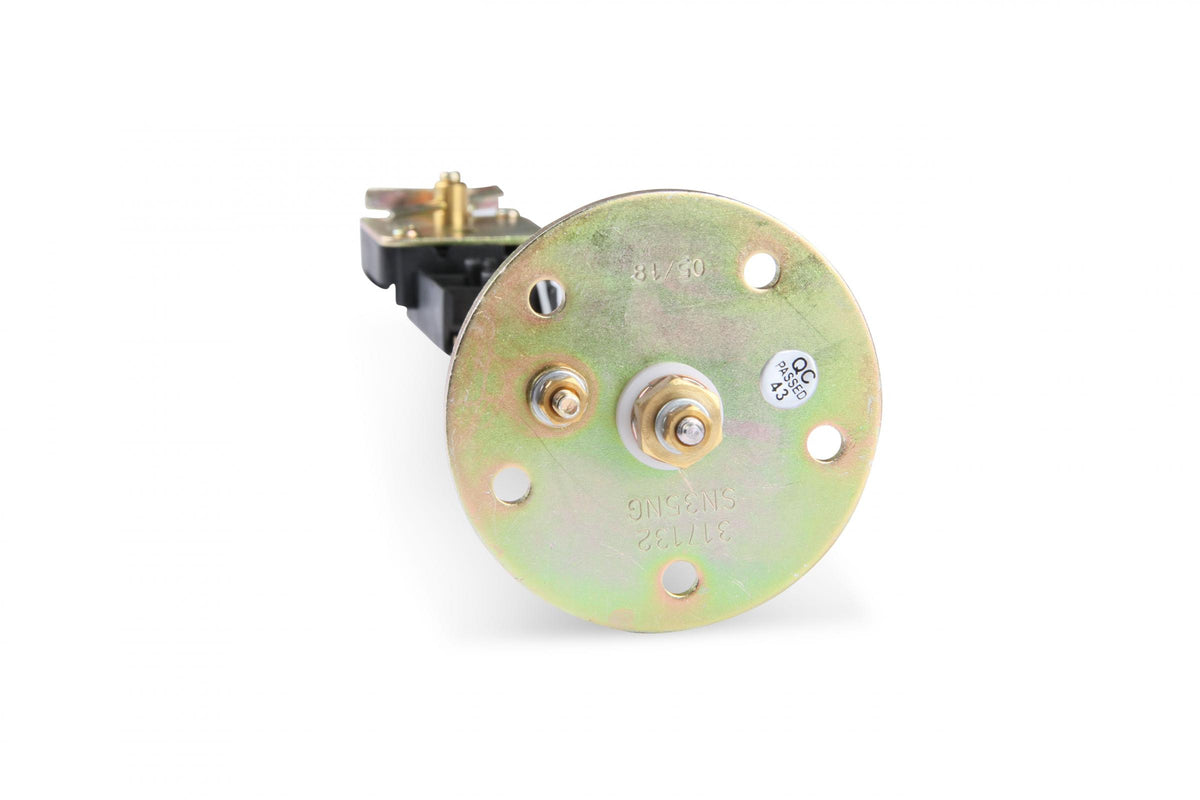

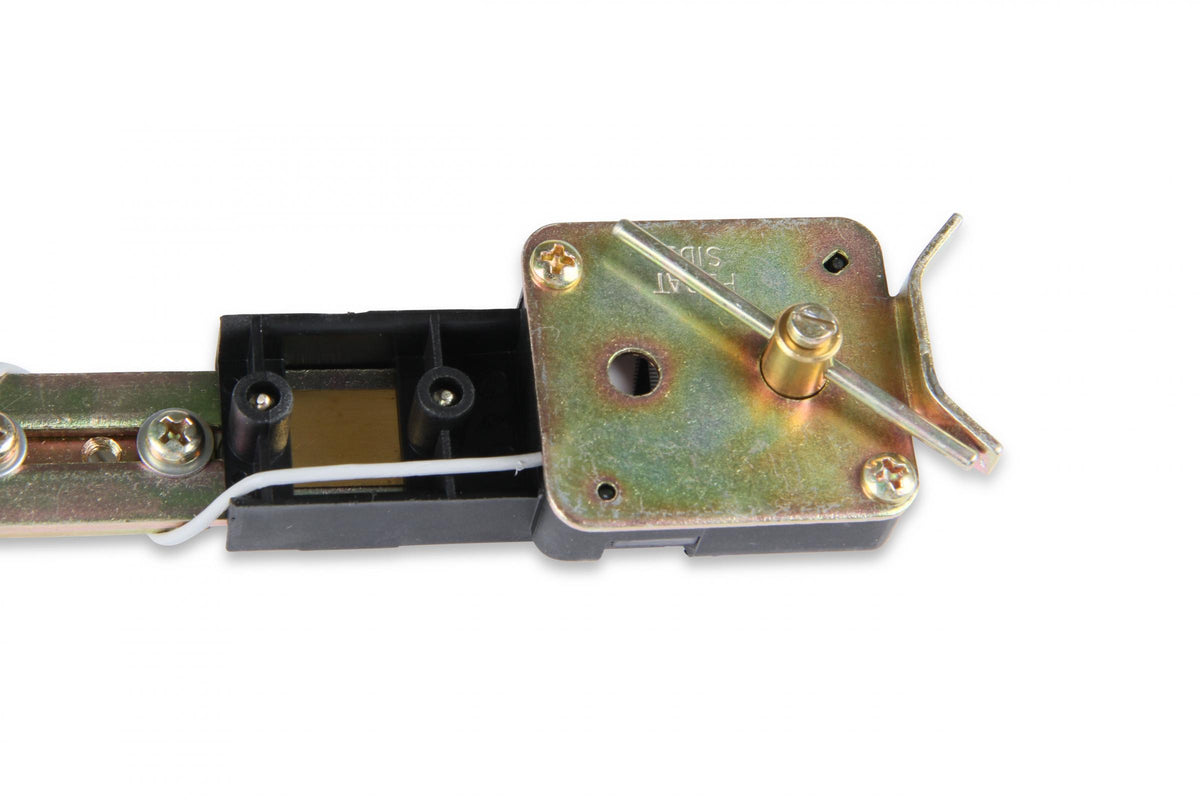

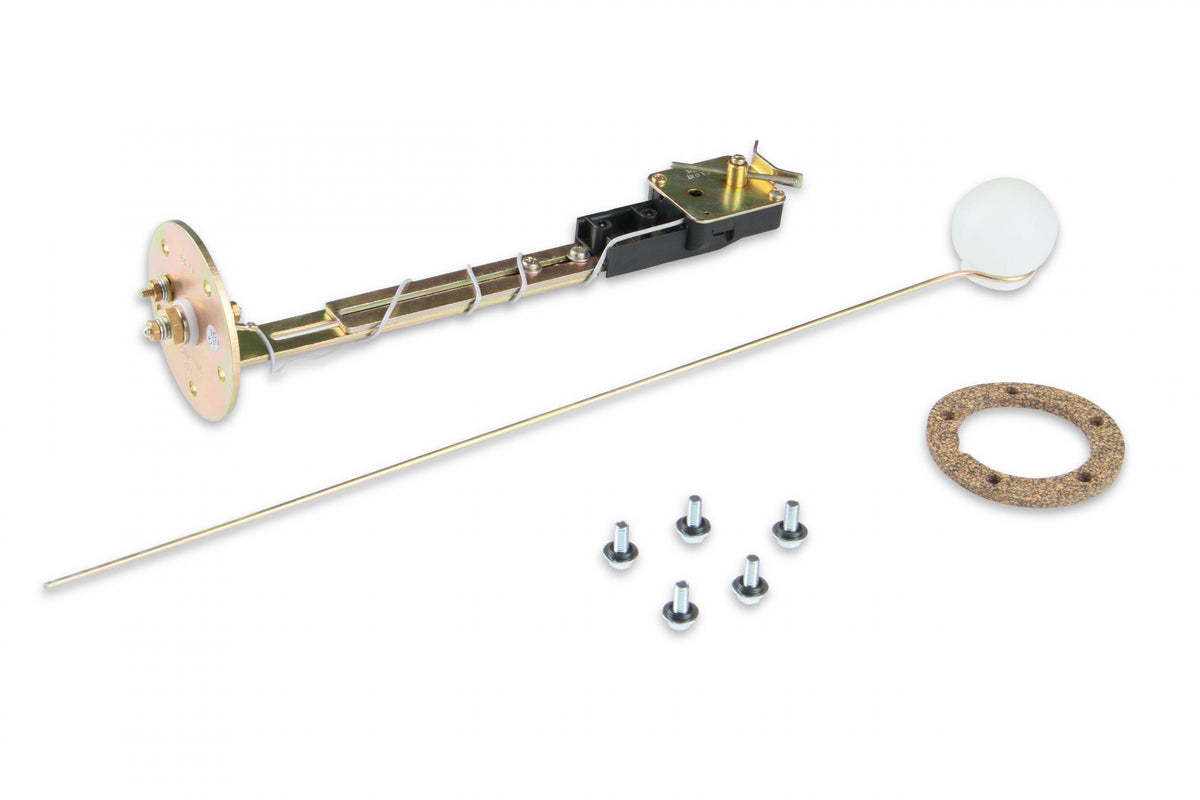

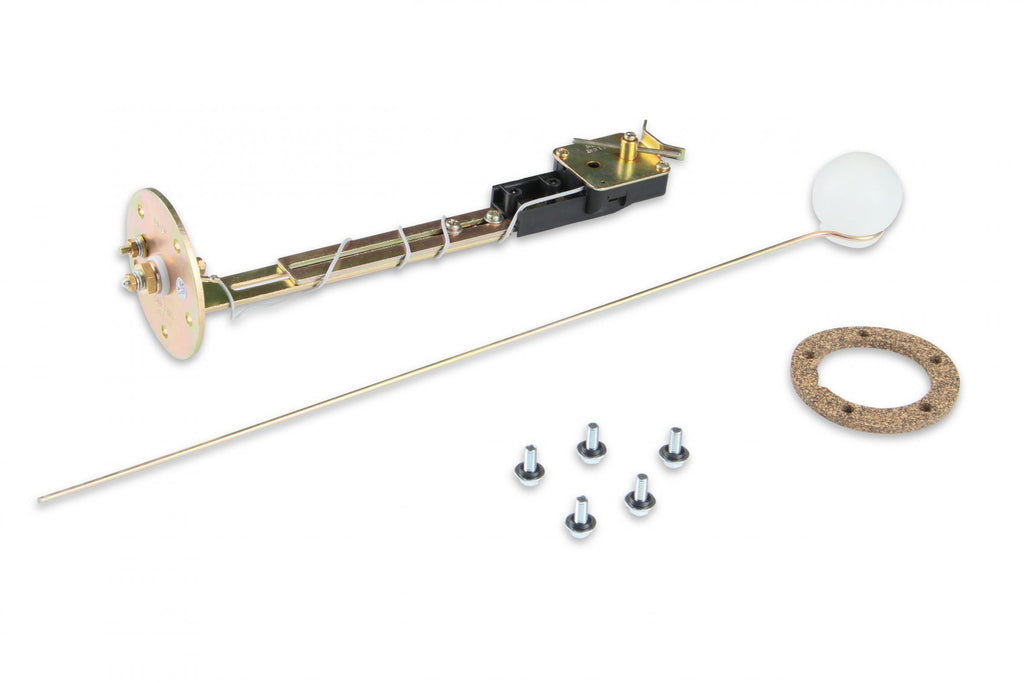

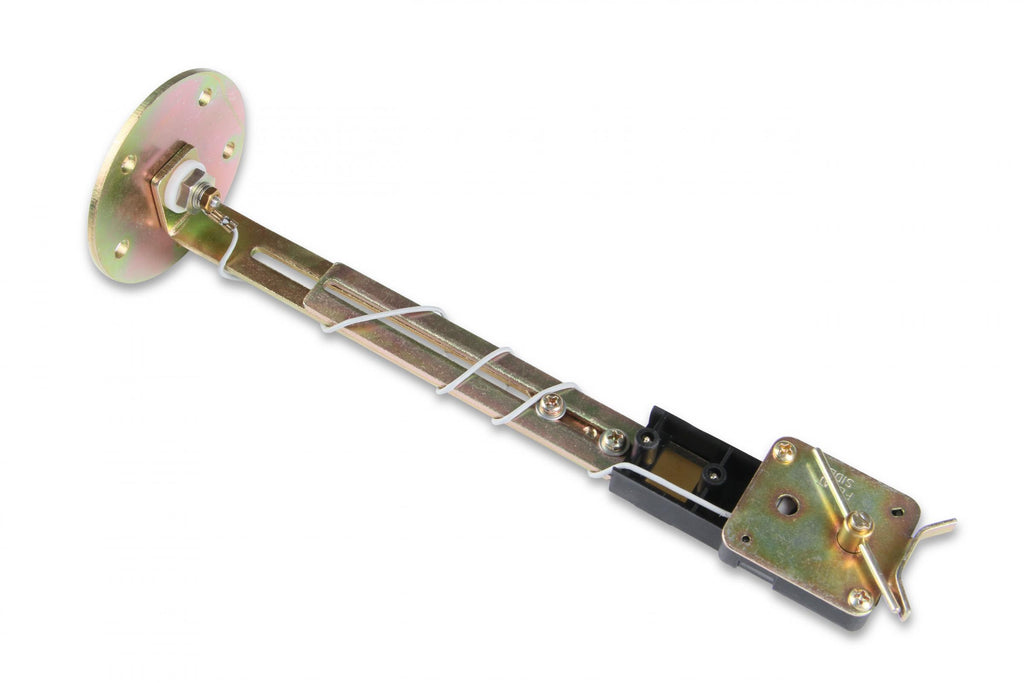

• Fuel level sender included with the correct Ohm range for your factory gauges.
• Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car.
• Internal tank baffling includes a large 4.8 liter internal fuel tray to prevent fuel pump starvation.

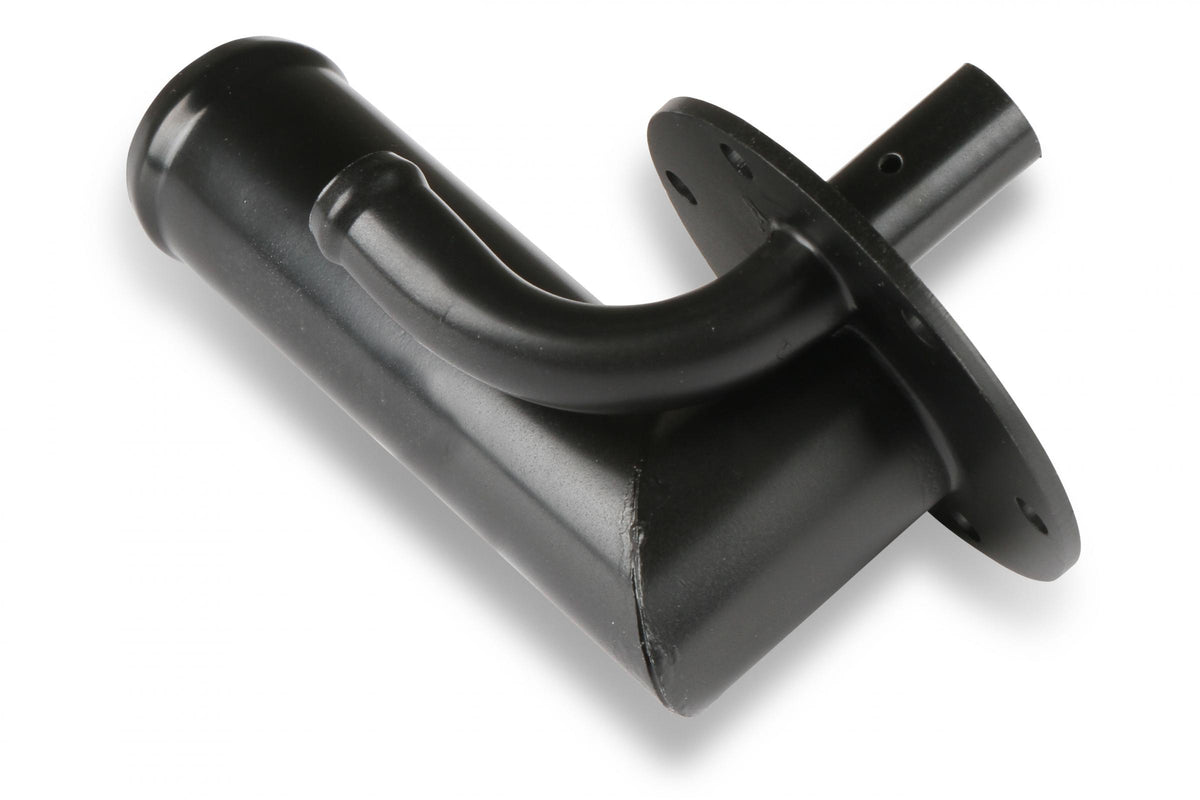

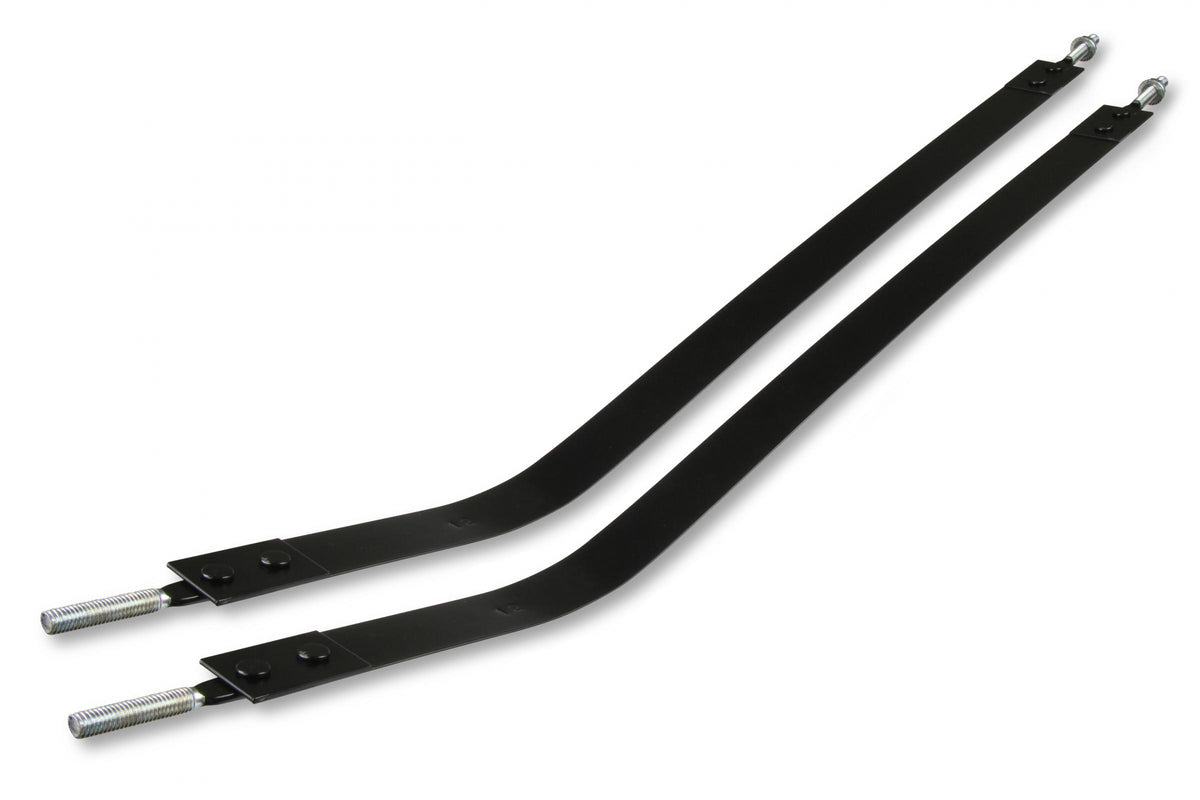

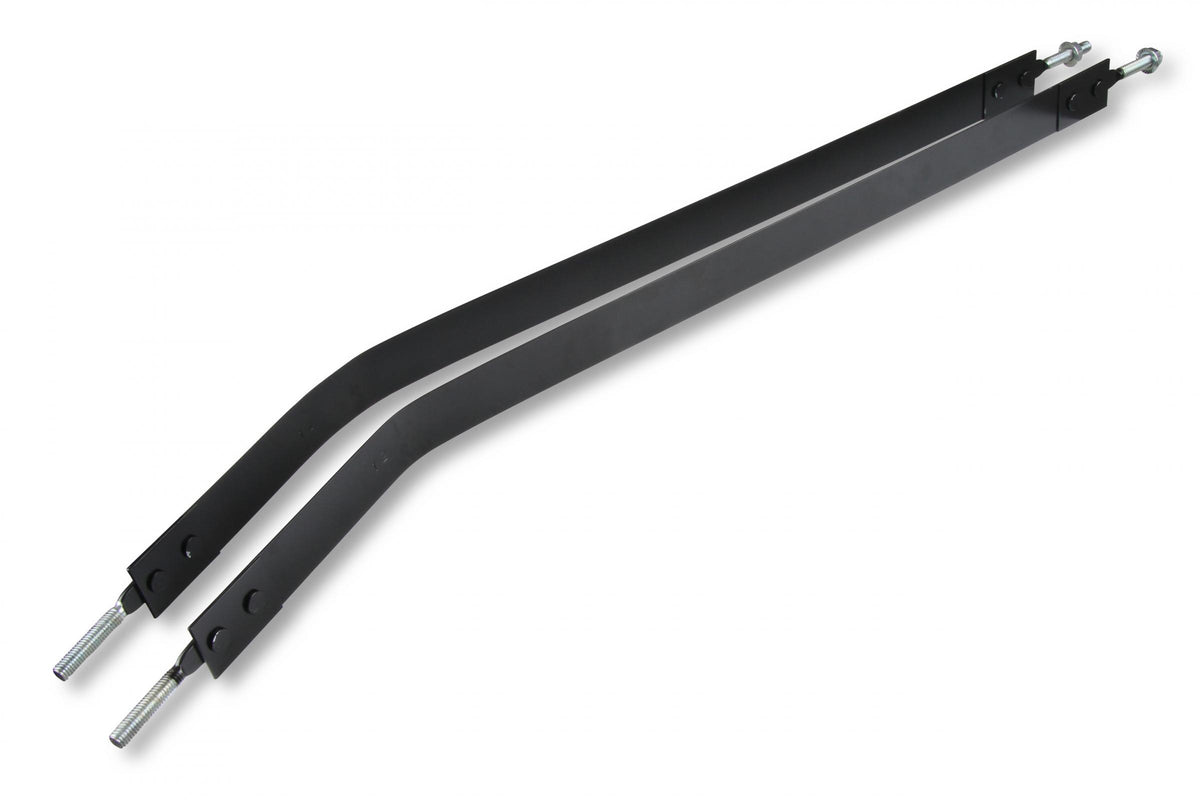

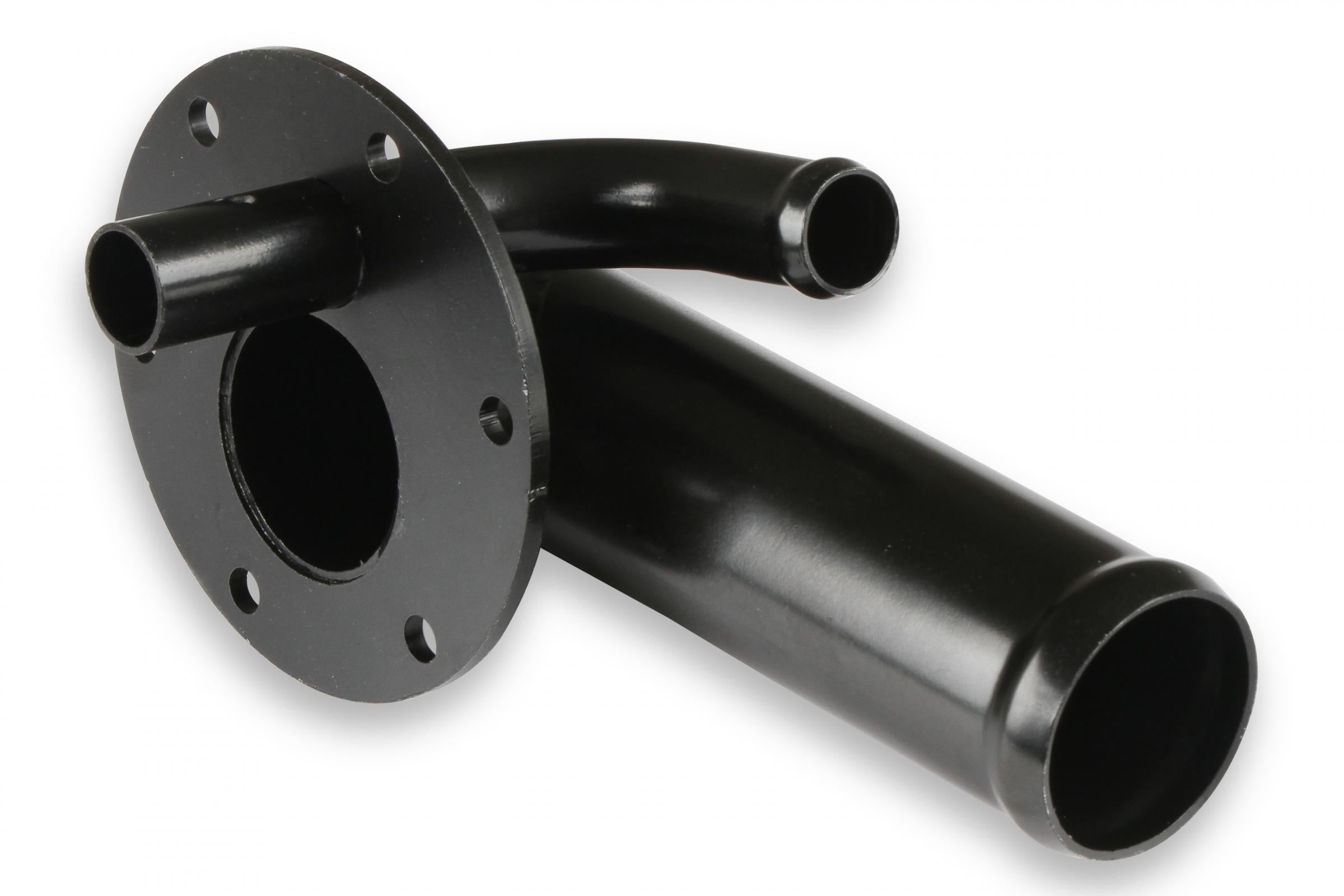

• Fits and looks like an OEM tank when installed with New tank straps and 1 5/8 inch filler elbow housing included.
• Complete bolt in solution for your EFI conversion.

Details:

• Application: 1982-87 Blazer / Jimmy / Suburban
• Attached Sump: Yes
• Baffled Sump: Yes
• Color: Silver
• Drain Plug: No
• Emission Code: 4
• Filler Neck Attached: No
• Finish: Powdercoated
• Free Flow LPH: 255
• Fuel Sending Unit Ohms: 0-90 Ohms
• Fuel System Compatibility: Electronic Fuel Injection
• Fuel System Type: Gasoline
• Fuel Tank Coating: Powder Coated
• Gallon Capacity: 25
• Grade Type: Performance
• Lock Ring Included: Yes
• Material: Steel
• Maximum Flow Rating: 255 LPH
• Mounting Straps Included: Yes
• New Straps Included: Yes

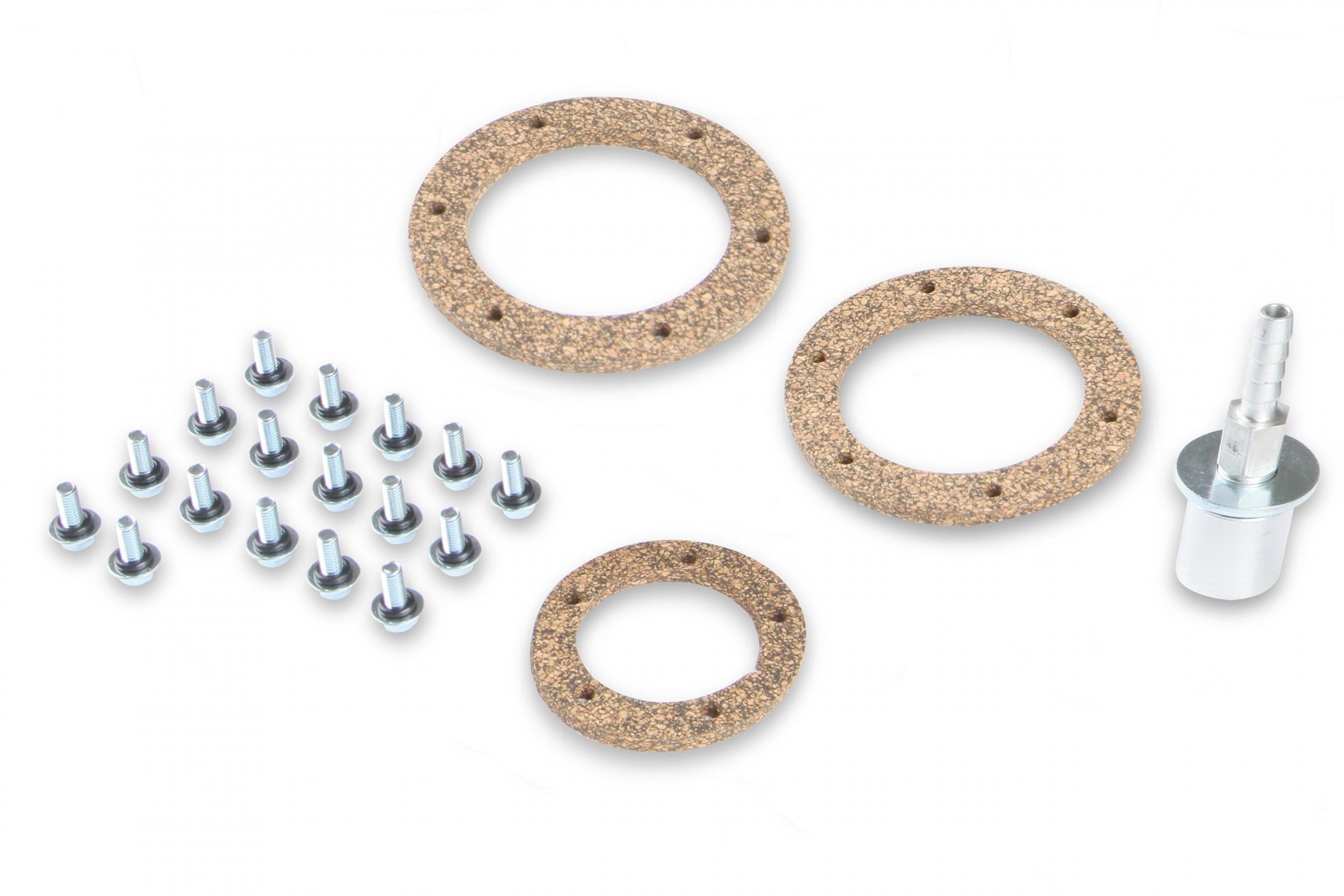

• O-Ring Included: Yes
• Resistance Ohms Empty: 0 82
• Resistance Ohms Full: 90 82
• Sending Unit Included: Yes
• Tank Capacity: 25 GA
• Tank Color: Gray
• Tank Material: Steel
• Warranty: Manufacturer's Limited 90 Day Warranty
