Ford Bronco 3 Inch Pro X System Stage 1 Rock Krawler

Rock Krawler Suspension Ford Bronco 3 Pro-X System Stage 1

The Rock Krawler Suspension Bronco 3 Pro-X System Stage 1 is a revolutionary system for 6th Gen Bronco owners looking to increase their suspension performance by leaps and bounds with adjustable lift heights from 2-3 making it perfect for 35 to 37 tall tires with factory fenders and replace the weak factory components with the strongest components on the market. The triangulated 4 link rear design allows for amazing articulation without suspension bind.

The rear instant center and roll center are both enhanced to improve on highway ride and handling. The RRD 2.625 all aluminum remote reservoir coil overs are tuned for a incredible street ride and all out performance.

Rock Krawler is the first to introduce multiple spring rates on a single spring for 6th Gen Broncos which help with ride, handling, and off-road performance on the trails and in the dirt. You will experience 30 percent gains in dampening capacity and wheel travel.

The hard anodized aluminum bodies cool better than steel counterparts and will never rust nor corrode. The fabricated upper A arms correct caster/camber settings and account for the increases in travel.

They also have free rotating, service free Adventure Series joints at the frame and a rebuildable quiet control joint at the upright. The combination of free rotation, rebuild-ability, silent operation, increased performance and overall strength cannot be beat.

The rear control arms are made from solid alloy steel, have a durable black powder coat finish. Are you ready to bring your 6th Gen Bronco to the next level of tuned suspension performance?

Let's Go!

System Benefits:

• Rear Triangulated 4 Link Conversion Allowing Removal of the Pesky Rear Track Bar
• 2.625 RRD Remote Reservoir Coil Overs for Adjustable Lift Heights
• 30 percent+ Increase in Suspension Travel and Shock Dampening
• Multi-Rate Coil Over Coils
• Fabricated Upper A Arms with Free Rotating Pivots and Quiet Control Ball Joints Adjustable Solid Alloy Steel Rear Control Arms Amazing Highway Ride and Off-Road Performance All in One Package
• Lifetime Warranty Coverage

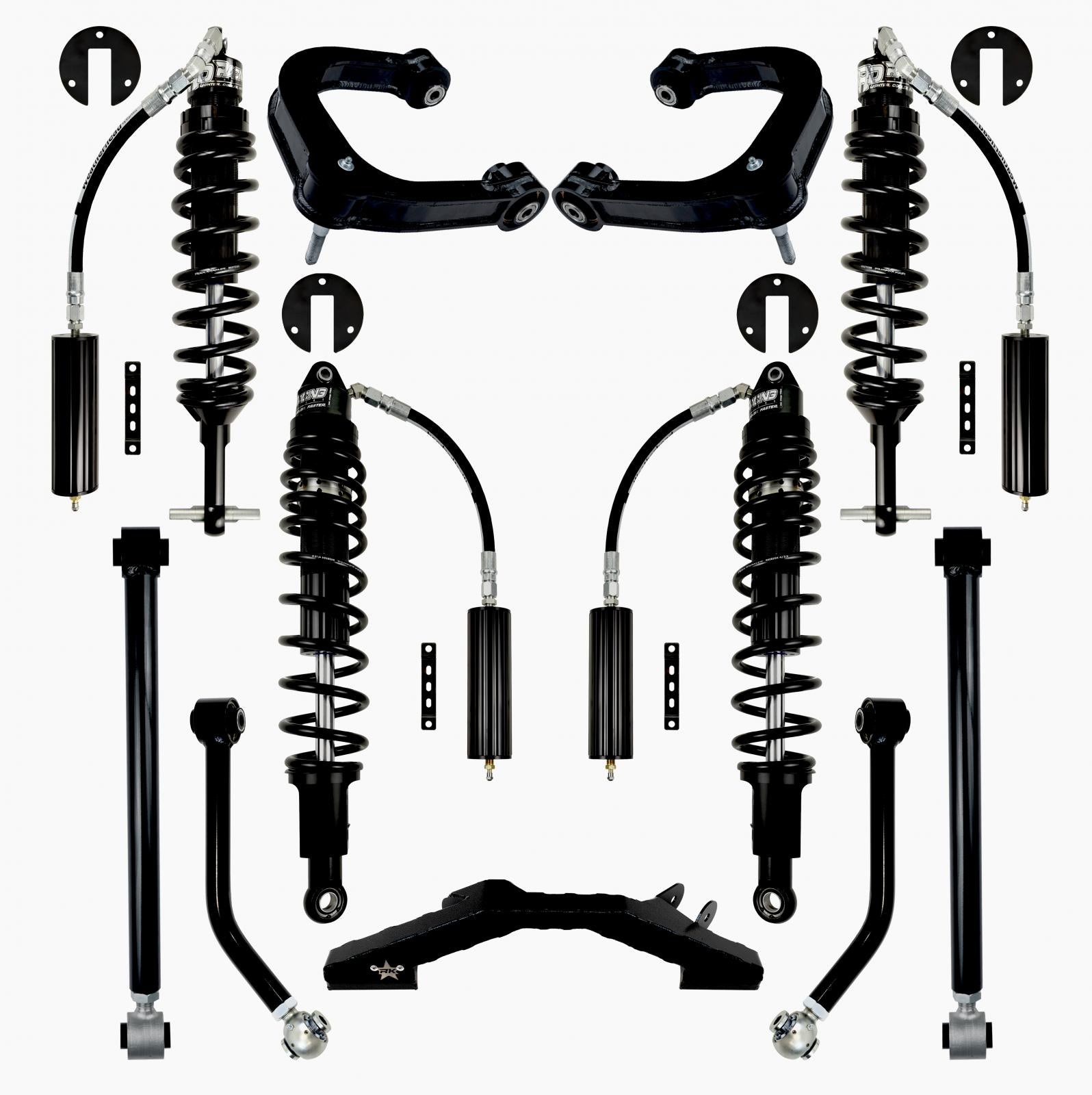

System Includes:

• (2) Front 2.625 Remote Reservoir Coil Over Assemblies
• (2) Rear 2.625 Remote Reservoir Coil Over Assemblies
• (2) Fabricated Front Upper A Arms
• (4) Adjustable Solid Alloy Steel Rear Control Arms
• (1) Weld on Rear Axle Truss

Shock Information:

• All RRD Shocks and Coilovers are designed and built in-house View detail here: RRD 2.625 RR Coilover Shocks

Wheel Fitment:

• We typically recommend 4.5 of backspacing on a wheel used with 35 & 37 tall tires

Tire Fitment:

• 35 to 37 Tires on OEM Fender Flare!

General Notes:

• Works on All Models but Raptor Broncos Requires Removal of Brackets off the Axle Requires Welding of the Rear Axle Truss High Recommend Having a Rear Sway Bar or Adding One if Bronco was not Originally Equipped

Specifications:
