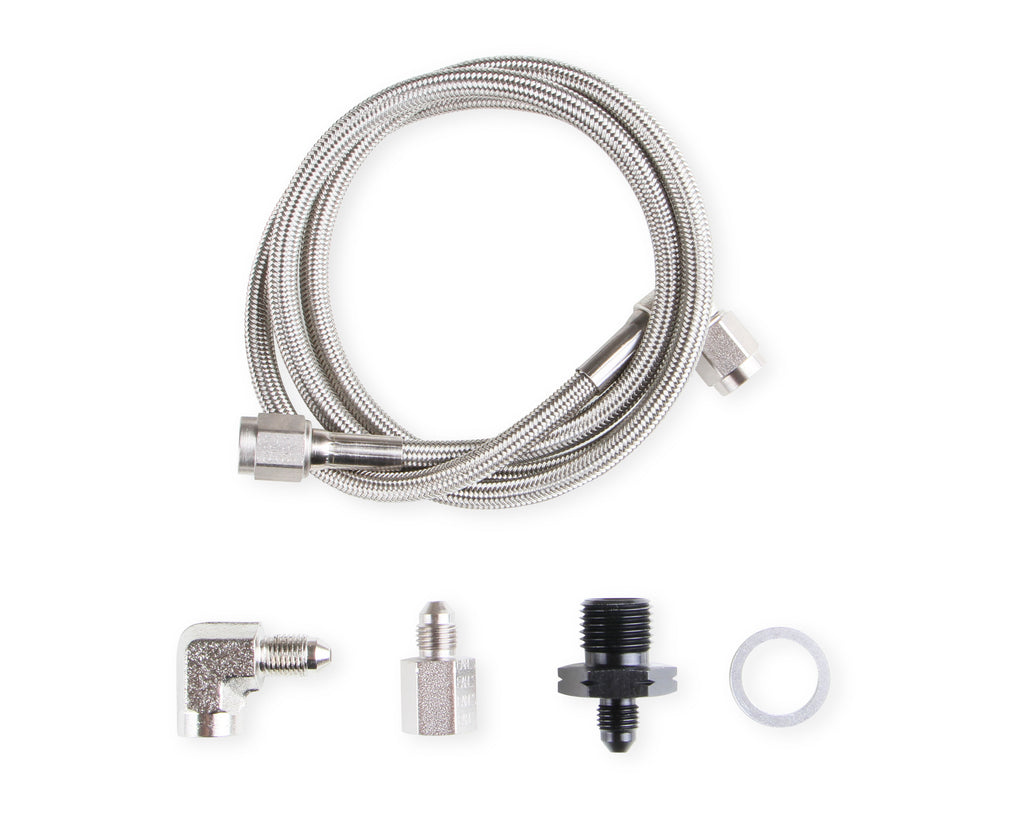

This handy kit from Earl's includes all the parts needed to install a mechanical oil pressure gauge on the GM LS engine. This kit includes the special 16mm x 1.5 adapter fitting w/ crush washer (fits oil passage at the top rear of the LS engine block), pre-made -3 AN Speed-Seal® hose assembly, and two adapters for the gauge end of the hose. Choose the kit that fits your vehicle application w/ 36", 48", or 72" long hose. This kit is ideal for engine swaps & race cars that use a mechanical oil pressure gauge w/ the GM LS engine.
Earl's Oil Pressure Gauge Installation Kit - GM LS w/ 72" Long Hose
CFRL_LS0034ERL
$75.84 USD
Description
Specifications:
| Adapter AN Size ( B ) | 3 AN MALE |
| Adapter NPT Size ( A ) | 1/8 NPT FEMALE |
| Adapter Type | Plumbing Kit |
| Brand | Earl's |
| Category | Gauges and Gauge Accessories |
| Emission Code | 5 |
| Finish | Black Anodized / Natural SS / Nickel |
| Hose Length | 6 Feet |
| Hose Size | 3 AN |
| Material | Multiple Materials |
| Product Type | Gauge Hose Kit |
| Warning | California Proposition 65 |
| Adapter AN Size ( B ) | 3 AN MALE |
| Adapter NPT Size ( A ) | 1/8 NPT FEMALE |
| Adapter Type | Plumbing Kit |
| Brand | Earl's |
| Category | Gauges and Gauge Accessories |
| Emission Code | 5 |
| Finish | Black Anodized / Natural SS / Nickel |
| Hose Length | 6 Feet |
| Hose Size | 3 AN |
| Material | Multiple Materials |
| Product Type | Gauge Hose Kit |
| Warning | California Proposition 65 |
| Description_INV | OBS GM LS OIL PRESSURE GAUGE HOSE KIT 6F |
| Description_ASC | The M16 Adapter that screws into the top rear of the block is a straight thread metric design that is sealed using the included crush washer (do not use sealant or PFTE tape on these threads). |
| Description_DES | Earl's Oil Pressure Gauge Installation Kit - GM LS w/ 72" Long Hose |
| Description_EXT | Use w/ Mechanical Oil Pressure Gauge - Includes (3) Adapters & -3 AN Speed-Seal® Stainless Braided PTFE Lined Hose Assembly - 72" Long. |
| Description_MKT | This handy kit from Earl's includes all the parts needed to install a mechanical oil pressure gauge on the GM LS engine. This kit includes the special 16mm x 1.5 adapter fitting w/ crush washer (fits oil passage at the top rear of the LS engine block), pre-made -3 AN Speed-Seal® hose assembly, and two adapters for the gauge end of the hose. Choose the kit that fits your vehicle application w/ 36", 48", or 72" long hose. This kit is ideal for engine swaps & race cars that use a mechanical oil pressure gauge w/ the GM LS engine. |
| Description_FAB | Kit Includes Adapters & Hose for Mechanical Oil Pressure Gauge Installation w/ GM LS Series Engines |
| Description_FAB | Includes Most Common Adapters Needed For Installation of Gauge |

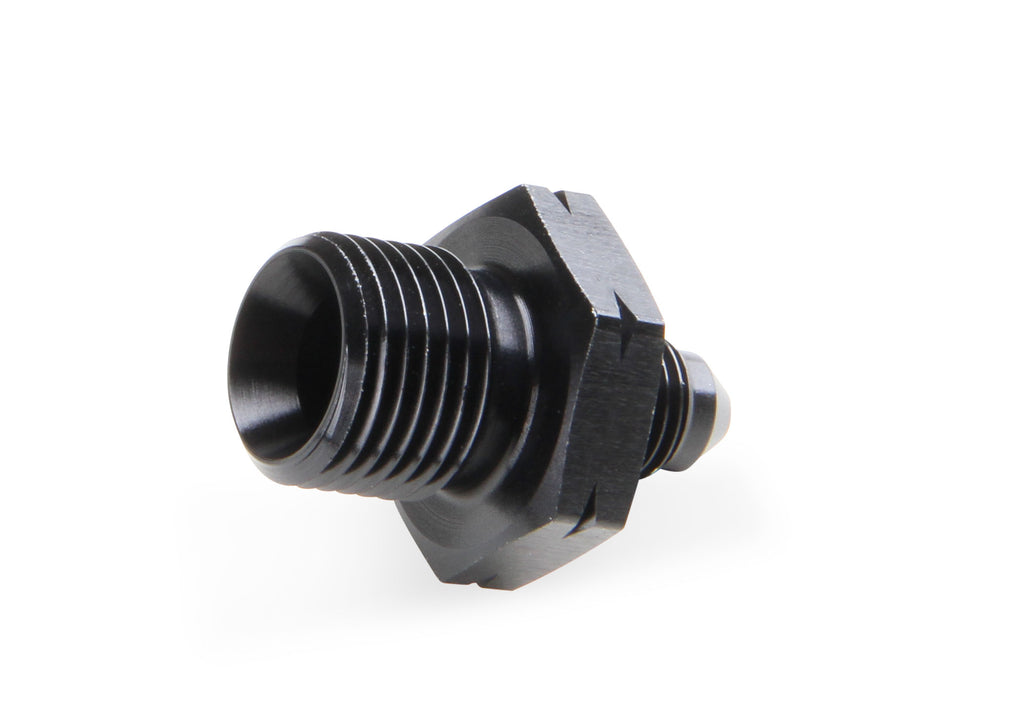

| Description_FAB | Block Adapter: -3 AN to M16 x 1.5 Aluminum w/ Black Anodized Finish (AT9919AFJERL) w/ Crush Washer |

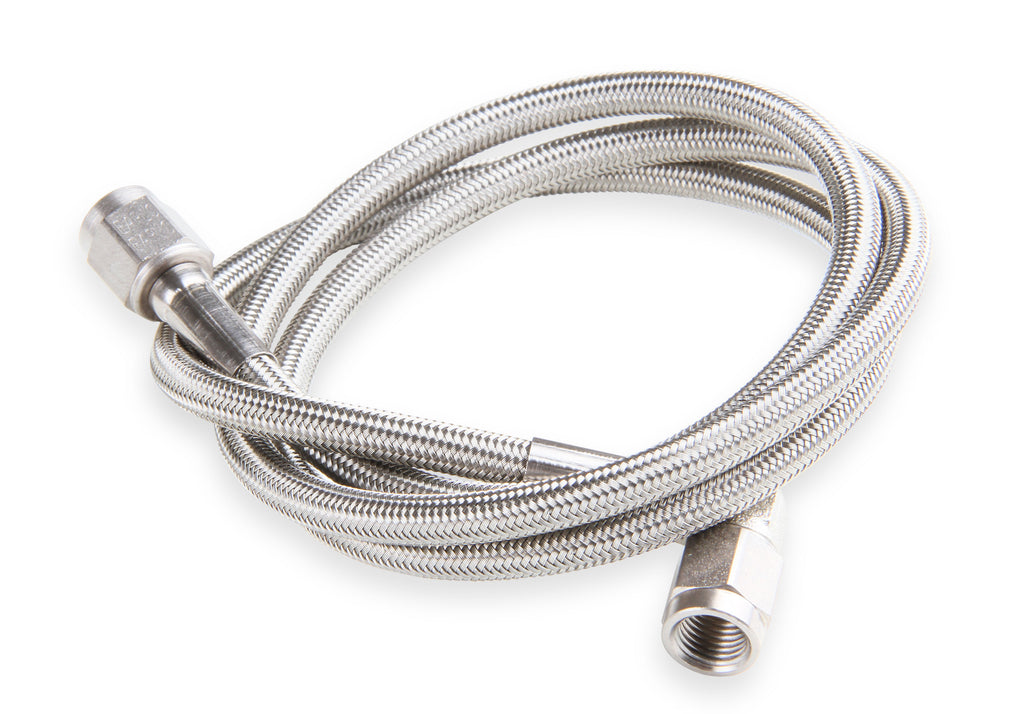

| Description_FAB | Pre-Made Crimped Style Speed-Seal® Hose Assembly -3 AN Straight to 90 Degree Ends |

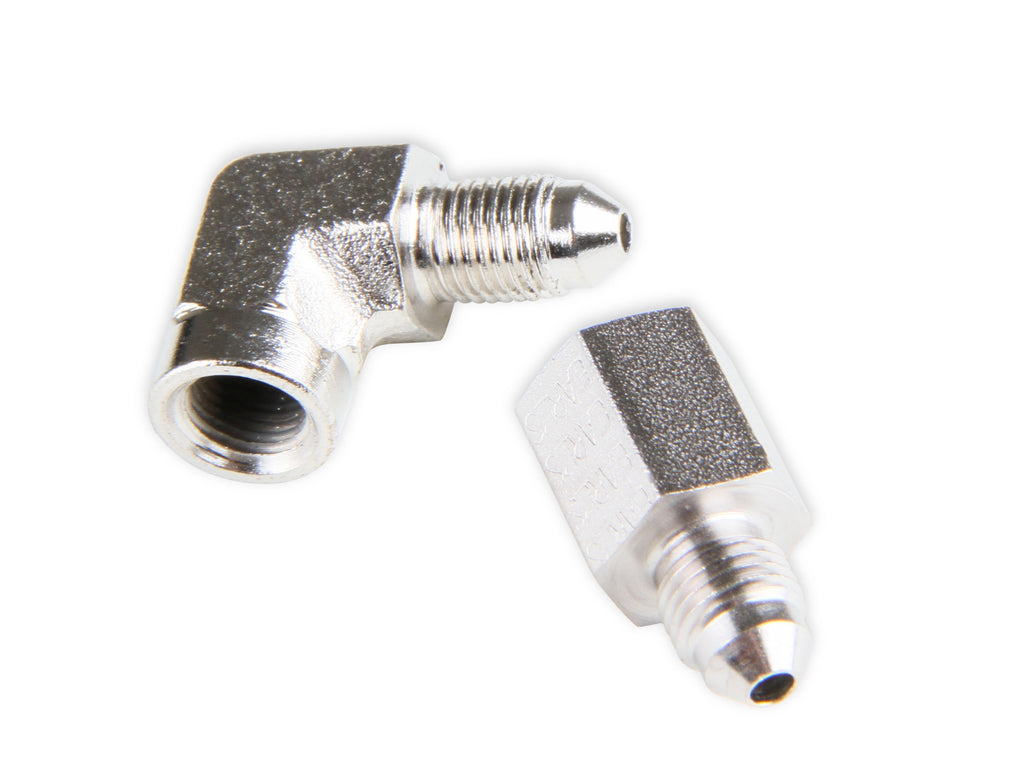

| Description_FAB | Gauge Adapters: -3 AN to 1/8" NPT Female Straight & 90 Degree (968703ERL & 968603ERL) Steel w/ Nickel Plating |
| Description_FAB | Ideal for Plumbing Mechanical Oil Pressure Gauge w/ 1/8" NPT Inlet Port |
| Description_FAB | Fits GM LS Series Engines |
| Description_INV | OBS GM LS OIL PRESSURE GAUGE HOSE KIT 6F |
| Description_ASC | The M16 Adapter that screws into the top rear of the block is a straight thread metric design that is sealed using the included crush washer (do not use sealant or PFTE tape on these threads). |
| Description_DES | Earl's Oil Pressure Gauge Installation Kit - GM LS w/ 72" Long Hose |
| Description_EXT | Use w/ Mechanical Oil Pressure Gauge - Includes (3) Adapters & -3 AN Speed-Seal® Stainless Braided PTFE Lined Hose Assembly - 72" Long. |
| Description_MKT | This handy kit from Earl's includes all the parts needed to install a mechanical oil pressure gauge on the GM LS engine. This kit includes the special 16mm x 1.5 adapter fitting w/ crush washer (fits oil passage at the top rear of the LS engine block), pre-made -3 AN Speed-Seal® hose assembly, and two adapters for the gauge end of the hose. Choose the kit that fits your vehicle application w/ 36", 48", or 72" long hose. This kit is ideal for engine swaps & race cars that use a mechanical oil pressure gauge w/ the GM LS engine. |
| Description_FAB | Kit Includes Adapters & Hose for Mechanical Oil Pressure Gauge Installation w/ GM LS Series Engines |
| Description_FAB | Includes Most Common Adapters Needed For Installation of Gauge |
| Description_FAB | Block Adapter: -3 AN to M16 x 1.5 Aluminum w/ Black Anodized Finish (AT9919AFJERL) w/ Crush Washer |
| Description_FAB | Pre-Made Crimped Style Speed-Seal® Hose Assembly -3 AN Straight to 90 Degree Ends |
| Description_FAB | Gauge Adapters: -3 AN to 1/8" NPT Female Straight & 90 Degree (968703ERL & 968603ERL) Steel w/ Nickel Plating |
| Description_FAB | Ideal for Plumbing Mechanical Oil Pressure Gauge w/ 1/8" NPT Inlet Port |
| Description_FAB | Fits GM LS Series Engines |
