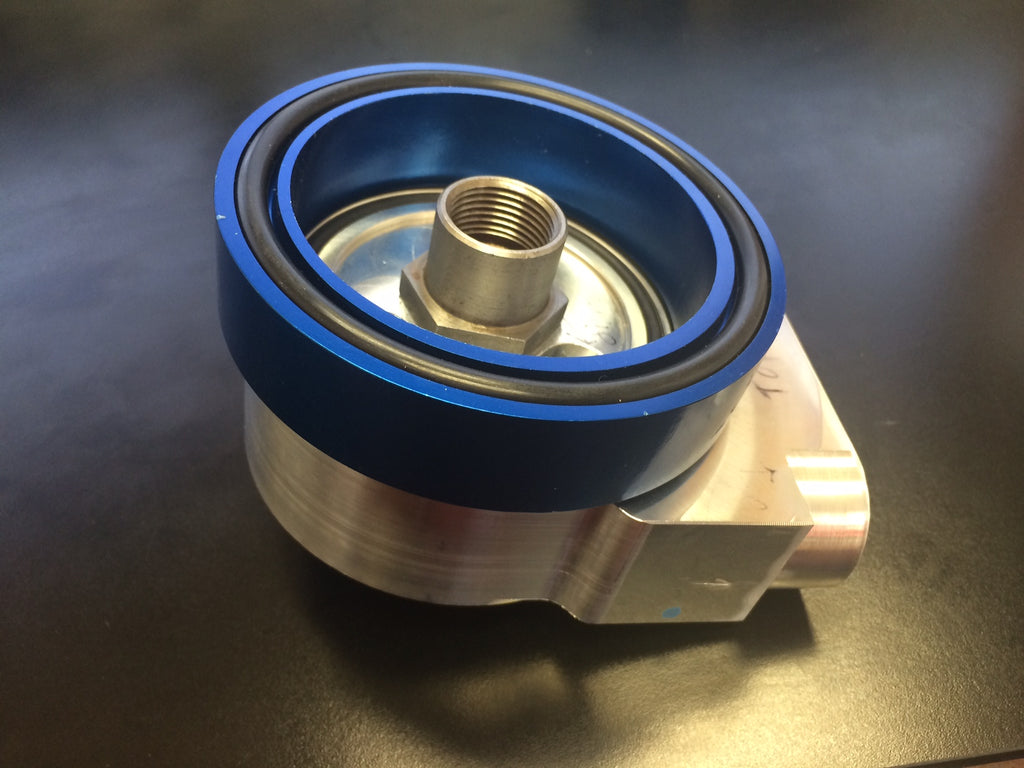

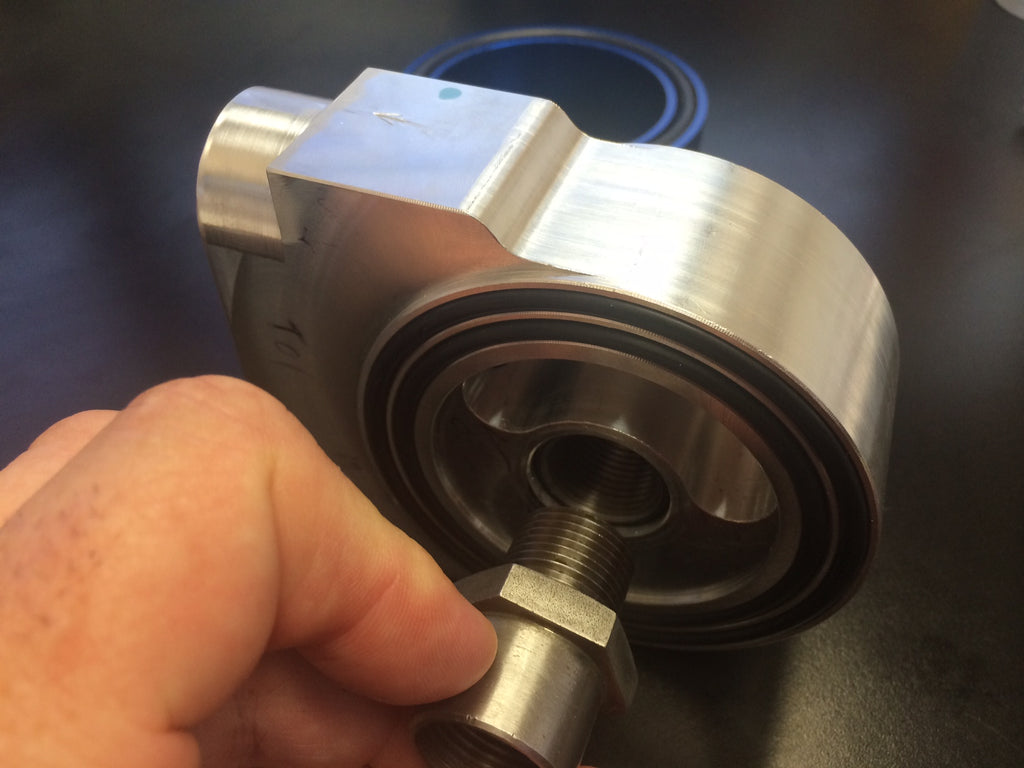

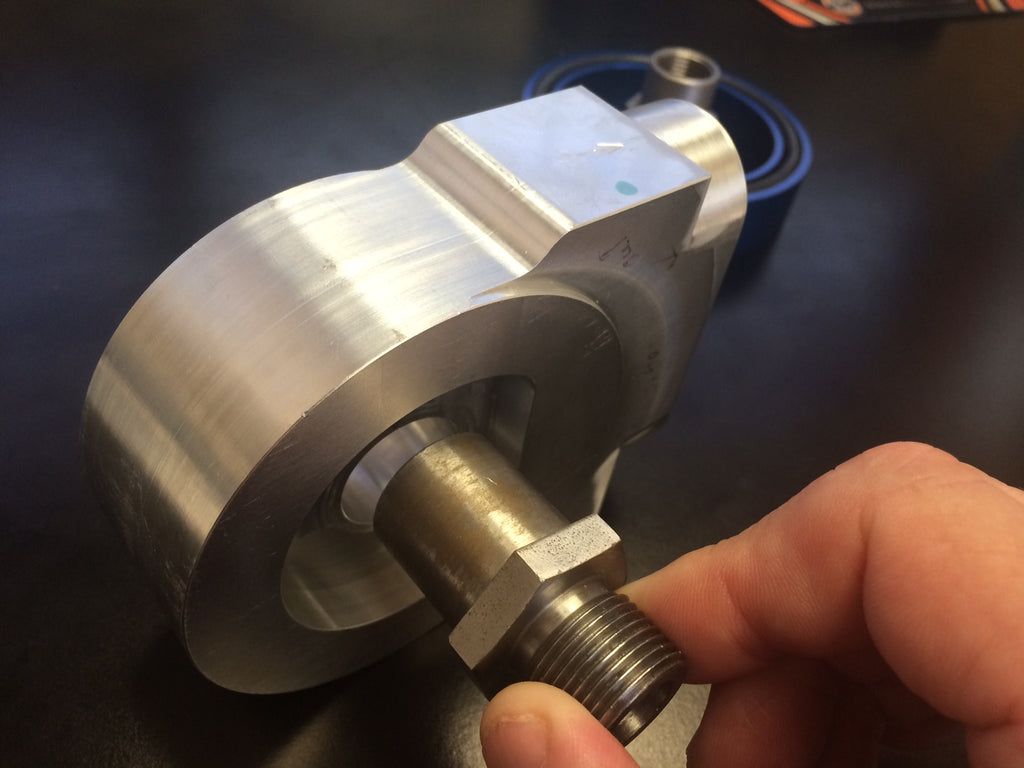

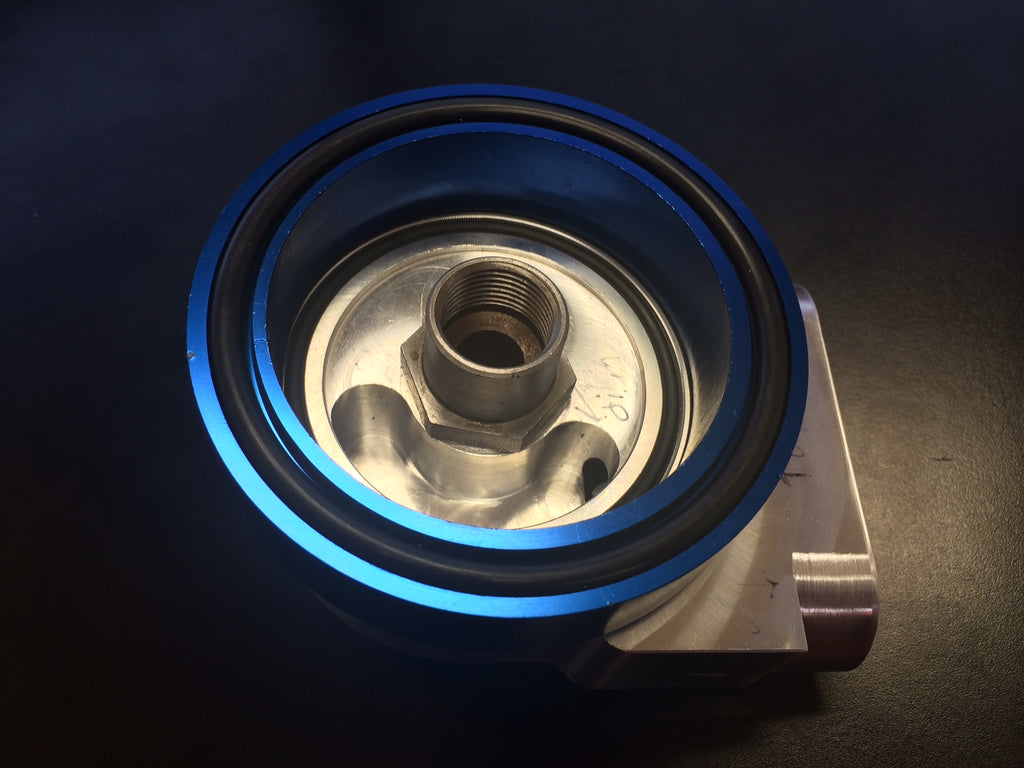

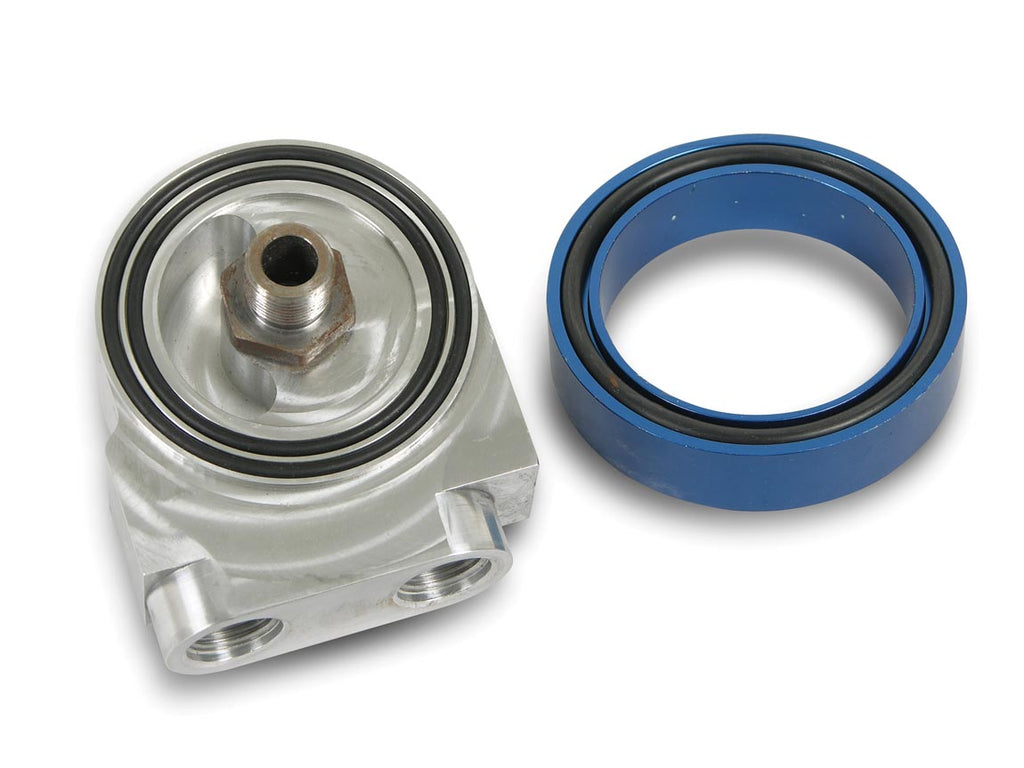

These billet aluminum units facilitate quick oil warm up. Opening starts at 160°F (71.1C) and they are fully open at 180°F (82.2C). Comes with optional spacer for accommodate multiple engine block castings.
Earl's Billet Oil Thermostat
CFRL_504ERL
$185.00 USD
Description
Specifications:
| Brand | Earl's |
| Category | Cooling |
| Center Stud Diameter | 13/16-16 |
| Emission Code | 5 |
| Finish | Natural |
| Fully Open | 180 Degrees Farenheit |
| Inner O-Ring Diameter | 2.887 Inches |
| Material | Billet Aluminum |
| O-Ring Cross Section | .139 Inches |
| Outer O-Ring Diameter | 3.387 Inches |
| Port Size | 7/8-14 Female (-10 O-Ring Boss) |
| Product Type | Oil Cooler |
| Spacer O-Ring Cross Sect. | .210 Inches |
| Spacer O-Ring Diameter | 3.770 Inches |
| Starts to open | 160 Degrees Farenheit |
| Brand | Earl's |
| Category | Cooling |
| Center Stud Diameter | 13/16-16 |
| Emission Code | 5 |
| Finish | Natural |
| Fully Open | 180 Degrees Farenheit |
| Inner O-Ring Diameter | 2.887 Inches |
| Material | Billet Aluminum |
| O-Ring Cross Section | .139 Inches |
| Outer O-Ring Diameter | 3.387 Inches |
| Port Size | 7/8-14 Female (-10 O-Ring Boss) |
| Product Type | Oil Cooler |
| Spacer O-Ring Cross Sect. | .210 Inches |
| Spacer O-Ring Diameter | 3.770 Inches |
| Starts to open | 160 Degrees Farenheit |
| Description_INV | OBS THERMOSTAT SANDWICH ADAPTER |
| Description_ASC | Fits most Chevrolet V8's with spin-on oil filter. 1968-2000 Small Block Chevy and 1968-1990 Big Block Chevy. NOTE: some 1990 and later may have metric threads. Will not accommodate metric center posts. Mount between the oil filter mounting boss and the oil filter itself. |
| Description_DES | Earl's Billet Oil Thermostat |
| Description_EXT | Billet Aluminum Sandwich Style Oil Thermostat with 13/16-16 Center Post, and 10 AN Female O-Ring Seals on the inlets and outlets. |
| Description_MKT | These billet aluminum units facilitate quick oil warm up. Opening starts at 160°F (71.1C) and they are fully open at 180°F (82.2C). Comes with optional spacer for accommodate multiple engine block castings. |
| Description_FAB | Made For Most Typical Applications |
| Description_FAB | Billet Aluminum Sandwich Style |
| Description_FAB | Facilitate Quick Oil Warm-Up |
| Description_INV | OBS THERMOSTAT SANDWICH ADAPTER |
| Description_ASC | Fits most Chevrolet V8's with spin-on oil filter. 1968-2000 Small Block Chevy and 1968-1990 Big Block Chevy. NOTE: some 1990 and later may have metric threads. Will not accommodate metric center posts. Mount between the oil filter mounting boss and the oil filter itself. |
| Description_DES | Earl's Billet Oil Thermostat |
| Description_EXT | Billet Aluminum Sandwich Style Oil Thermostat with 13/16-16 Center Post, and 10 AN Female O-Ring Seals on the inlets and outlets. |
| Description_MKT | These billet aluminum units facilitate quick oil warm up. Opening starts at 160°F (71.1C) and they are fully open at 180°F (82.2C). Comes with optional spacer for accommodate multiple engine block castings. |
| Description_FAB | Made For Most Typical Applications |
| Description_FAB | Billet Aluminum Sandwich Style |
| Description_FAB | Facilitate Quick Oil Warm-Up |
