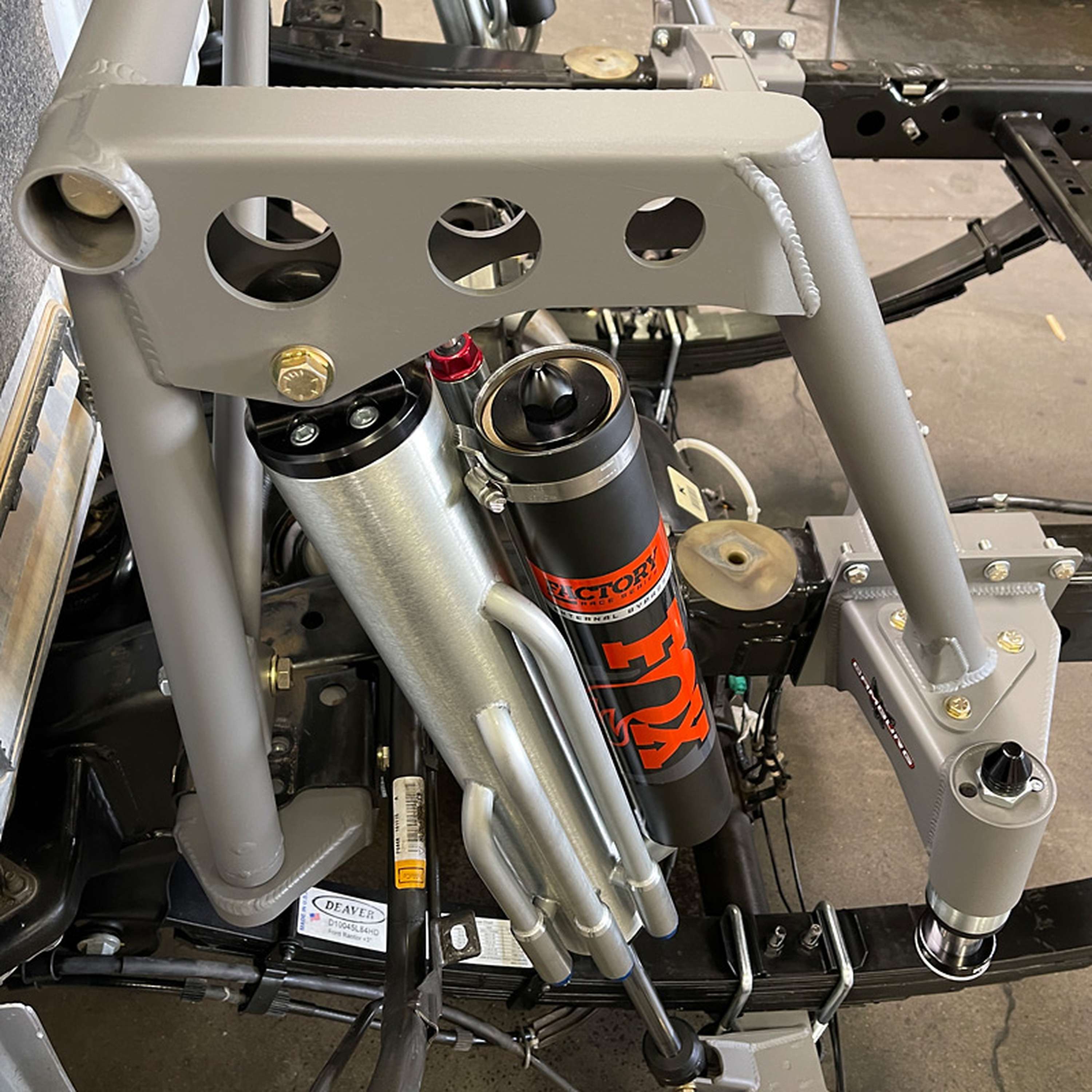

These Camburg/FOX 4.0 bypass shocks are custom built for our Ford Raptor bedcage system yielding maximum wheel travel, damping control and bottoming resistance. These are not universal off the shelf shocks as our bypass tube layout, valving and dimensions are specific for our kit. These have larger 1 in. bypass tubes (3 compression & 2 rebound) for maximum flow and progression along with a larger 3.5 in. diameter piggyback reservoir for a higher oil and nitrogen capacity. The external bypass tubes allow you to adjust the ride based on your use and are position sensitive. All this adds up to the best shocks on the market for your Ford Raptor. These are sold as a pair and include specific left and right shocks.
Camburg Ford Raptor 17-20 Long Travel Bedcage w/ FOX 4.0 P/B
GJCN_CAM-120030-2
$6,519.90 USD
Description
Specifications:
| Description_ASC | [B@5061d770 |
| Description_DEF | [B@1065efa7 |
| Description_DES | [B@62311456 |
| Description_EXT | [B@41defdb7 |
| Description_FAB | [B@1fda78ab |
| Description_FAB | [B@20fda420 |
| Description_FAB | [B@4a8487cd |
| Description_INV | [B@7c01f86f |
| Description_KSW | [B@3052d864 |
| Description_LAB | [B@7dc3b6ea |
| Description_MKT | [B@1317fc70 |
| Description_SHO | [B@6026acfd |
| Description_TLE | [B@4691c965 |
| Active or Passive Suspension | Passive |
| Bladder Sleeve(s) Included | No |
| Bladder(s) Included | No |
| Body Diameter | 4.0 |
| Boot Included | No |
| Coil Spring Insulator(s) Included | No |
| Color | Gray |
| Dust Shield Included | No |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Mounting Hardware Included | Yes |
| Shaft Material | Stainless Steel |
| Shock Absorber Body End Measuring Point | Bottom |
| Shock Absorber Rod End Measuring Point | Bottom |
| Strut Mount Insulator(s) Included | No |
| Mounting Hardware Included | No |
| Self-Leveling | Yes |
| Body Material | Cerakoted Steel |
| Compressed Length | 27.97" |
| Cylinder Finish | Coated |
| Dust Shield Diameter | Not Included |
| Extended Length | 43.97" |
| Hardware Included | No |
| Manufacturer | FOX |
| Material | Carbon Steel |
| Shock Diameter | 4.0" |
| Title | Camburg Engineering Ford Raptor 2017-2020 FOX 4.0 Rear Bypass Piggyback L/T Shocks CAM-120030-2 |
| Type | Performance |
| Universal Or Specific Fit | Specific |
| Prop 65 Y/N | No |
| Reservoir Type | Piggyback |
