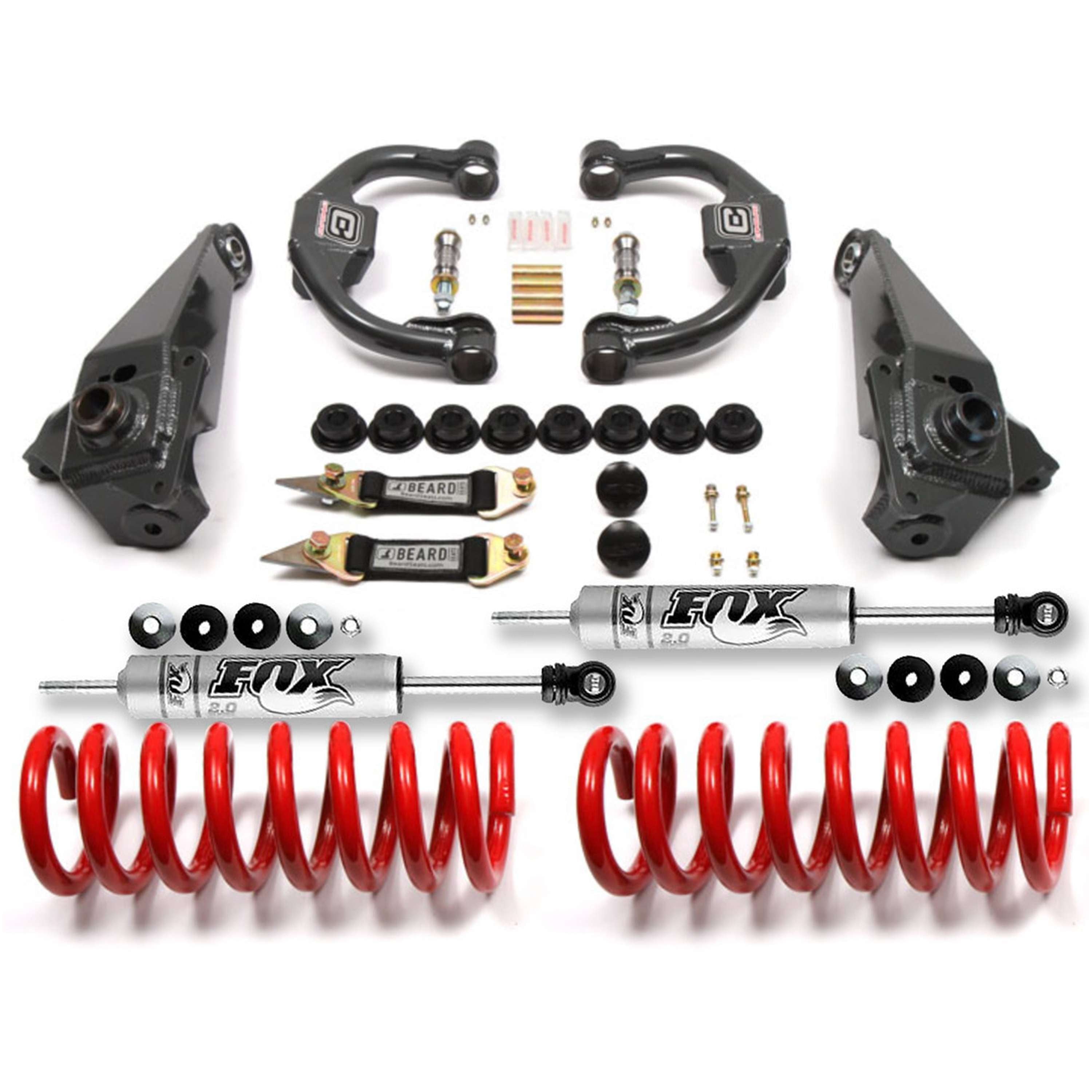

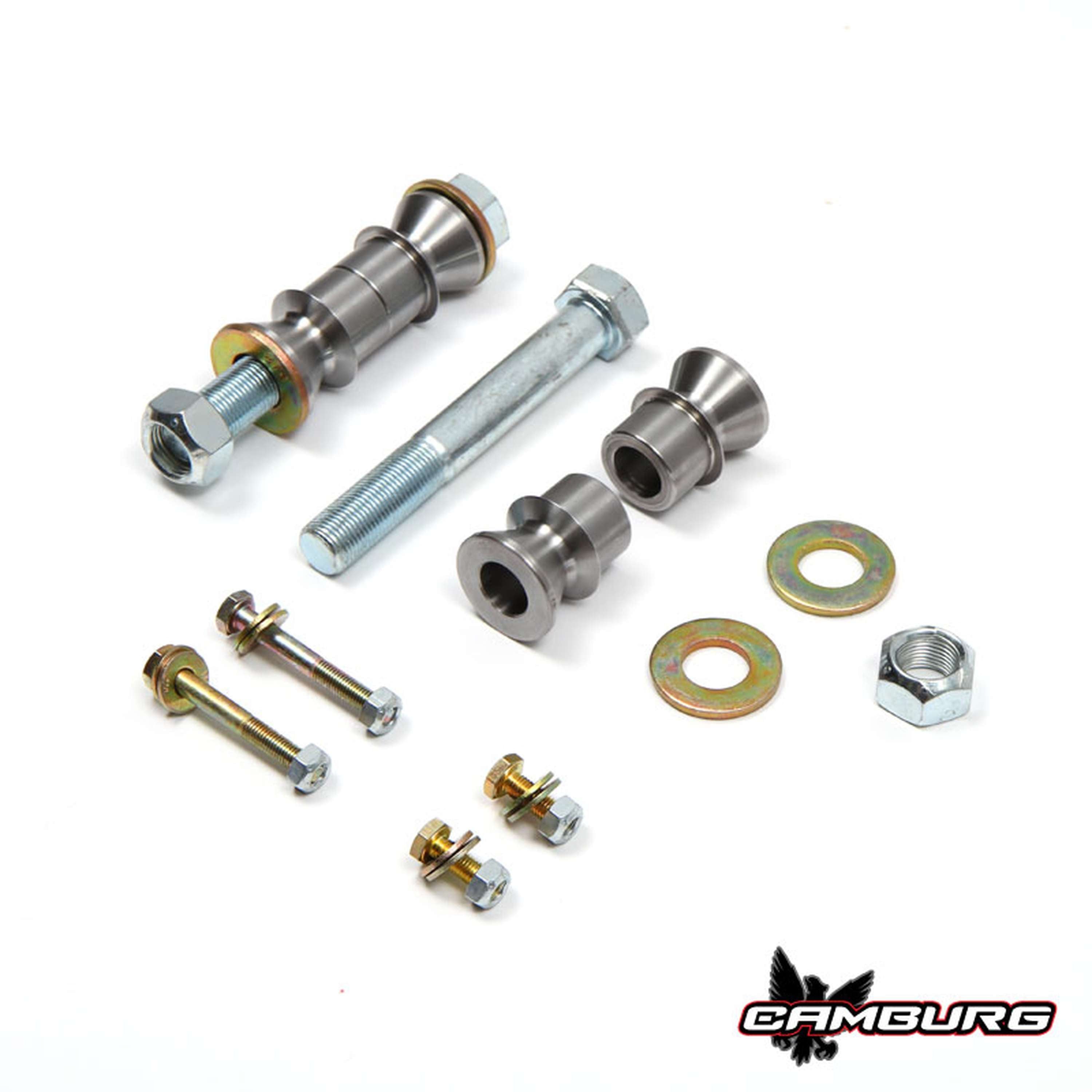

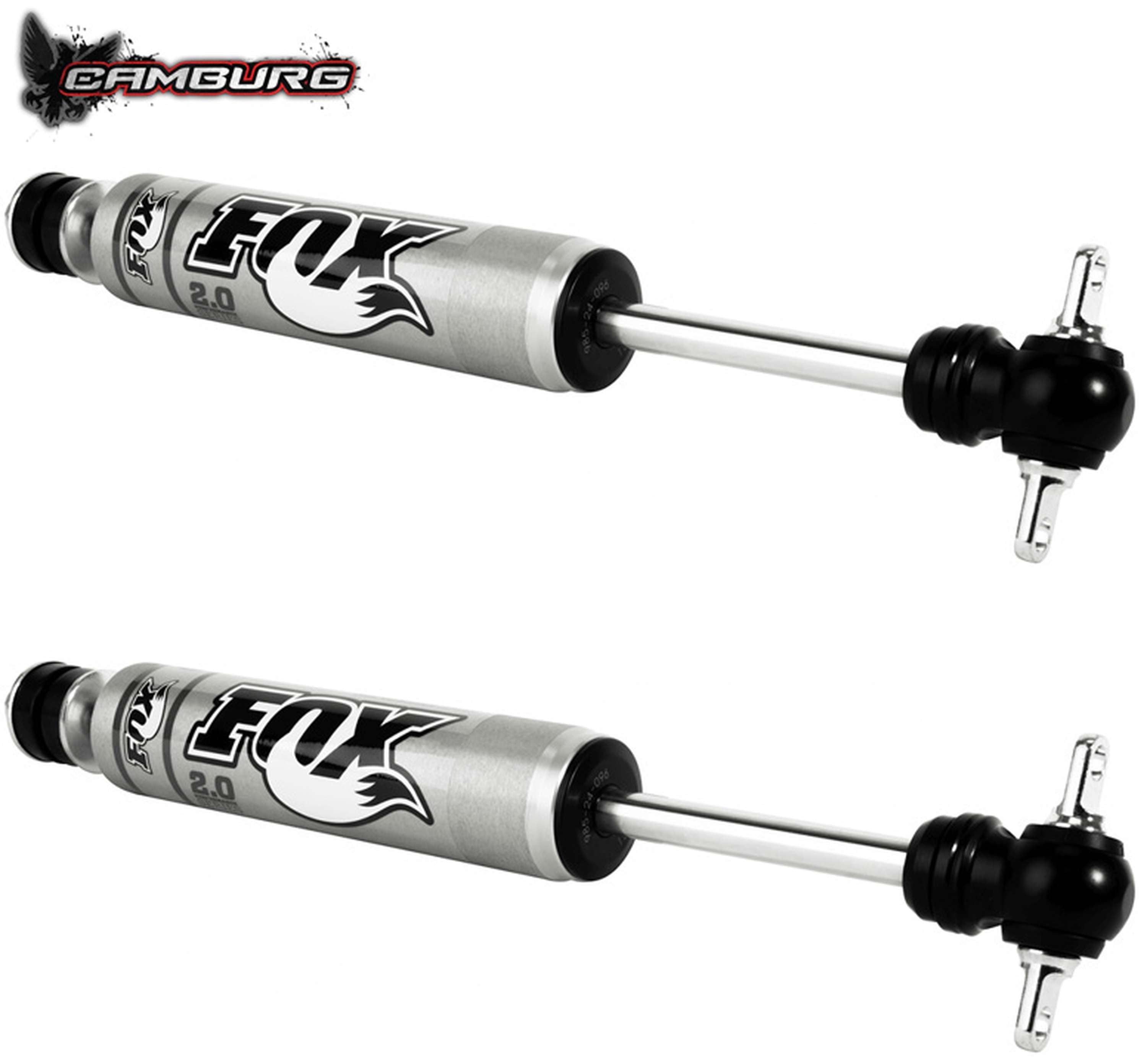

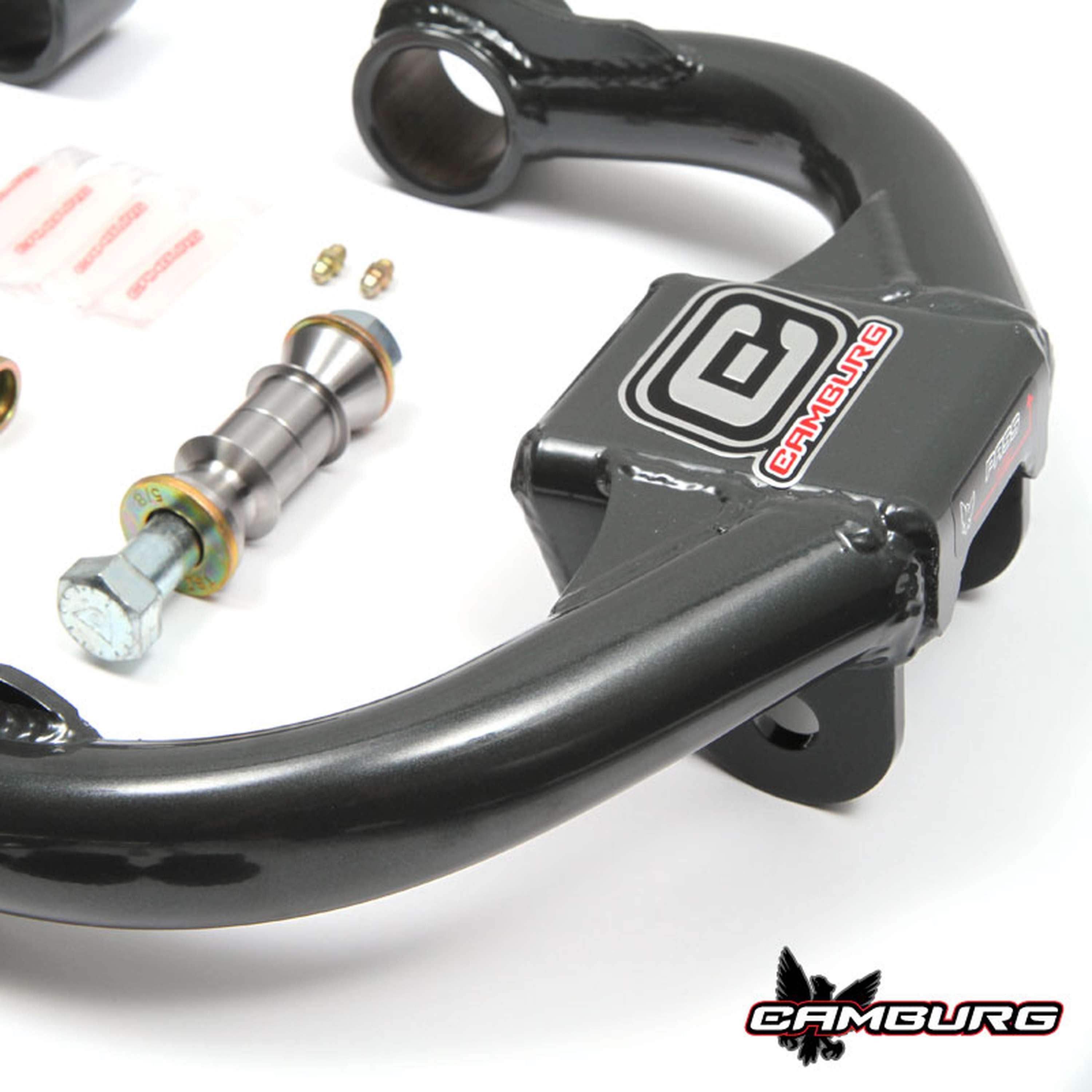

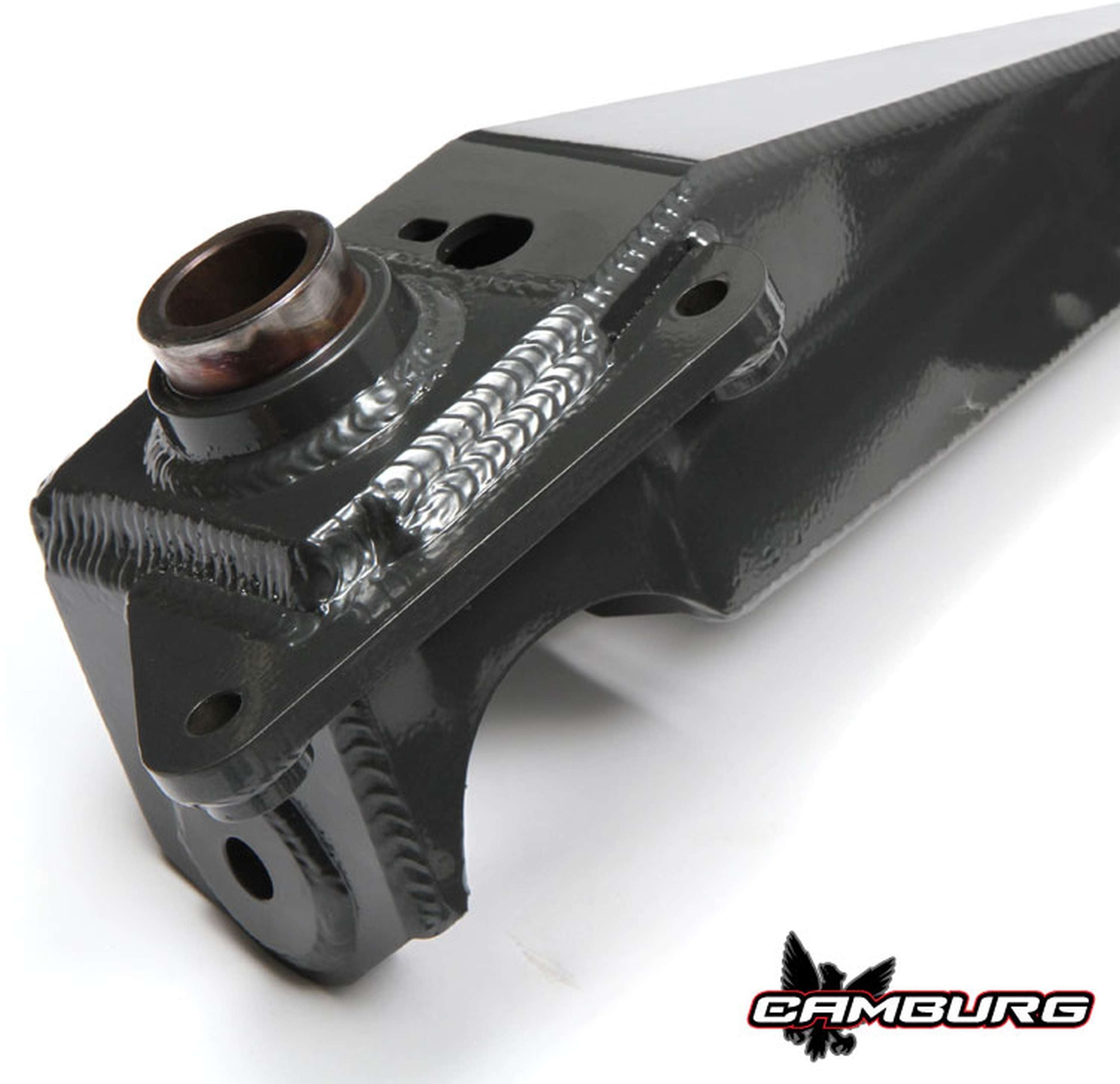

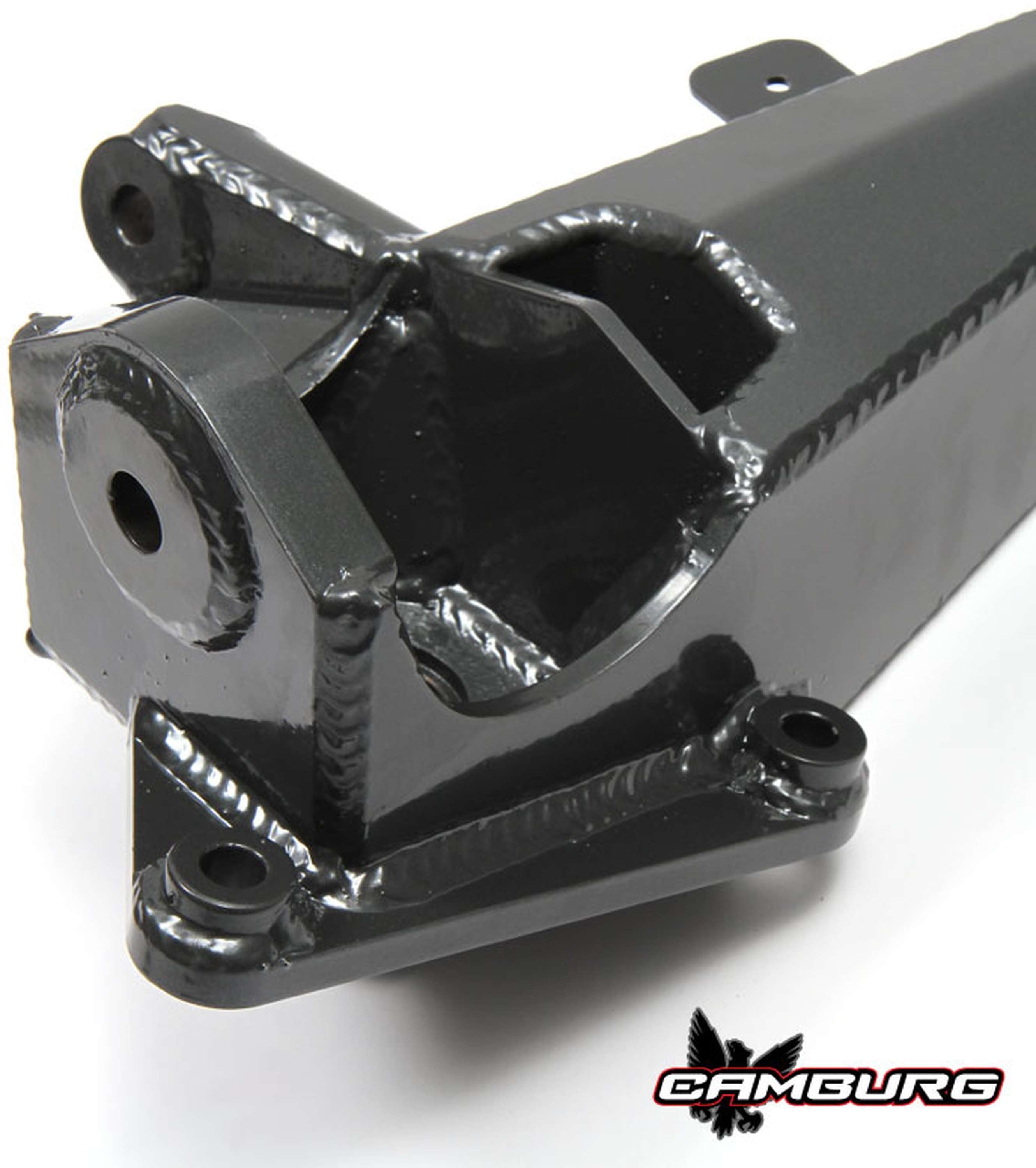

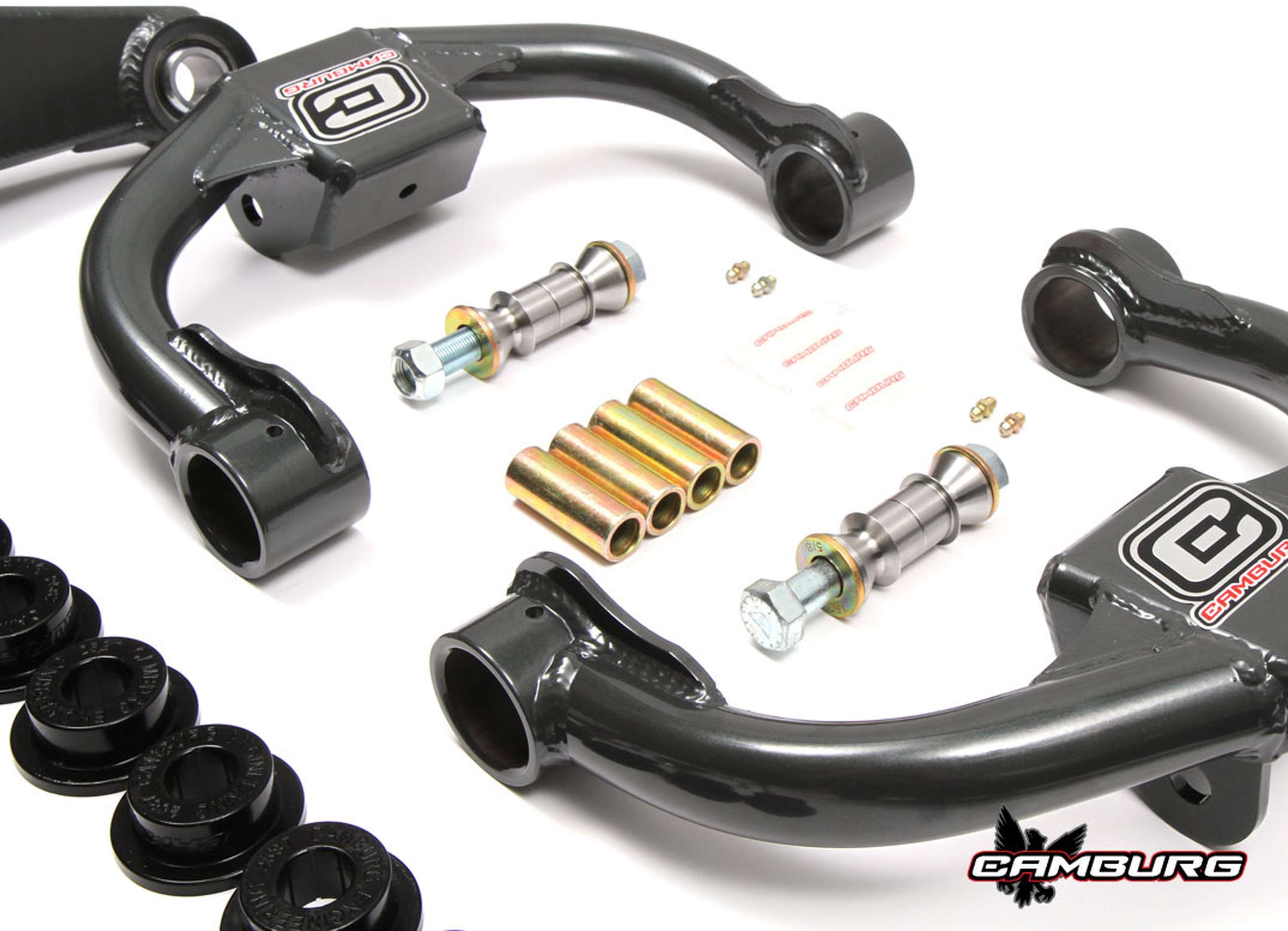

Our 5.5 kit for the RWD Ford Rangers set the bar years ago as the best performance kit available. The kit uses our 3" lift fabricated race spindles with a massive 1" vertical uniball that replaces the weak upper ball-joint that is prone to fail. This allows for 10" of useable wheel travel. The upper arms are made from 1.50" x.120 wall 4130 chromoly tubing and double shears the uniball. We use FOX 2.0 series for added control that bolt right in and are valved for this kit. Our coil springs provide 2.5" lift and are heat-treated and stress relieved. Track width is  increased 1.5" per side giving you a wider stance for better stability and added wheel travel. This is why Fiberglass front fenders are highly recommended. We now include our weld-on upper frame gusset reinforcement kit. This kit fits RWD Rangers with coil springs only. For torsion bar trucks use our Ranger Edge 6.0 kits. 1998-2000 models require the larger 2001+ 11.25" OD brake rotors Must re-use the factory OEM spindle snouts/pins. Aftermarket versions will not work Fiberglass front fenders required to run 33" tires.
Camburg Ford Ranger XLT 2wd '01-12 FOX Performance 5.50" Kit
GJCN_CAM-110007-2
$3,055.99 USD
Description
Specifications:
| Bushings Included | Yes |
| Coil Spring End 1 Type | Open |
| Coil Spring End 2 Type | Open |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 0 |
| Grade Type | Performance |
| Maximum Lift | 5.5 |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| Spring Color | Red |
| Spring Material | Spring Steel |
| Strut(s) Included | No |
| Air Adjustable | No |
| Coil Spring Color | Red |
| Coil Spring Material | Spring Steel |
| Control Arm Color | Black |
| Control Arm Type | Tubular |
| Front Shock Type | 2.0 |
| Front Springs Included | Yes |
| Hardware Included | Yes |
| Joint Type | Uniball |
| Lift | 5.5 |
| Load Rate | N/A |
| Prop 65 Y/N | No |
| Rear Shock Type | N/A |
| Rear Shocks Included | No |
| Rear Springs Included | No |
| Shock Brand | FOX |
| Shock Type | 2.0 Performance Series |
| Spring Load | N/A |
| Spring Rate | N/A |
| Title | Camburg Engineering 2WD 2001-2012 Ford Ranger FOX 2.0 Performance Lift Kit CAM-110007-2 |
| Description_ASC | [B@730d675d |
| Description_DEF | [B@4cad38a2 |
| Description_DES | [B@20f3a45a |
| Description_EXT | [B@5518f079 |
| Description_FAB | [B@4d375208 |
| Description_FAB | [B@687a0b24 |
| Description_FAB | [B@5516b305 |
| Description_INV | [B@479f1ae6 |
| Description_KSW | [B@304fa70f |
| Description_LAB | [B@854a909 |
| Description_MKT | [B@683abd9d |
| Description_SHO | [B@57cdc256 |
| Description_TLE | [B@1af7607f |
