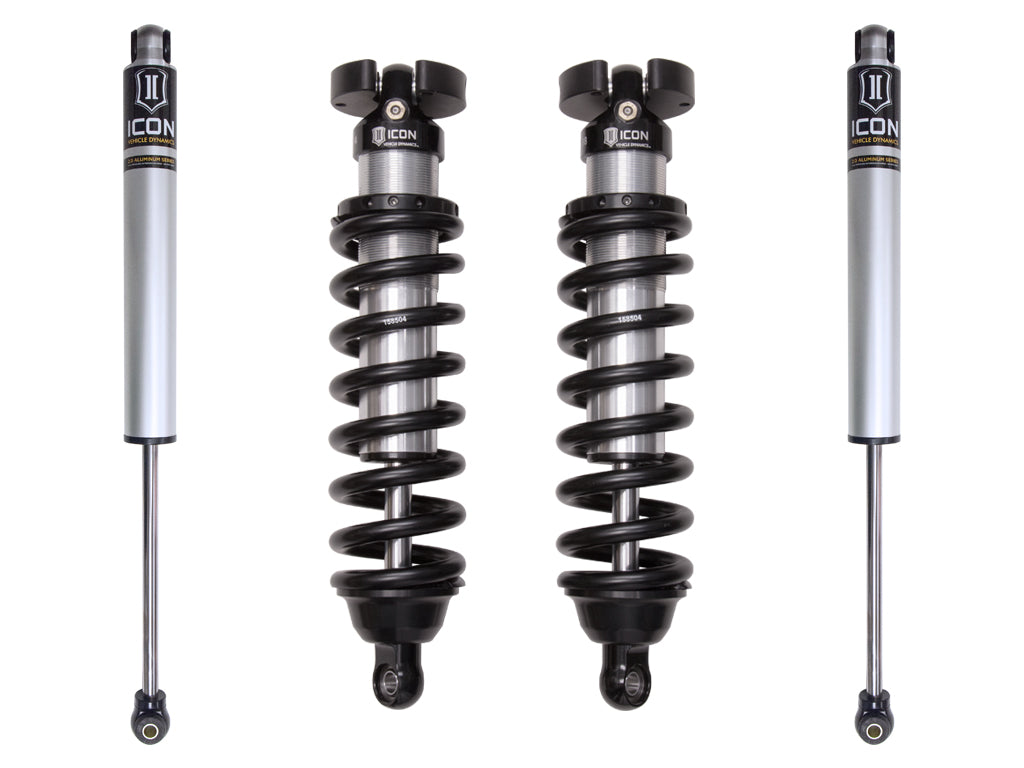

95.5-04 Tacoma 0-3 Inch Stage 1 Suspension System Icon Vehicle Dynamics
FRDK_K53011
Sale price
$1,909.65 USD
Regular price
$2,005.13 USD
Description
ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.
The Stage 1 system includes vehicle-specific tuned 2.5 Inch coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle Inchfeel Inch through the range of travel. These coilovers are also height adjustable from 0-3 Inch allowing the use of larger, more aggressive wheel and tire combinations.
ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics '96-'04 Toyota Tacoma 4WD/PreRunner Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Features and Benefits:- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers from 0-3 Inch of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8 Inch hardened chrome shaft
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 aluminum body rear Emulsion shock with 5/8 Inch polished chrome plated steel shaft
- 100 Percent Bolt-on system - no drilling, cutting, or welding necessary for install
- Active Or Passive Suspension: Passive
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- Bushings Included: Yes
- Coils Quantity Front: 2.0
- Front Reservoir Style: Internal
- Front Shock Body Diameter: 2.5
- Front Spring Rate Type: Linear
- Grade Type: Performance
- Maximum Lift: 3.0 Inch
- Maximum Lift Front: 3.0 Inch
- Minimum Lift Front: 0.0 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Rear Shock Body Diameter: 2.0
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: Icon Alloys - 20x9 With 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 With 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 With 5 Inch Backspace / 0mm Offset
- Reservoir Style: Emulsion
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Spring Rate: 650.0
- Add On Part: 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 58500DJ - 96-04 Tacoma/96-02 4RNR Billet UCA Dj Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 48400DJ - 21-23 Bronco Tubular UCA Dj Pro Kit, 51045 - Toyota .25 Inch Bump Stop Spacer Kit, 158508 - Coil Spring 1400.0300.0700 Black
Specifications:
| Country of Origin | USA |
| Sold As | Each |
| UPC | 840103416557 |
| Availability | Available |
| Location | Front and Rear |
| Universal | No |
