91-97 Land Cruiser 80 Series 3 Inch Stage 2 Suspension System Icon Vehicle Dynamics
FRDK_K53092
Sale price
$3,620.60 USD
Regular price
$3,801.63 USD
Description

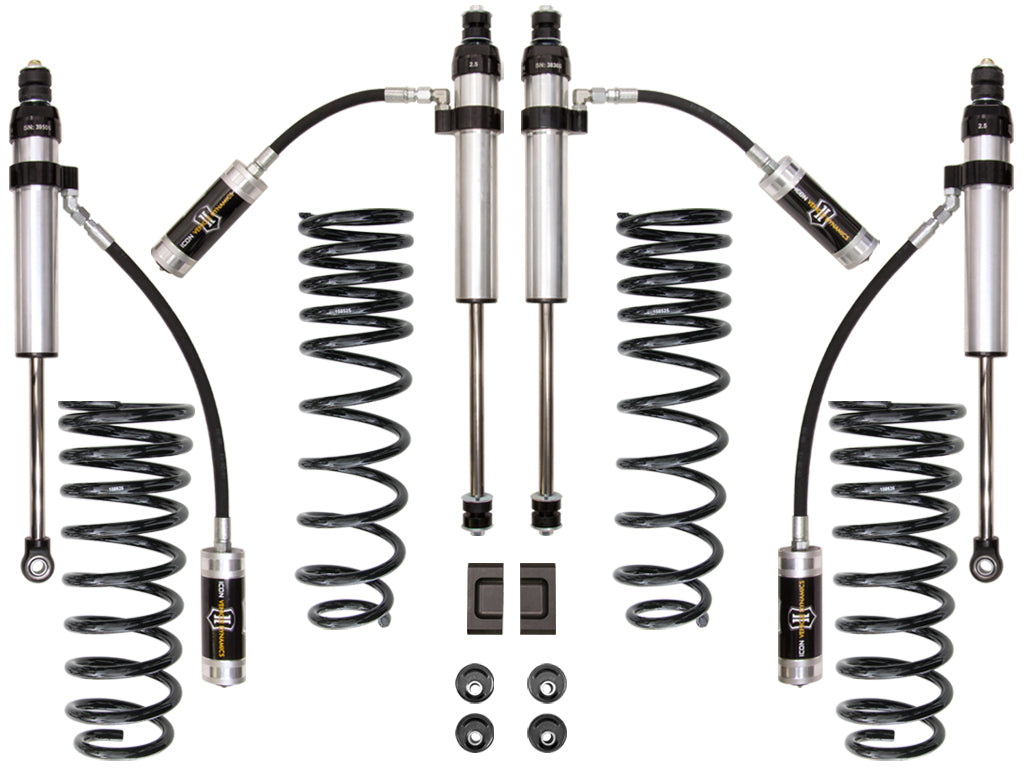

After an in-depth R&D process, ICON engineers have developed a 3 Inch suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser's off-road potential. This Stage 2 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.5 Aluminum Series remote reservoir shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear.
The 2.5 Inch remote reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. This ICON Stage 2 System is the perfect suspension system for drivers seeking a quality on-road ride with outstanding off-road performance under extreme use.
Features and Benefits:- 3 Inch lift height
- Approximately 40 Percent increased front wheel travel over stock
- Approximately 35 Percent increased rear wheel travel over stock
- ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance
- Vehicle specific tuned 2.5 Series front and rear shocks offer superior shock damping and control
- 2.5 body remote reservoir shocks with 7/8 Inch shafts
- 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- 6061 aircraft grade aluminum CNC machined components
- 100 Percent bolt-on design means no drilling, cutting or welding necessary for install
- Bushings Included: Yes
- Coils Quantity Front: 2.0
- Coils Quantity Rear: 2.0
- Dual Rate Coil Springs: Yes
- Grade Type: Performance
- Maximum Lift: 3.0 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: 17x8.5 Inch W/ 4.63 Inch Backspace
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 252012 - -4 To -10 Hose Shield Kit
Specifications:
| Country of Origin | USA |
| Sold As | Each |
| UPC | 840103417196 |
| Availability | Available |
| Universal | No |
