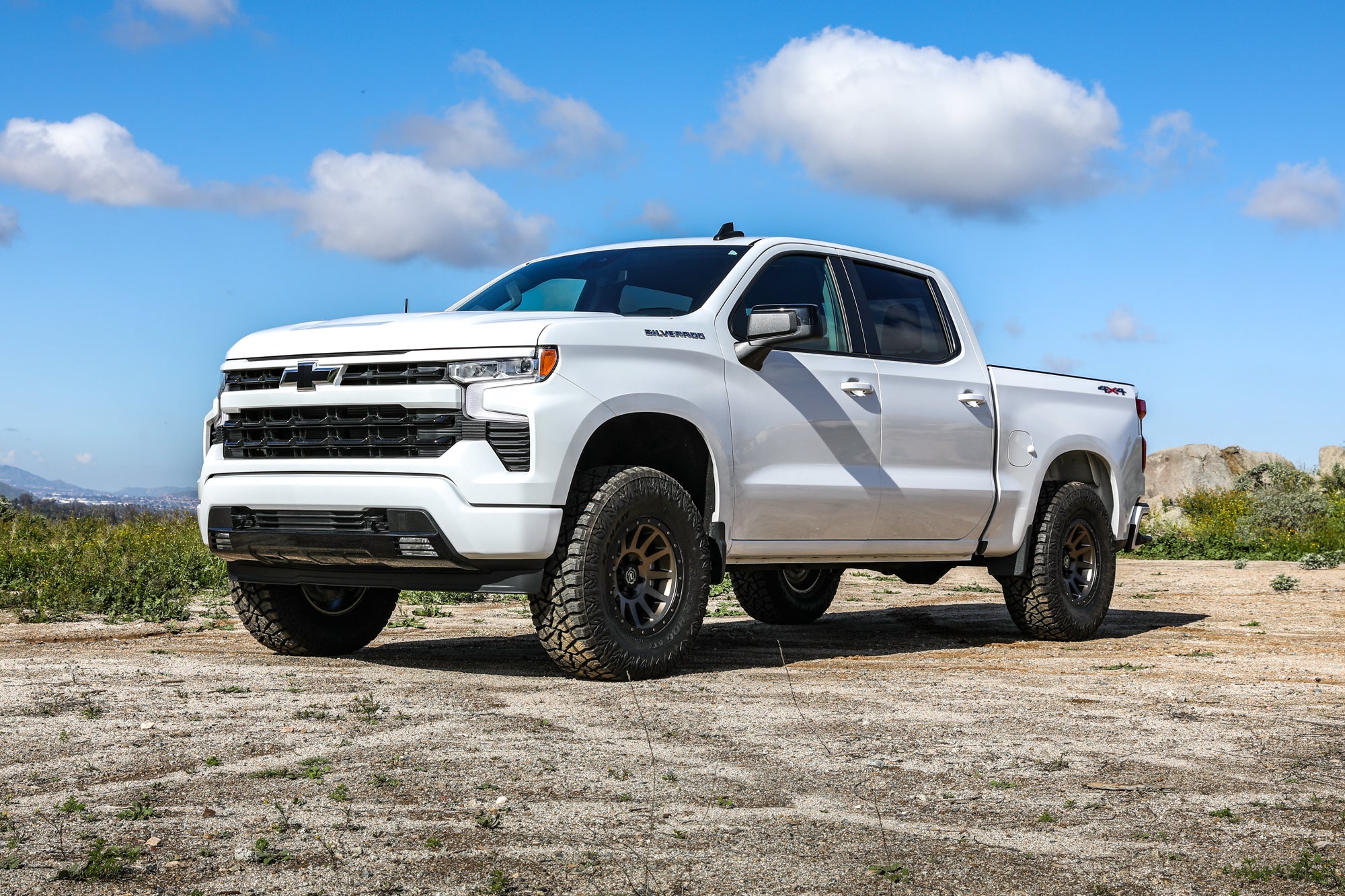

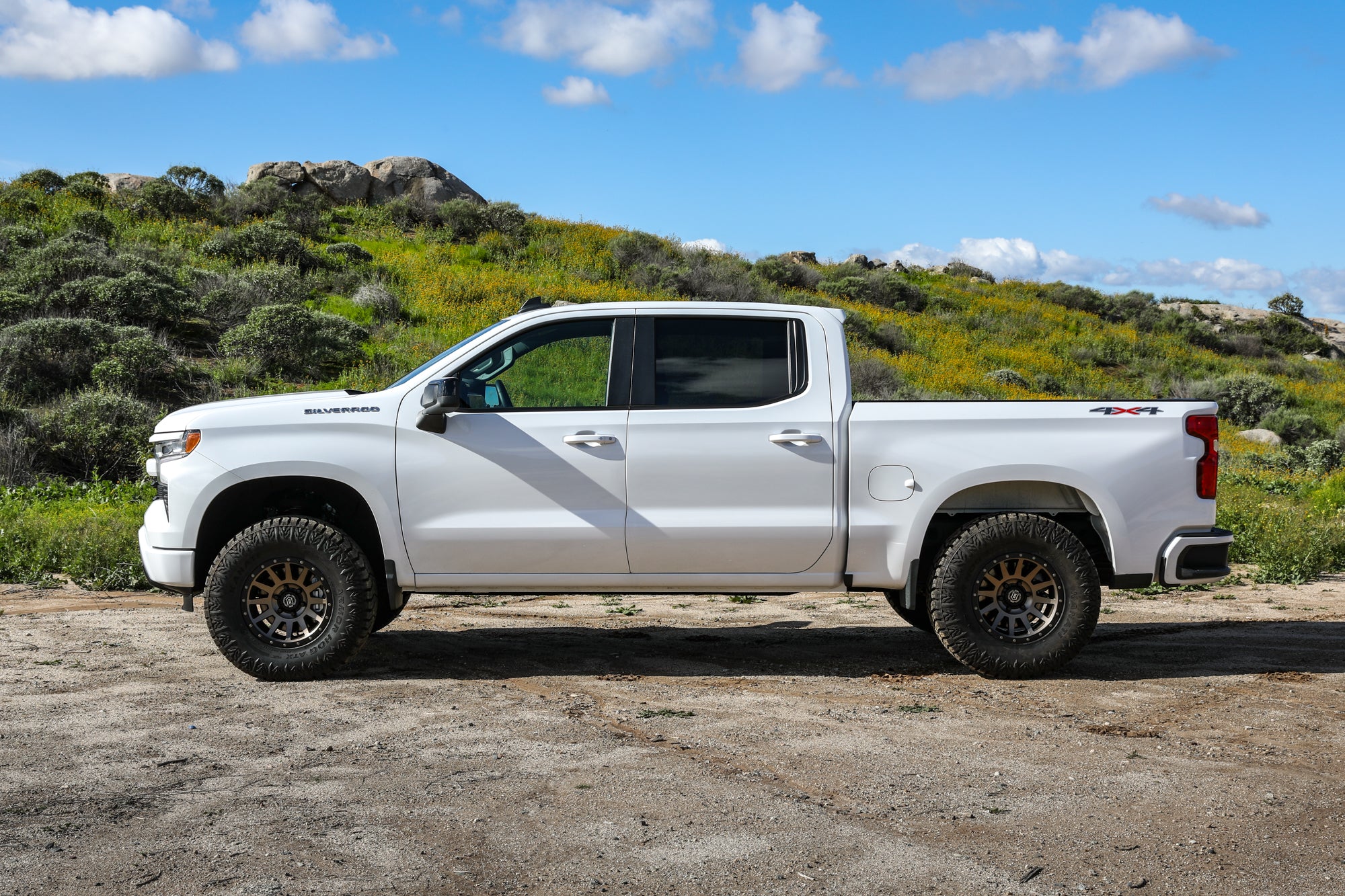

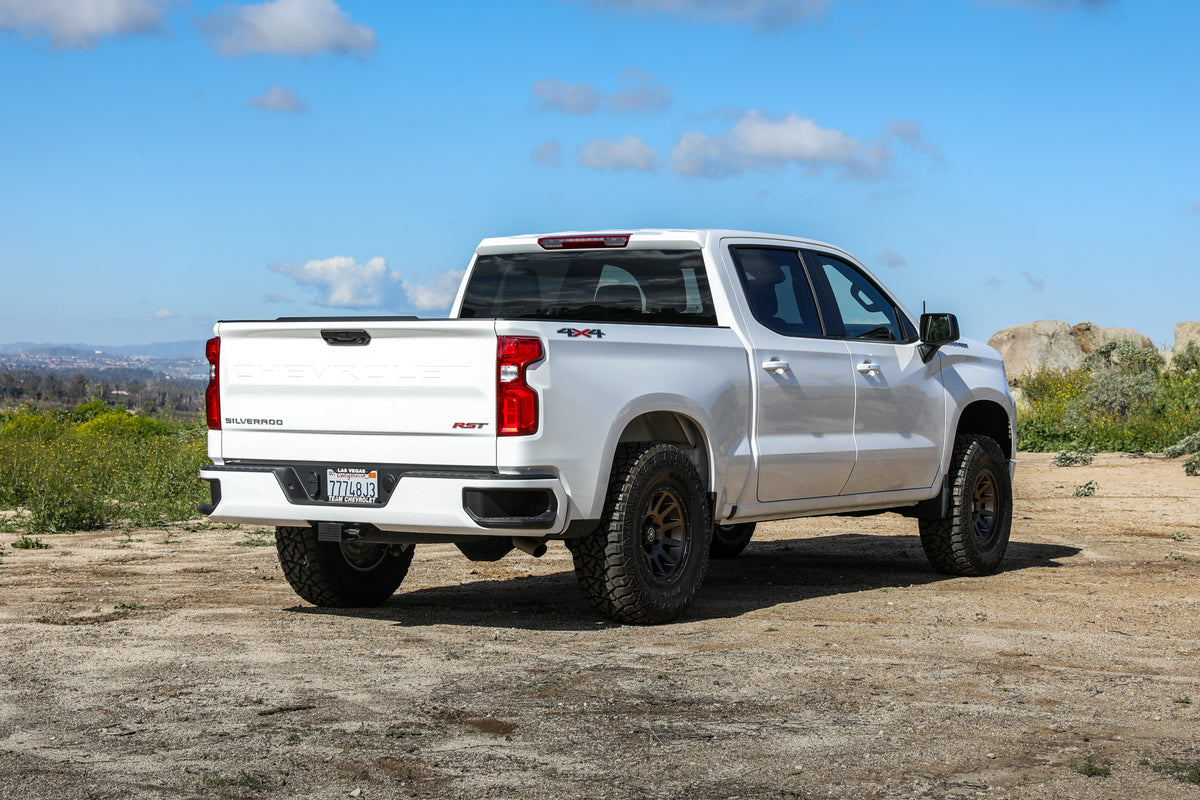

2019-2023 GM 1500 Front 2.38-3.75 Inch Lift 2.5 Exp Coilover Icon Vehicle Dynamics

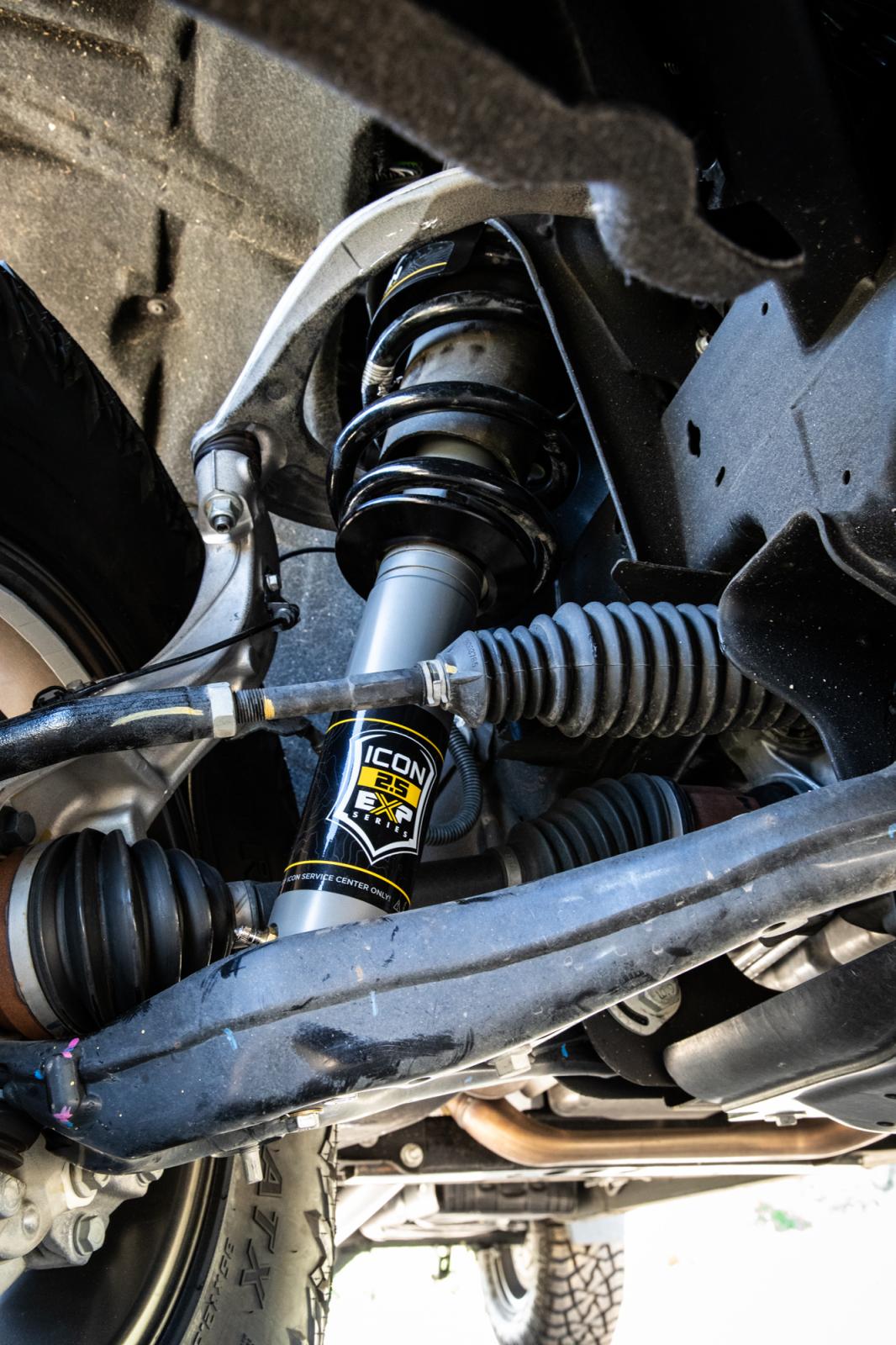

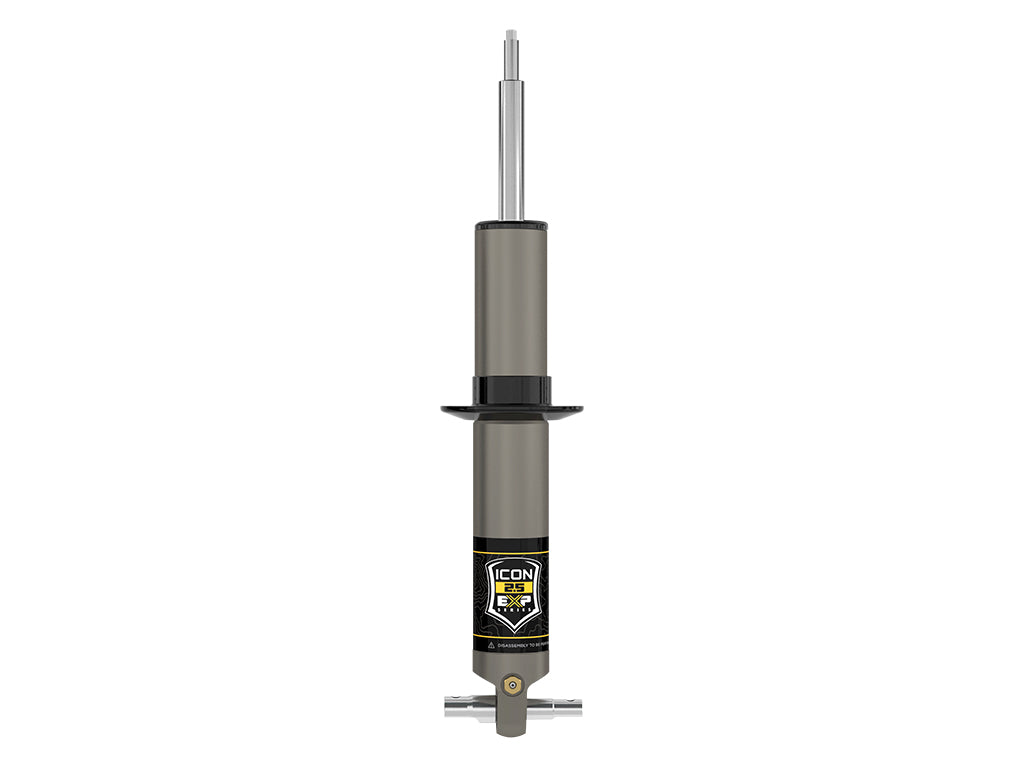

EXP Series for the 2019-2023 GM 1500 is based on ICON's proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion.

The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation.

• The 6061-billet aluminum coil spring seat is CNC machined to fit the truck's OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 2.375 Inch to 3.75 Inch of lift over stock.
• EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the 2019-2023 GM 1500 in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
• Vehicle specific design for the 2019-2023 GM 1500 trucks
• Adjustable ride heights from 2.375-3.75 Inch of front lift over stock with the use of snap ring
• Utilizes factory coils
• 2.5 Aluminum Series Shock with Internal Reservoir
• CNC machined 6061 aluminum components with a black anodize finish
• PTFE lined bearings for extended longevity and minimal deflection
• Inverted shaft up design featuring 7/8 Inch diameter, induction hardened, chrome plated shaft
• One-piece impact extruded aluminum hard anodized cylinders offer excellent corrosion resistance and consistent finish
• 100 Percent Bolt-on - no cutting or welding necessary for installation
• Fully rebuildable and re-tunable

• Material: Aluminum, Steel
• Active Or Passive Suspension: Passive
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Adjustable Ride Height: Yes
• Assembled: No
• Body Diameter: 2.5 Inch
• Coil Spring Included: No
• Coil Spring InsulatorS Included: No
• Compressed Length: 16.75
• Cylinder Color: Gray
• Cylinder Finish: Hard Anodized
• Cylinder Material: Aluminum
• Cylinder Outside Diameter: 2.5
• Damping Type: Oil
• Dust Shield Included: No
• Extended Length: 22.11
• Gas Charged: Yes
• Grade Type: Performance
• Includes Bump Stop: No
• Internal Construction Type: Single Tube
• Lower Mount Type: Bar Pin
• Maximum Lift: 3.75 Inch
• Maximum Ride Height Raising Distance: 3.75
• Minimum Lift: 2.375 Inch
• Remote Reservoir: No
• Reservoir Style: Internal
• Self Leveling: No
• Service Parts: 252010 - 2.5 Ifp Rebuild Kit
• Shaft Diameter: 0.875
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Flat On Bar Pin
• Shock Absorber Rod End Measuring Point: Shoulder Of Stem
• Travel Length: 5.37
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive
