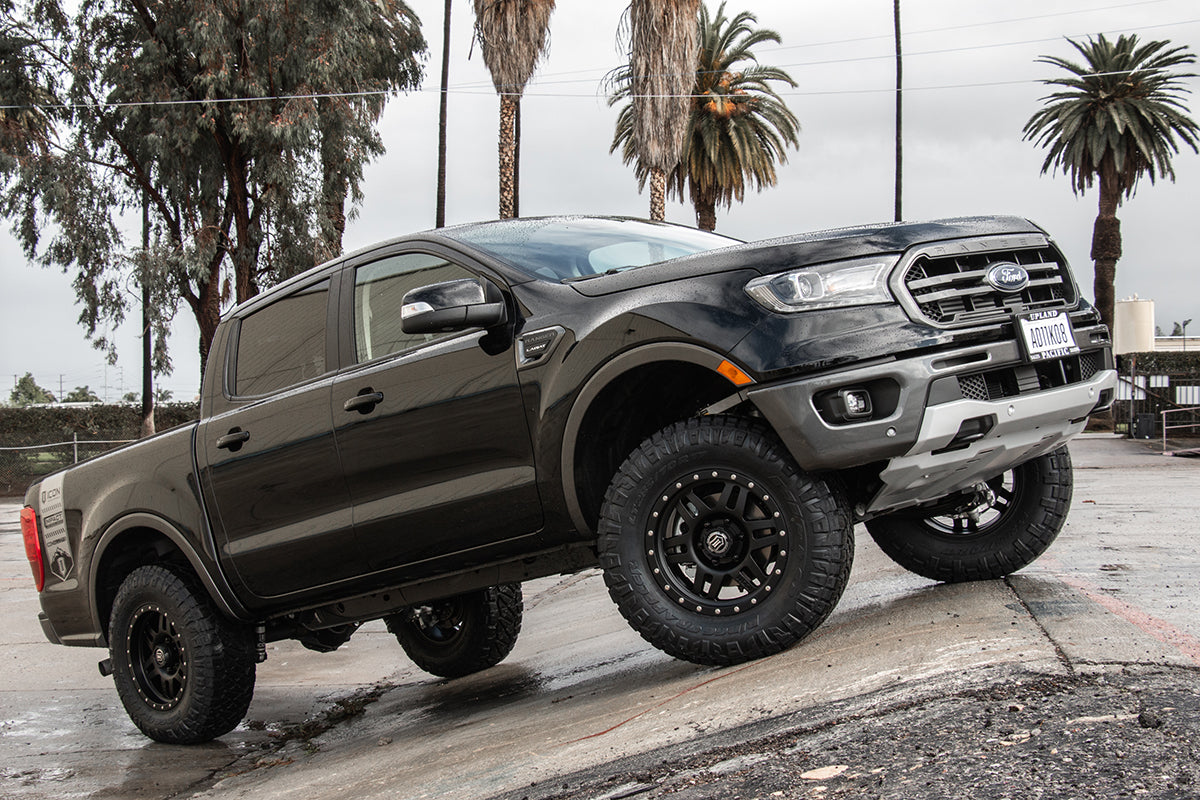

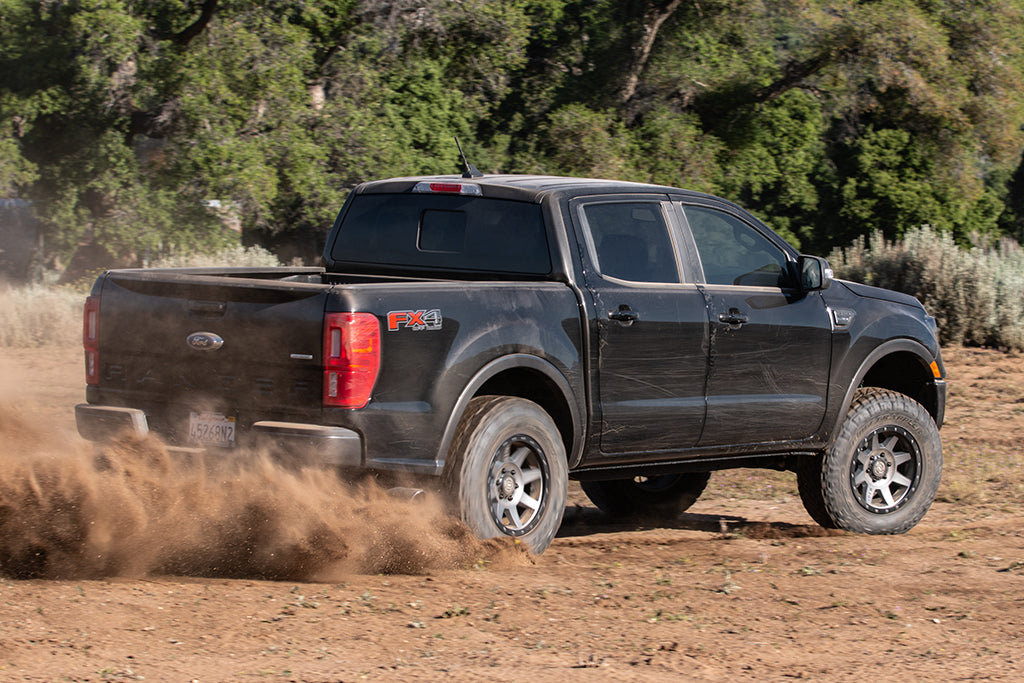

2019-2023 Ford Ranger 0-3.5 Inch Lift Stage 1 Suspension System Icon Vehicle Dynamics
FRDK_K93201
Sale price
$2,057.79 USD
Regular price
$2,160.68 USD
Description
ICON Vehicle Dynamics 2019-2023 Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

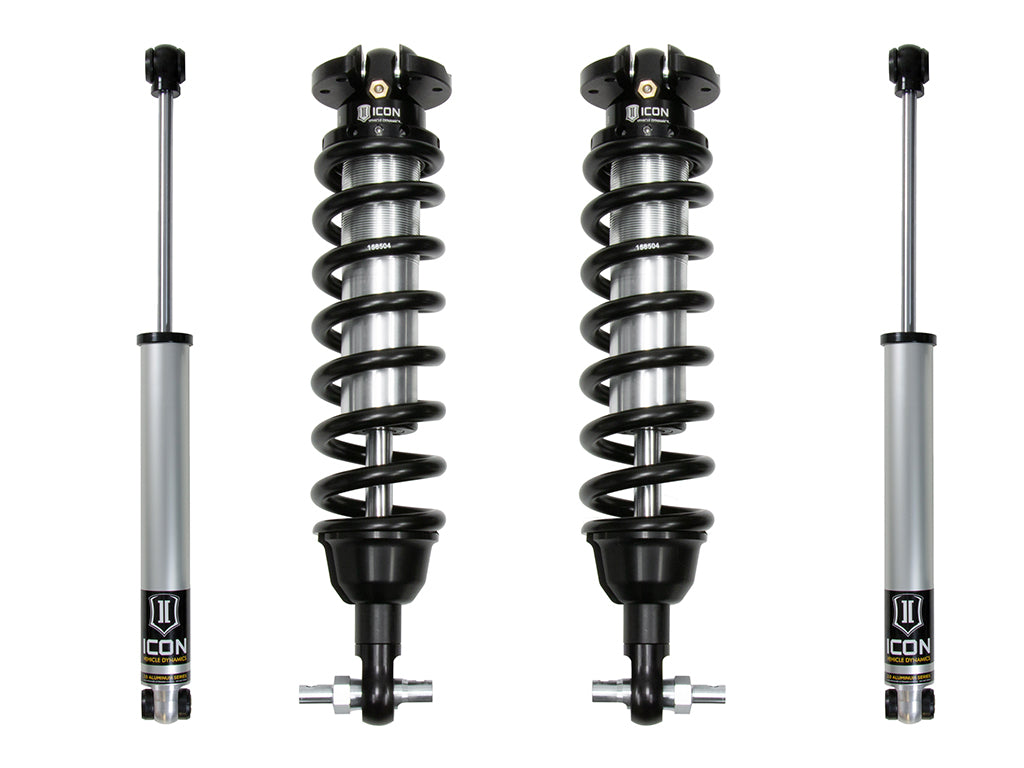

With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform's suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle Inchfeel Inch through the range of travel.
These coilovers are also height adjustable from 0-3.5 Inch allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.
The ICON Vehicle Dynamics 2019-2023 Ford Ranger Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Features and Benefits:- Height-adjustable coilovers provide a range of 0-3.5 Inch of front lift height
- Fits 2WD & 4WD applications
- Increased lift height allows for fitment of larger and more aggressive tires
- Up to 25 Percent increase in front wheel travel over stock
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- Corrosion resistant anodized shock body with 5/8 shaft (2.0 Aluminum Series shocks)
- Corrosion resistant CAD plated shock body with 7/8 shaft (2.5 Series shocks)
- FK Rod End bearings provide extended longevity and minimal deflection
- Shocks are fully rebuildable and revalvable
- Direct bolt-in design makes for a simple and straightforward installation
- Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
- Bushings Included: Yes
- Coils Quantity Front: 2.0
- Dual Rate Coil Springs: No
- Grade Type: Performance
- Maximum Lift: 3.5 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33 Inchx11.25 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
- Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 6.00 Inch Backspace / 25mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 198001 - Billet Spanner Wrench Kit, 191205 - Foam Bump Stop Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 614700 - 2.0 Shock Boot Kit (Each), 198000 - 2 Pin Coilover Spanner Wrench Kit
Specifications:
| Country of Origin | USA |
| Sold As | Each |
| UPC | 840103420448 |
| Availability | Available |
| Location | Front and Rear |
| Universal | No |
