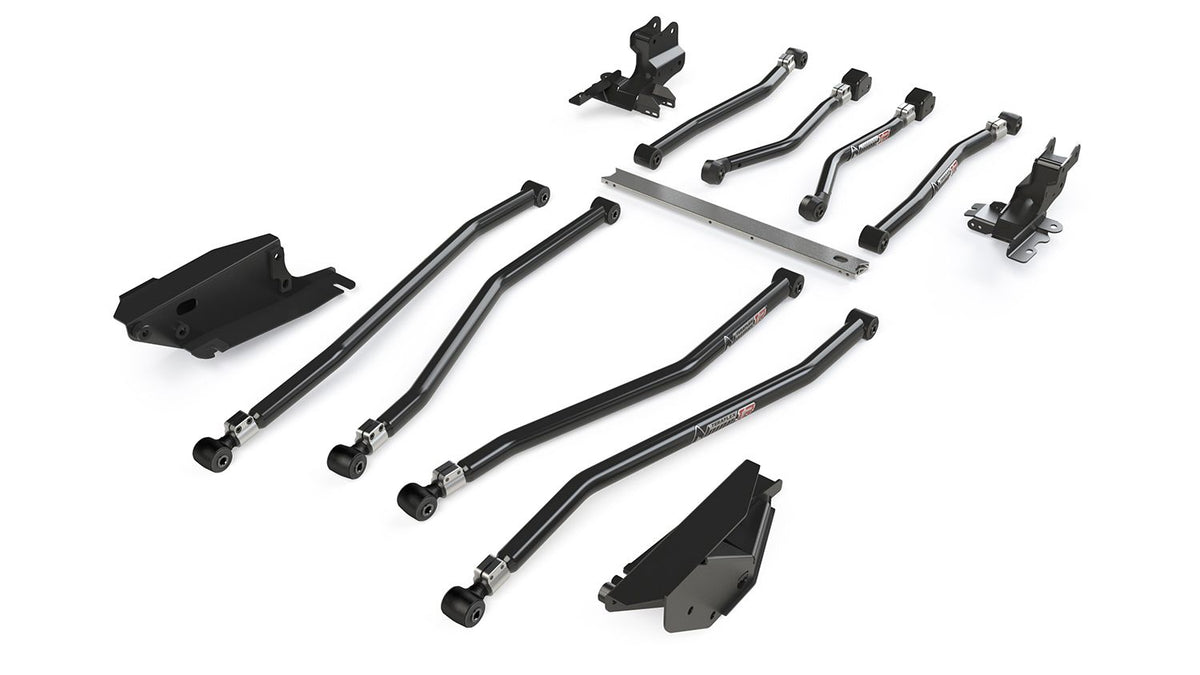

20-Up Jeep Gladiator Alpine IR Long Arm & Bracket Kit 8-Arm 3-6 Inch Lift TeraFlex
FNNT_1318010
$3,899.94 USD
Description
TeraFlex JT: Alpine IR Long Arms and Long Arm Brackets provide complete alignment adjustability and dependability for maximum performance on JT Gladiator models with 3-6 Inch Lifts.
Our innovative, maintenance-free IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping to improve on- and off-road ride quality and performance.
CAD-engineered TeraFlex JT: Long Arm Brackets are designed for maximum strength. By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance. Front Long Arm Suspension Crossmember provides additional strength.
Can be added to any existing suspension lift.
Includes:
- Alpine IR Long Arm Kit - 8-Arm (# 1318005):
- Arm Pair - Front Upper (# 1310520)
- Arm Pair - Front Lower (# 1310500)
- Arm Pair - Rear Upper (# 1418550)
- Arm Pair - Rear Lower (# 1418560)
- Long Arm Bracket Kit (# 1968000):
- Brackets - Front
- Brackets - Rear
- Suspension Crossmember - Front
- All necessary hardware
Fitment:
- JT Gladiator (pickup)
Specs:
- Lift Height: 3-6 Inch
Control Arm Specs:
- JL / JT: Alpine IR Long Arm Pair - Front Upper (# 1310520):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 20-1/4 Inch
- Min. Length: 27-3/4 Inch
- Max. Length: 28-7/8 Inch
- Bolt - Axle: 12mm
- Bolt - Frame: 14mm
- IR Bushing - Axle: 611018
- IR Bushing - Frame: 611016
- JL / JT: Alpine IR Long Arm Pair - Front Lower (# 1310500):
- Tube Diameter & Wall: 50mm x 5mm
- Factory Length: 24 Inch
- Min. Length: 30-7/8 Inch
- Max. Length: 32 Inch
- Bolt - Both: 16mm
- IR Bushing - Both: 611020
- JT: Alpine IR Long Arm Pair - Rear Upper (# 1418550):
- Tube Diameter & Wall: 50mm x 5mm
- Factory Length: 16-3/8 Inch
- Min. Length: 43-1/2 Inch
- Max. Length: 44-5/8 Inch
- Bolt - Both: 16mm
- IR Bushing - Both: 611020
- JT: Alpine IR Long Arm Pair - Rear Lower (# 1418560):
- Tube Diameter & Wall: 50mm x 5mm
- Factory Length: 23-3/4 Inch
- Min. Length: 47-3/4 Inch
- Max. Length: 49 Inch
- Bolt - Both: 16mm
- IR Bushing - Both: 611020
Specifications:
| Country of Origin | USA |
| Sold As | Kit |
| UPC | 843885056393 |
| Availability | Available |
| Universal | No |
| Harmonized Tariff Code | 8708.80.65.9 |
| NAFTA | B |
