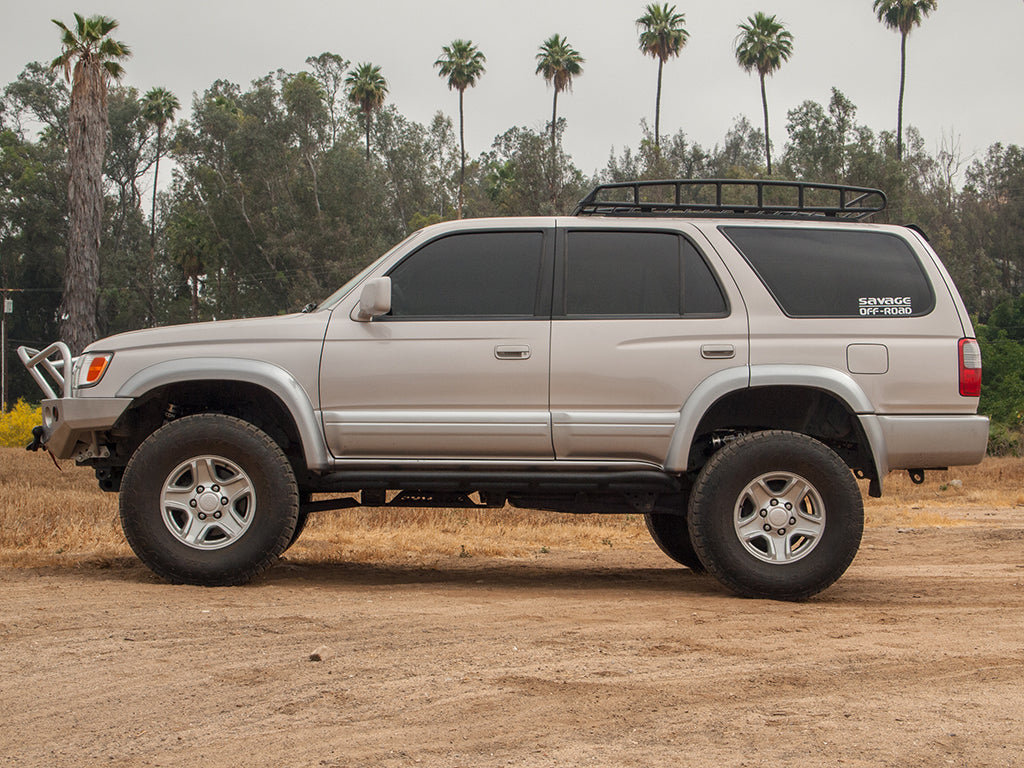

1996-2002 Toyota 4Runner 0-3 Inch Lift Stage 1 Suspension System Icon Vehicle Dynamics

The 1996-2002 Toyota 4Runner was an excellent vehicle off the showroom floor decades ago, and Toyota's reputation for reliability and performance continues to draw the attention of both hardcore off-road enthusiasts and newcomers to the Inch3rd Gen Inch platform to this day. ICON engineers have assessed the 3rd Gen 4Runner front to back and developed components that work together to extract maximum performance out of the vehicle.

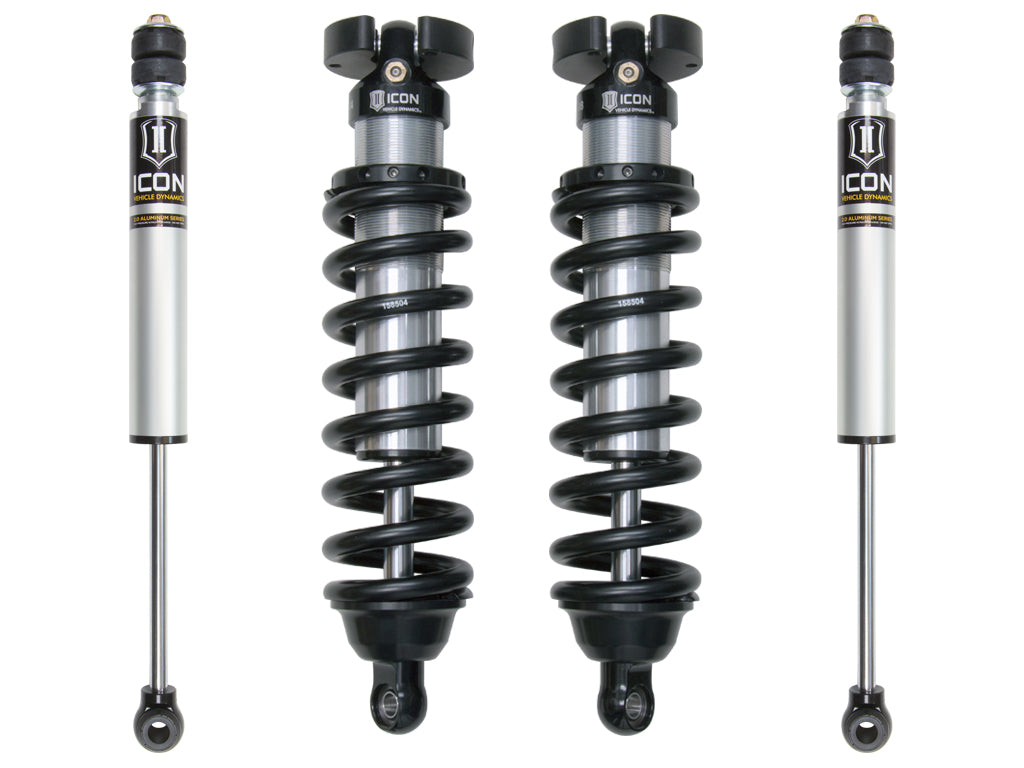

With the ICON Stage 1 suspension system on and off-road performance is significantly improved with 2.5 VS Series coilovers and 2.0 Aluminum Series rear shocks. These components feature ICON engineered coil springs, vehicle-specific shock valving, FK Rod End bearings, and high-quality CNC-machined components for superior damping and control.

Fully serviceable shock absorbers mean that these components can be rebuilt or re-valved as necessary, providing a long service life and the ability to customize the ride quality for unique vehicle setups. The 2.5 VS Series coilovers are height adjustable from 0-3 Inch of lift, allowing the use of larger, more aggressive wheel and tire combinations.

ICON Vehicle Dynamics' 1996-2002 4Runner Stage 1 suspension system is an excellent choice for those drivers looking to enhance the handling characteristics of their 3rd Gen on the road while increasing overall performance in the dirt.

• Increased wheel travel and ride quality over stock
• Decreased body roll
• Vehicle-specific tuned front and rear shocks provide superior damping and control
• Coilovers are adjustable from 0-3 Inch of lift height
• Shocks are fully rebuildable and revalveable
• Corrosion resistant CAD plated coilover shock body with 7/8 Inch shaft
• FK Rod End bearings for extended longevity and minimal deflection
• CNC machined 6061 aircraft-grade aluminum components
• Bolt-on design makes for straightforward install

• Active Or Passive Suspension: Passive
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Bushings Included: Yes
• Coil Quantity Front: 2.0
• Coils Quantity Front: 2.0
• Front Reservoir Style: Internal
• Front Shock Body Diameter: 2.5
• Front Spring Rate Type: Linear
• Grade Type: Performance
• Maximum Lift: 3.0 Inch
• Maximum Lift Front: 3.0 Inch
• Minimum Lift Front: 0.0 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Emulsion
• Rear Shock Body Diameter: 2.0
• Recommended Aftermarket Tires: 33 Inch X 11.25 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
• Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Spring Rate: 650.0
• Add On Part: 53015 - 96-02 4Runner 1 Inch Rear Coil Spring Kit, 58500DJ - 96-04 Tacoma/96-02 4RNR Billet UCA Dj Kit, 614700 - 2.0 Shock Boot Kit (Each), 198000 - 2 Pin Coilover Spanner Wrench Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 158508 - Coil Spring 1400.0300.0700 Black, 58400DJ - 96-04 Tacoma/96-02 4RNR Tubular UCA Dj Kit, 51045 - Toyota .25 Inch Bump Stop Spacer Kit, 198001 - Billet Spanner Wrench Kit
