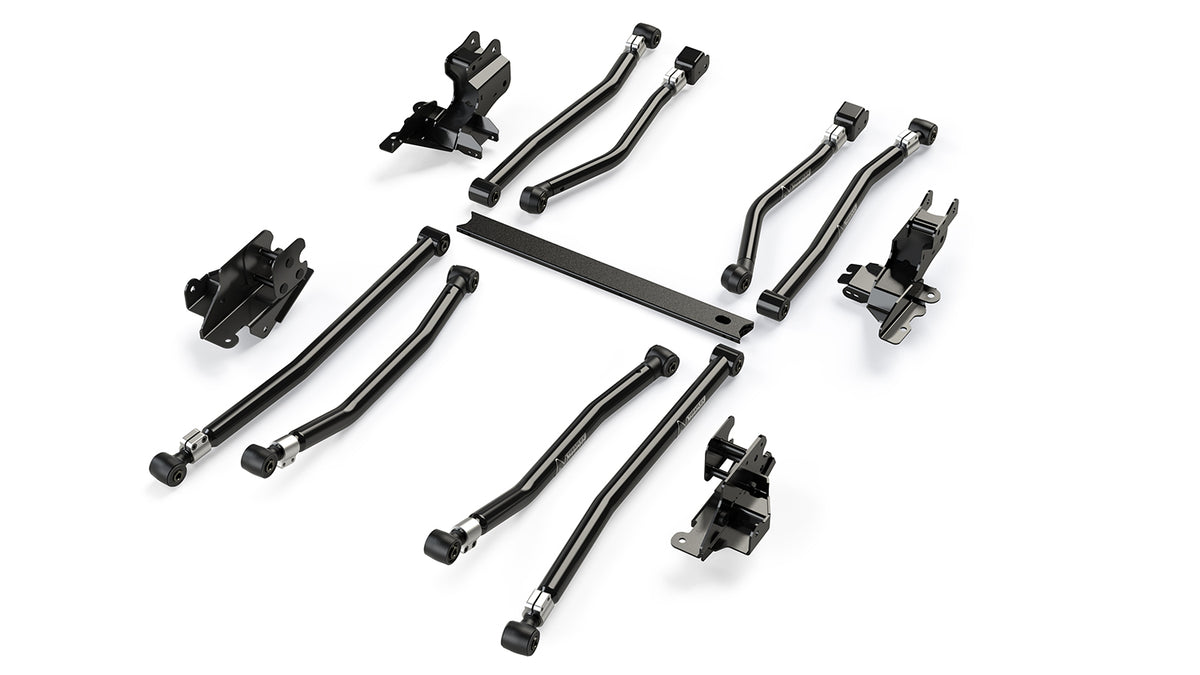

18-Up Wrangler JL 4 Door Alpine Long Arm & Bracket Kit 8-Arm 3-6 Inch Lift TeraFlex
FNNT_1316010
$3,016.97 USD
Description
TeraFlex JL: Alpine Long Arms and Long Arm Brackets provide complete alignment adjustability and dependability for maximum performance on JL Wrangler/Unlimited models with 3-6 Inch Lifts.
High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.
CAD-engineered TeraFlex JL: Long Arm Brackets are designed for maximum strength. By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance. Front Long Arm Suspension Crossmember provides additional strength.
Can be added to any existing suspension lift.
Includes:
- Alpine Long Arm Kit - 8-Arm (# 1316005):
- Arm Pair - Front Upper (# 1316520)
- Arm Pair - Front Lower (# 1316500)
- Arm Pair - Rear Upper (# 1316560)
- Arm Pair - Rear Lower (# 1316540)
- Long Arm Bracket Kit (# 1958000):
- Brackets - Front
- Brackets - Rear
- Suspension Crossmember - Front
- All necessary hardware
Fitment:
- JL Wrangler Unlimited (4-door)
Specs:
- Lift Height: 3-6 Inch
- Does Not fit 4-door JL Wrangler Unlimited 4xe hybrid models.
Control Arm Specs:
- JL / JT: Alpine Long Arm Pair - Front Upper (# 1316520):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 20-1/4 Inch
- Min. Length: 27-3/4 Inch
- Max. Length: 28-7/8 Inch
- Bolt - Axle: 12mm
- Bolt - Frame: 14mm
- Bushing - Axle: OEM
- Bushing - Frame: 611012
- JL / JT: Alpine Long Arm Pair - Front Lower (# 1316500):
- Tube Diameter & Wall: 50mm x 5mm
- Factory Length: 24 Inch
- Min. Length: 30-7/8 Inch
- Max. Length: 32 Inch
- Bolt - Both: 16mm
- Bushing - Both: 09-01-201-001
- JL: Alpine Long Arm Pair - Rear Upper (# 1316560):
- Tube Diameter & Wall: 50mm x 5mm
- Factory Length: 17-3/8 Inch
- Min. Length: 32-3/4 Inch
- Max. Length: 33-3/4 Inch
- Bolt - Both: 14mm
- Bushing - Axle: 611012
- Bushing - Frame: 611011
- JL: Alpine Long Arm Pair - Rear Lower (# 1316540):
- Tube Diameter & Wall: 50mm x 5mm
- Factory Length: 19-3/4 Inch
- Min. Length: 36-1/4 Inch
- Max. Length: 37-3/8 Inch
- Bolt - Both: 14mm
- Bushing - Both: 611011
Specifications:
| Country of Origin | USA |
| Sold As | Kit |
| UPC | 843885046783 |
| Availability | Available |
| Universal | No |
| Harmonized Tariff Code | 8708.80 |
| NAFTA | B |
| Doors | 4 Door |
