18-Up Jeep JL 2.5 Inch Stage 6 Suspension System Icon Vehicle Dynamics
FRDK_K22016
Sale price
$4,525.24 USD
Regular price
$4,751.51 USD
Description

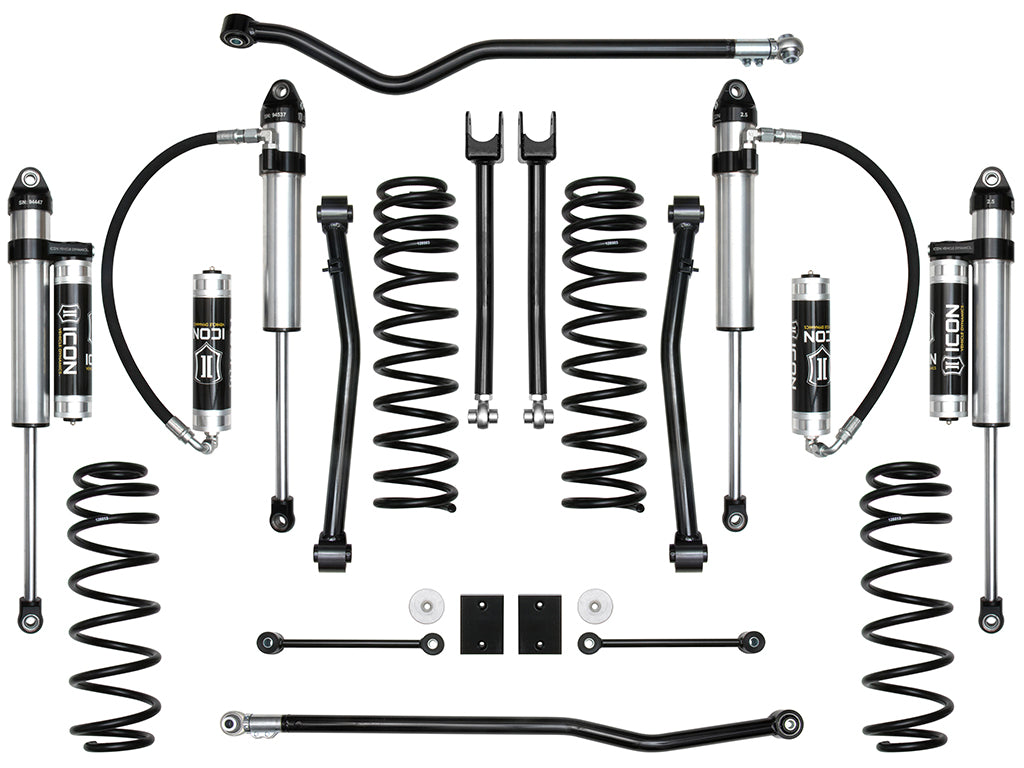

The ICON Vehicle Dynamics Stage 6 2.5 Inch Suspension System for the 2018-UP Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. This Stage 6 system includes 2.5 Inch lift dual rate coil springs, upgraded 2.5 Aluminum Series remote reservoir shocks with vehicle specific valving, tubular steel adjustable front upper links, fixed front lower links, adjustable front and rear track bars, bump stop spacers, sway bar links, and all necessary hardware to complete the installation.
With this combination of components, ICON was able to increase wheel travel numbers by over 30 Percent (3 Inch front, 2 inch rear), redefining the potential of the 2018-UP JL. The front lower links included with this system are constructed from thick wall steel tubing, provide increased castor numbers, and feature dual durometer bushings for noise free operation, maximum articulation, and minimal bind.
The Stage 6 system allows for fitment of 35 Inch tires when used with ICON's recommended wheel specifications. For users looking to install 37 Inch tires, an optional bump stop spacer kit (PN: 22029) is available.
Features and Benefits:- 2.5 Inch lift height
- Fits 35 Inch tires (37 Inch with optional bump stop spacer kit PN: 22029)
- 3 Inch front, 2 inch rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Dual rate coil springs with lifetime guarantee against sagging/breakage
- 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Tubular steel link arms with dual durometer bushings for noise free performance, maximum articulation, and minimal bind
- 100 Percent bolt-on system makes for an easy install
- InchICON 1K Inch tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Bushings Included: Yes
- Coils Quantity Front: 2.0
- Coils Quantity Rear: 2.0
- Grade Type: Performance
- Maximum Lift: 2.5 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (37 Inch X 12.50 Inch With Optional Bump Stop Spacer Kit Part # 22029)
- Recommended Aftermarket Wheels: (Non-Rubicon) Icon Alloys - 20x9 W/ 4.5 Inch Backspace / -12mm Offset, (Rubicon) Icon Alloys - 17x8.5 W/ 4.75 Inch Backspace / 0mm Offset, (Rubicon) Icon Alloys - 20x9 W/ 4.5 Inch Backspace / -12mm Offset, (Rubicon) Icon Alloys - 18x9 W/ 4.5 Inch Backspace / -12mm Offset, (Non-Rubicon) Icon Alloys - 17x8.5 W/ 4.5 Inch Backspace / -6mm Offset, (Non-Rubicon) Icon Alloys - 18x9 W/ 4.5 Inch Backspace / -12mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 22029 - 18-Up JL Extended Bump Stop Spacer Kit, 22042 - 20-Up JT / 18-Up JL / 07-18 JK Front Hyd Bump Stop Kit, 22038 - 18-23 JL/20-23 JT 2.0 Centerline Stabilizer Kit, 22061 - 18-23 JL/20-23 JT Front Sway Bar Link Kit, 252012 - -4 To -10 Hose Shield Kit, 191014 - .25 Inch Collar Spanner Pin Wrench
Specifications:
| Country of Origin | USA |
| Sold As | Each |
| UPC | 840103415826 |
| Availability | Available |
| Location | Front and Rear |
| Universal | No |
