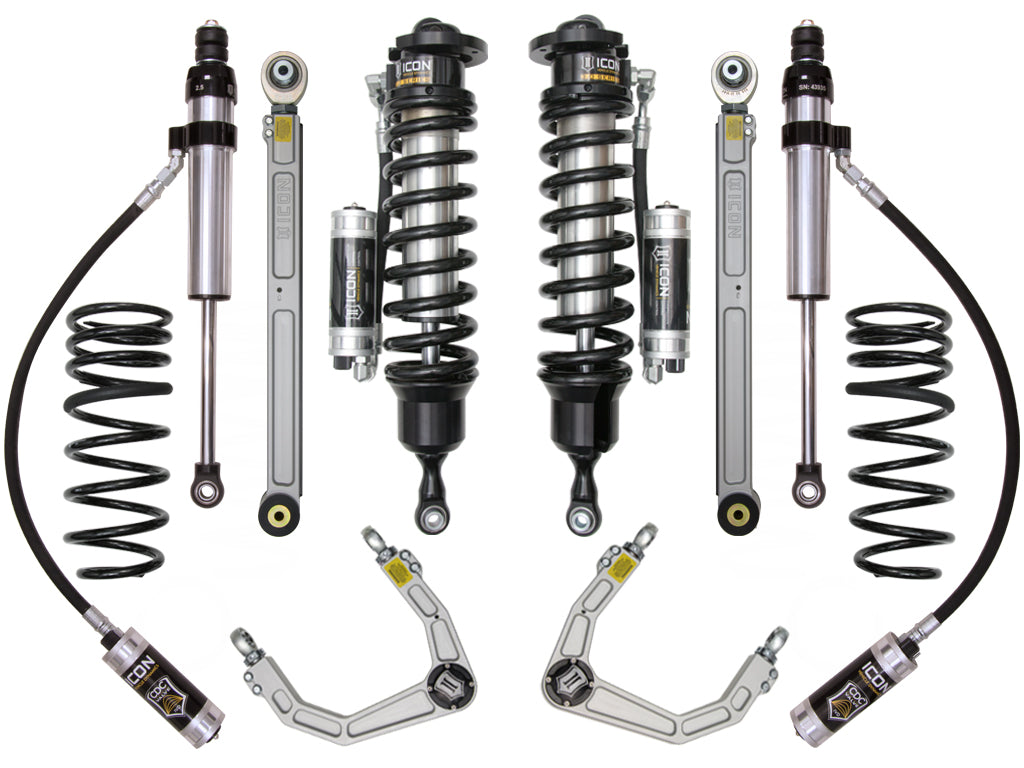

08-Up Land Cruiser 200 Series 2.5-3.5 Inch Stage 6 Suspension System Icon Vehicle Dynamics
FRDK_K53076
Sale price
$8,601.16 USD
Regular price
$9,031.22 USD
Description
The 200 Series Toyota Land Cruiser is a luxurious vehicle packed with Inchall the bells and whistles Inch, but underneath all of the sophistication it is still a very capable vehicle that sees heavy use both on and off-road worldwide. While the 200 Series has exceptional ride characteristics in stock form, it is clear that the suspension is in need of a serious upgrade if the vehicle is to serve any measurable amount of time in the dirt.
ICON Vehicle Dynamics has addressed this need for a comprehensive suspension solution and is proud to re-introduce several suspension systems that drastically increase the overall ability of the 2008-UP Toyota Land Cruiser.
Features and Benefits:
- Increased wheel travel and ride quality over stock
- Improved vehicle dynamics and decreased body roll
- Height adjustable coilovers provide 2.5-3.5 Inch of lift height
- ICON engineered dual rate rear coil springs
- Billet Aluminum rear lower links offer on-vehicle pinion angle adjustment
- Vehicle-specific tuned front and rear shocks provide superior damping and control
- Corrosion resistant CAD plated coilover shock bodies with 1 inch shafts
- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- CDCV technology allows for quick and easy compression damping adjustment without the need for tools
- Shocks are fully rebuildable and revalveable
- Bolt-on design means no cutting or welding necessary for install
Details
- Bushings Included: Yes
- Coils Quantity Front: 2.0
- Coils Quantity Rear: 2.0
- Grade Type: Performance
- Maximum Lift: 3.5 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 34 Inch X 10.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
- Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 6.00 Inch Backspace / 25mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset, Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 191010 - Icon Raptor 3.0 Coil Wrap W/Logo Pair, 191014 - .25 Inch Collar Spanner Pin Wrench, 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit
Specifications:
| Country of Origin | USA |
| Sold As | Each |
| UPC | 840103417141 |
| Availability | Available |
| Universal | No |
