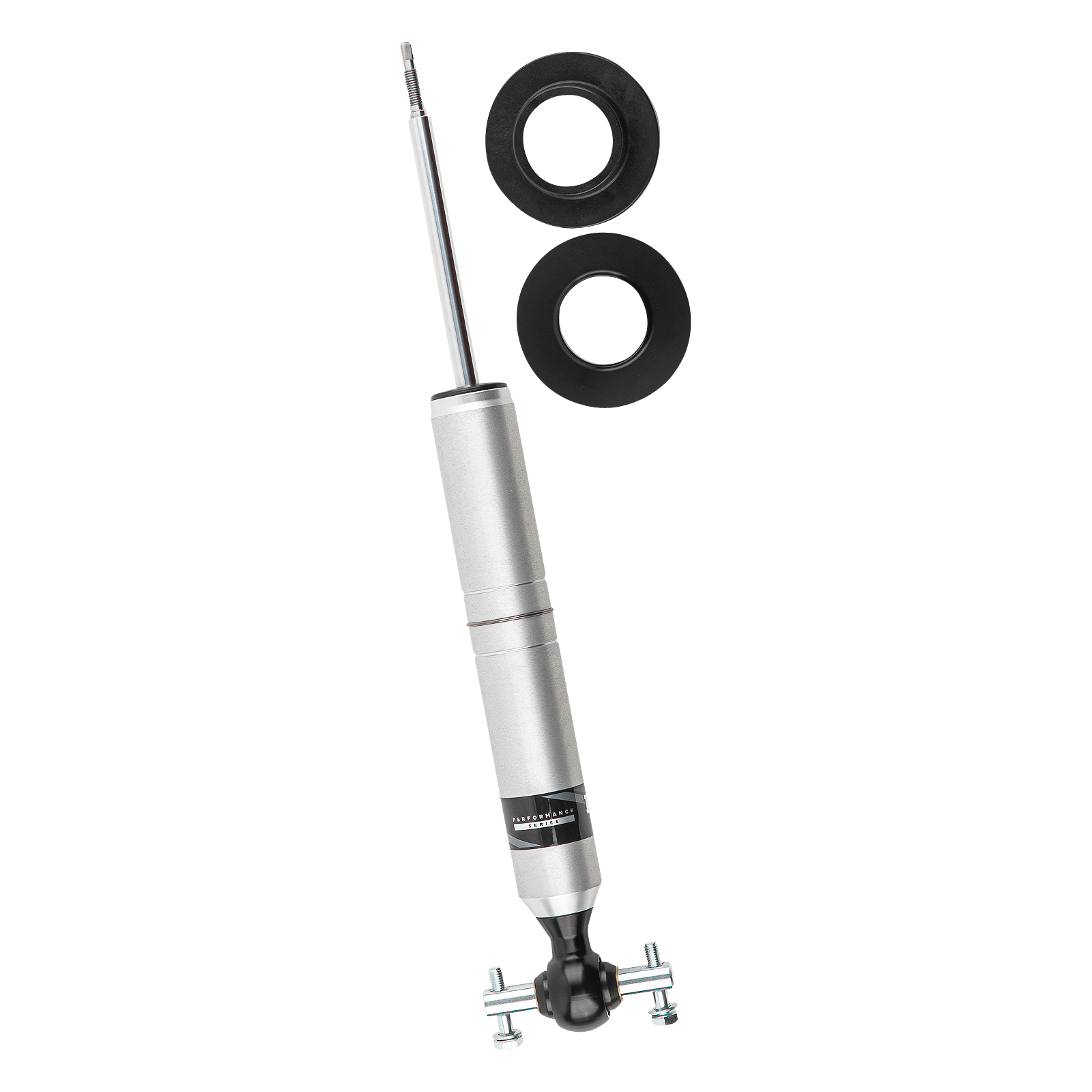

07-10 Silverado/Sierra 1500 Front Coil Over Snap Ring Performance Series 2.0 Internal Floating Piston 4.3 Inch 0-2 Inch Lift Fox Offroad Shocks
BKTK_985-62-004
$314.95 USD
Description
Our Performance Series 2.0 Coil-Over Snap Ring IFP shock is a bolt-on solution, loaded with a long list of Features that set it apart.
This includes a new custom-molded spring seat, allowing you to reuse your stock spring and mounting hardware, while providing excellent on- and off-road performance at an affordable price point.
The precision, impact-extruded aluminum Body is lightweight and rust resistant.
Inside the shock is an internal nitrogen-charged gas Reservoir, contained by an internal floating Piston (IFP) which separates the charged gas from the shock oil.
The IFP eliminates oil from mixing with the nitrogen as is possible with the stock twin tube shocks, allowing maximum performance from the factory-tuned precision Valving. Three predetermined preload settings allow a choice of 0 inch, 1 inch or 2 inch of lift.
The easy-to-install Performance Series 2.0 Coil-Over Snap Ring IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
Part Number
985-62-004
Features
- Includes New Spring Seat While Reusing Stock Spring And Mounting Hardware, Performance Tuned For Vehicle Specific Application, Aluminum Body Dissipates Heat Faster Than Steel, IFP Separates Oil From High-Pressure Nitrogen Gas
- Series Performance
- Travel 4.34
- Front Lift Height 0-2
- Body 2.0 inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece Body resists rust over time
- Body Plating Clear-anodized for a durable finish
- Components Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft 5/8 inch hard chrome plated heat-treated alloy steel
- Piston Race-developed high-flow Piston design
- Valving Application specific Valving to maximize performance
- Seals Redundant sealing pack system main seal, wiper seal, scraper seal
- Bearings Large diameter, heavy-duty spherical
- Extended Length 19.79
- Compressed Length 15.46
- Top Mount Stem
- Bottom Mount Bar Pin
- Fitment Notes Spring not included Reuses stock mounting hardware
Specifications:
| Country of Origin | USA |
| Sold As | Each |
| Shock Type | Snap Ring Coil-Over |
| UPC | 711745603080 |
| Availability | Available |
| Location | Front |
| Universal | No |
| Collapsed Length | 15.46 |
| Extended Length | 19.79 |
| Shock Mount | Stem/Bar Pin |
| Sub Brand | Fox Offroad Shocks |
| Travel/Length | 4.34 |
| Internal Part Number | 985-62-004 |
