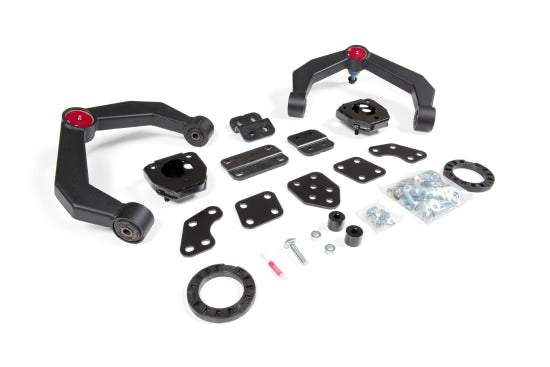

06-11 Dodge RAM 1500 4WD 2.5 Inch Adventure Series Leveling Kit Zone Offroad
FQMS_ZOND48
$678.90 USD
Description
Level out your RAM 1500 the right way with Zone Offroad. In addition to these steel fabricated top mounted strut spacers and preload spacers designed for 2.5 Inch of lift, these kits address the limitations of the factory upper ball joint (maxed out with a leveling kit installed which will lead to premature wear) by upgrading to adventure series upper control arms (UCAs).
These fully boxed and welded UCAs offer superior strength and performance and use an indexed ball joint cup designed for more droop travel. Also included are differential relocation brackets to correct CV operating angles.
Quick Specs:
- Front Lift Height 2.5 Inch
- Rear Lift Height -
- Front Lift Method Upper Control Arms
- Lift Type Leveling Kit
- Wheel Size 17 x 9
- Back Spacing 4.75 Inch
- Max Tire Size 35 x 12.5
In The Box:
- All Necessary Mounting / Installation Hardware
- Differential Relocation Brackets
- Strut Spacer - Front
- Upper Control Arms
Features:
- Combination upper strut spacer and preload spacer to ensure proper lift height
- Upper strut spacer is pitched, offset, and rotated to ensure proper fitment and positioning with the factory strut
- Powder-coated steel upper strut spacers for long lasting durability
- Fully welded, heavy duty upper control arms that dwarf the factory arms.
- CNC-machined UCA bushing and ball joint cups.
- OE rubber bushings and greasable factory style ball joints for quiet, reliable, and low maintenance operation.
- Improved UCA range of motion compared to stock arms
- Full 2 Inch differential drop included to achieve proper CV angles at ride height and to eliminate Inchlobing Inch of the CVs at full droop
- UCA ball joint position adjusted to keep arm in a neutral position with 2-3 Inch of lift.
- UCAs utilize replaceable ball joints - replacements are readily available from most auto parts stores when needed many miles down the road.
- Can be installed as a 2 Inch or 2.5 Inch kit
- Avoids ball joint binding issue commonly known to occur on these models with spacer only type kits that use the factory UCAs
- Detailed, easy to follow installation instructions included
- Limited Lifetime Warranty
Kit Components:
- ZOND2300 06-11 Ram 1500 Diff Relocation Kit 1 711745598324
- ZOND2301 2006-2023 Ram 1500 4WD Adventure Series UCA Kit 1 711745598331
Specifications:
| Country of Origin | USA |
| Sold As | Kit |
| UPC | 810156363580 |
| Availability | Available |
| Universal | No |
| Drive | 4WD |
| Max Tire | 35x12.5 |
| Shocks Included | No |
